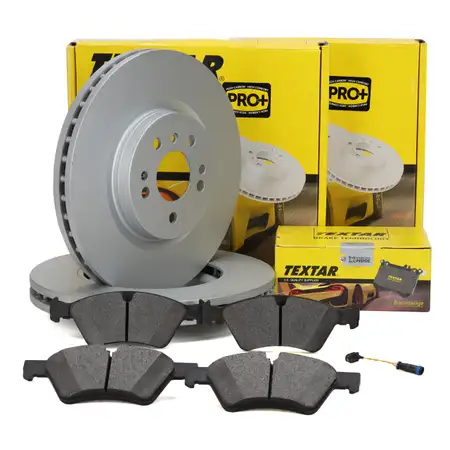

TEXTAR Brake Discs + Pads + Sensor for Mercedes M-Class W164, R-Class W251, V251 (Front)

TEXTAR Brake Discs + Pads + Sensor for Mercedes M-Class W164, R-Class W251, V251 (Front)

Item No.: PKT252W919
Manufacturer: TEXTAR, CARIPAR
part number: 92150605, 2392201, GBK 431

Items included:

2x Brake Disc Piece - TEXTAR 92150605
1x Brake Pad Set, disc brake Set - TEXTAR 2392201
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 431

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 330
Hole Arrangement/Number: 05/09
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 54,6
Brake Disc Thickness [mm]: 32
Minimum thickness [mm]: 29,4
Inner Diameter [mm]: 156,4
Machining: High-carbon
Weight [kg]: 11,8
Centering Diameter [mm]: 67
Wheel Bolt Bore Diameter [mm]: 15,3
Packaging length [cm]: 34,3
Packaging width [cm]: 34,3
Packaging height [cm]: 7,5

reference numbers - for comparison

ATE - 24.0132-0158.1 / 24013201581
ATE - 24.0332-0158.1 / 24033201581
BOSCH - 0 986 479 269 / 0986479269
BREMBO - 09.R104.11 / 09R10411
BREMBO - 59.E115.06 / 59E11506
ECORA - 4019722287558
FERODO - DDF1533C-1 / DDF1533C1
HELLA PAGID - 8DD 355 113-171 / 8DD355113171
HELLA PAGID - 8DD 355 128-581 / 8DD355128581
JURID - 562403JC-1 / 562403JC1
MERCEDES-BENZ - 164 421 0412 / 1644210412
MERCEDES-BENZ - 164 421 13 12 / 1644211312
MERCEDES-BENZ - A 164 421 0412 / A1644210412
MERCEDES-BENZ - A 164 421 0412 / A1644210412
MERCEDES-BENZ - A 164 421 1312 / A1644211312
MERCEDES-BENZ - A 164 421 1312 / A1644211312
RAICAM - RD00500
TEXTAR - 92150605
TRW - DF4471S
ZIMMERMANN - 400.3648.52 / 400364852
ZIMMERMANN - 400.3648.54 / 400364854
ZIMMERMANN - 400.3648.55 / 400364855
ZIMMERMANN - 400364820

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23922
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Thickness [mm]: 21
Width 1 [mm]: 193,3
Width 2 [mm]: 194,5
Height 1 [mm]: 69,8
Height 2 [mm]: 69,9
Brake System: Teves
Weight [kg]: 2,72

reference numbers - for comparison

ATE - 13.0460-7220.2 / 13046072202
ATE - 13.0470-7220.2 / 13047072202
BLUE PRINT - ADU174237
BOSCH - 0 986 494 165 / 0986494165
BOSCH - 0 986 TB2 928 / 0986TB2928
BREMBO - P 50 063 / P50063
BREMBO - P 50 063 / P50063
BREMBO - P50063N
BREMBO - P50063N
CHAMPION - 573175CH
DELPHI - LP2125
ECORA - 4019722278822
FERODO - FDB1830
FTE - BL1987A2
HELLA PAGID - 8DB 355 012-011 / 8DB355012011
HELLA PAGID - 8DB 355 026-101 / 8DB355026101
HELLA PAGID - T1516
HELLA PAGID - T1516
JURID - 573175D
JURID - 573175J
JURID - 573175J-AS / 573175JAS
JURID - 573175JC
MAGNETI MARELLI - 363700201516
MERCEDES-BENZ - 000 420 11 05 / 0004201105
MERCEDES-BENZ - 0004209704
MERCEDES-BENZ - 004 420 40 20 / 0044204020
MERCEDES-BENZ - 164 420 08 20 / 1644200820
MERCEDES-BENZ - 164 420 08 20 28 / 164420082028
MERCEDES-BENZ - 164 420 22 20 / 1644202220
MERCEDES-BENZ - 1644201820
MERCEDES-BENZ - 1644202620
MERCEDES-BENZ - A0044204020
MERCEDES-BENZ - A0044204020
MERCEDES-BENZ - A1644200820
MERCEDES-BENZ - A1644200820
MERCEDES-BENZ - A1644201820
MERCEDES-BENZ - A1644201820
MERCEDES-BENZ - A1644202220
MERCEDES-BENZ - A1644202220
MERCEDES-BENZ - A164420222064
MERCEDES-BENZ - A164420222064
MERCEDES-BENZ - A1644202620
MERCEDES-BENZ - A1644202620
MERCEDES-BENZ - MBA0074207520
MERCEDES-BENZ - MBA1644202220
MERCEDES-BENZ - N0044204020
MERCEDES-BENZ - N1644200820
MERCEDES-BENZ - N1644201820
MERCEDES-BENZ - N1644202220
MERCEDES-BENZ - N1644202620
OPTIMAL - 12502
OPTIMAL - BP-12502 / BP12502
PAGID - T1516
PAGID - T1516
TEXTAR - 2392201
TEXTAR - 2392201CP
TEXTAR - 2392204
TEXTAR - 2392281
TEXTAR - TX0676
TRW - GDB1642
TRW - GDB1642DTE
VALEO - 598728
ZIMMERMANN - 23925.210.1 / 239252101
ZIMMERMANN - 23925.910.1 / 239259101
febi bilstein - 16621

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24.8190-0425.2 / 24819004252
ATE - 620425
BOSCH - 1987473006
BREMBO - A00286
BREMBO - A00286
Caripar - GBK 431 / GBK431
FERODO - FWI296
FTE - BZ1099W
HELLA - 355251401
HELLA - 8DK355251401
HELLA PAGID - 355251401
HELLA PAGID - 8DK 355 251-401 / 8DK355251401
JURID - 581404
JURID - FWI296
MERCEDES-BENZ - 164 540 10 17 / 1645401017
MERCEDES-BENZ - 220 540 15 17 / 2205401517
MERCEDES-BENZ - A1645401017
MERCEDES-BENZ - A1645401017
MERCEDES-BENZ - A2205401517
MERCEDES-BENZ - A2205401517
METZGER - 1190085
OPTIMAL - WKT50607K
PAGID - P8156
PAGID - P8156
PAGID - P8156N
PAGID - P8156N
QUICK BRAKE - WS0229
QUICK BRAKE - WS0229A
QUICK BRAKE - WS0428A
TEXTAR - 98040100
TEXTAR - 98040110
TRW - GIC228
TRW - GIC228CN
febi bilstein - 223285
febi bilstein - 22663
