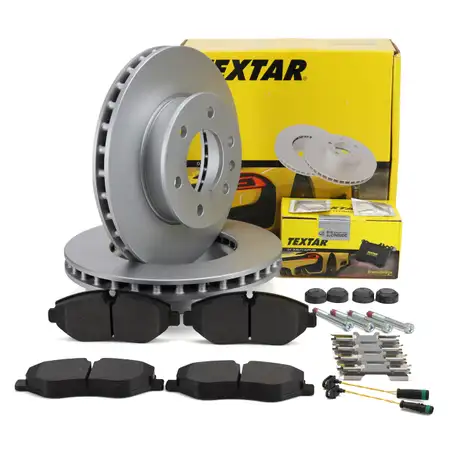

TEXTAR Brake Discs + Pads + Sensor for MERCEDES Sprinter 906 907 Crafter 2E/F (Front)

TEXTAR Brake Discs + Pads + Sensor for MERCEDES Sprinter 906 907 Crafter 2E/F (Front)

Item No.: PKT252W971
Manufacturer: TEXTAR
part number: 92301203, 2919202

Items included:

2x Brake Disc Piece - TEXTAR 92301203
1x Brake Pad Set, disc brake Set - TEXTAR 2919202

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 300
Hole Arrangement/Number: 06/07
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 130
Height [mm]: 68,5
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 25
Inner Diameter [mm]: 154,8
Weight [kg]: 8,6
Centering Diameter [mm]: 85
Wheel Bolt Bore Diameter [mm]: 15,2
Packaging length [cm]: 30,8
Packaging width [cm]: 30,8
Packaging height [cm]: 16

reference numbers - for comparison

ATE - 24.0128-0203.1 / 24012802031
BOSCH - 0 986 479 294 / 0986479294
BOSCH - 0 986 479 R78 / 0986479R78
BREMBO - 09.9508.11 / 09950811
BREMBO - 09.9508.14 / 09950814
BREMBO - 09.A895.11 / 09A89511
DELPHI - BG4032
DELPHI - BG4032C
DELPHI - BG5092C
ECORA - 4019722532610
FERODO - FCR310A
HELLA PAGID - 8DD 355 117-621 / 8DD355117621
HELLA PAGID - 8DD 355 129-281 / 8DD355129281
HELLA PAGID - 8DD 355 131-891 / 8DD355131891
HERTH+BUSS JAKOPARTS - J3300828
HERTH+BUSS JAKOPARTS - J3300828
JURID - 569136J
MERCEDES-BENZ - 906 421 0012 / 9064210012
MERCEDES-BENZ - 906 421 0112 / 9064210112
MERCEDES-BENZ - 906 421 0212 / 9064210212
MERCEDES-BENZ - 907 421 0100 / 9074210100
MERCEDES-BENZ - 907 421 0100 07 / 907421010007
MERCEDES-BENZ - 910 421 00 00 / 9104210000
MERCEDES-BENZ - 910 421 0000 07 / 910421000007
MERCEDES-BENZ - 910 421 0100 / 9104210100
MERCEDES-BENZ - A 906 421 0012 / A9064210012
MERCEDES-BENZ - A 906 421 0012 / A9064210012
MERCEDES-BENZ - A 906 421 0112 / A9064210112
MERCEDES-BENZ - A 906 421 0112 / A9064210112
MERCEDES-BENZ - A 906 421 0212 / A9064210212
MERCEDES-BENZ - A 906 421 0212 / A9064210212
MERCEDES-BENZ - A 907 421 0100 / A9074210100
MERCEDES-BENZ - A 907 421 0100 / A9074210100
MERCEDES-BENZ - A 907 421 0100 07 / A907421010007
MERCEDES-BENZ - A 907 421 0100 07 / A907421010007
MERCEDES-BENZ - A 910 421 0000 / A9104210000
MERCEDES-BENZ - A 910 421 0000 / A9104210000
MERCEDES-BENZ - A 910 421 0000 07 / A910421000007
MERCEDES-BENZ - A 910 421 0000 07 / A910421000007
MERCEDES-BENZ - A 910 421 0100 / A9104210100
MERCEDES-BENZ - A 910 421 0100 / A9104210100
RAICAM - RD01126
TEXTAR - 92301203
TEXTAR - 93143203
TRW - DF4822S
VAG - 2E0 615 301 / 2E0615301
VALEO - 187141
ZIMMERMANN - 400.6476.52 / 400647652
ZIMMERMANN - 400647620

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 29192
Fitting Position: Front Axle
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
contains more articles than the OE kit (art. no.): 906 421 16 00
contains more articles than the OE kit (art. no.): 907 420 81 01
contains more articles than the OE kit (art. no.): 907 420 33 02
Thickness [mm]: 20,9
Width [mm]: 163,3
Height [mm]: 67,6
Brake System: Brembo PF 2.4
Weight [kg]: 2,6
Packaging length [cm]: 17
Packaging width [cm]: 12
Packaging height [cm]: 8,3

reference numbers - for comparison

ATE - 13046048262
ATE - 604826
BLUE PRINT - ADU174212
BOSCH - 0986494121
BOSCH - 0986494728
BOSCH - 0986495098
BOSCH - 0986495113
BOSCH - 0986TB2948
BREMBO - P50085
BREMBO - P50085
BREMBO - P50085G
BREMBO - P50085G
BREMBO - P50085N
BREMBO - P50085N
CHAMPION - 573727CH
DELPHI - LP1982
DELPHI - LP1982LC
DELPHI - LP1982N18B1
ECORA - 4019722295706
EUROREPAR - 1639373980
EUROREPAR - 1639375580
EUROREPAR - 1686268180
EUROREPAR - 1686268280
EUROREPAR - 1697651080
FERODO - FSL1778
FERODO - FVR1778
FERODO - FVR1778W
FERODO - FVR4469
FTE - BL2023A4
FTE - PBW468BLA
HELLA - 355005521
HELLA - 355030731
HELLA - 355031531
HELLA - 530032861
HELLA - 8DB355005521
HELLA - 8DB355030731
HELLA - 8DB355031531
HELLA PAGID - 355005521
HELLA PAGID - 355030731
HELLA PAGID - 355031531
HELLA PAGID - 8DB355005521
HELLA PAGID - 8DB355030731
HELLA PAGID - 8DB355031531
HERTH+BUSS JAKOPARTS - J3600815
HERTH+BUSS JAKOPARTS - J3600815
JURID - 2919209560
JURID - 573760J
MAGNETI MARELLI - 363700036024
MAGNETI MARELLI - 363700450085
MAGNETI MARELLI - C6024MM
MAGNETI MARELLI - C6024MM
MERCEDES-BENZ - 004 420 83 20 / 0044208320
MERCEDES-BENZ - 004 420 83 20 28 / 004420832028
MERCEDES-BENZ - 0044206720
MERCEDES-BENZ - 005 420 52 20 / 0054205220
MERCEDES-BENZ - 0054207020
MERCEDES-BENZ - 006 420 84 20 / 0064208420
MERCEDES-BENZ - 008 420 50 20 / 0084205020
MERCEDES-BENZ - 906 421 04 00 / 9064210400
MERCEDES-BENZ - 906 421 07 00 / 9064210700
MERCEDES-BENZ - 906 421 16 00 / 9064211600
MERCEDES-BENZ - 9064200500
MERCEDES-BENZ - 9064210010
MERCEDES-BENZ - 9064212100
MERCEDES-BENZ - 907 420 33 02 / 9074203302
MERCEDES-BENZ - 907 420 81 01 / 9074208101
MERCEDES-BENZ - 910 420 40 00 / 9104204000
MERCEDES-BENZ - 910 420 76 00 / 9104207600
MERCEDES-BENZ - A0044206720
MERCEDES-BENZ - A0044206720
MERCEDES-BENZ - A0044208320
MERCEDES-BENZ - A0044208320
MERCEDES-BENZ - A0054205220
MERCEDES-BENZ - A0054205220
MERCEDES-BENZ - A0054207020
MERCEDES-BENZ - A0054207020
MERCEDES-BENZ - A0064208420
MERCEDES-BENZ - A0064208420
MERCEDES-BENZ - A0084205020
MERCEDES-BENZ - A0084205020
MERCEDES-BENZ - A9064200500
MERCEDES-BENZ - A9064200500
MERCEDES-BENZ - A9064210010
MERCEDES-BENZ - A9064210010
MERCEDES-BENZ - A9064210400
MERCEDES-BENZ - A9064210400
MERCEDES-BENZ - A9064210700
MERCEDES-BENZ - A9064210700
MERCEDES-BENZ - A9064211600
MERCEDES-BENZ - A9064211600
MERCEDES-BENZ - A9064212100
MERCEDES-BENZ - A9064212100
MERCEDES-BENZ - A907 420 33 02 / A9074203302
MERCEDES-BENZ - A907 420 33 02 / A9074203302
MERCEDES-BENZ - A9074208101
MERCEDES-BENZ - A9074208101
MERCEDES-BENZ - A9104204000
MERCEDES-BENZ - A9104204000
MERCEDES-BENZ - A9104207600
MERCEDES-BENZ - A9104207600
METZGER - 1170040
METZGER - 1170844
METZGER - 124500
MEYLE - 0252919220
MEYLE - 0252919220PD
MEYLE - MBP0725
MEYLE - MBP0725PD
OPTIMAL - 12297
OPTIMAL - BP12297
PAGID - C6024
PAGID - C6024
PAGID - C6024N
PAGID - C6024N
RAICAM - 9000
RAICAM - RA09000
TEXTAR - 2919201
TEXTAR - 2919202
TEXTAR - 2919205
TEXTAR - 8430D1316
TRW - GDB1698
VAICO - V301696
VAICO - V301696
VAICO - V308196
VAICO - V308196
VALEO - 301882
VALEO - 301882A
VALEO - 598882
VALEO - 670882
VALEO - 872192
VOLKSWAGEN - 2E0698151
VOLKSWAGEN - 2E0698151B
VOLKSWAGEN - 2E0698151E
VOLKSWAGEN - 2E0698151H
VOLKSWAGEN - JZW698151AB
ZIMMERMANN - 291922101
ZIMMERMANN - 291922102
febi bilstein - 16710
