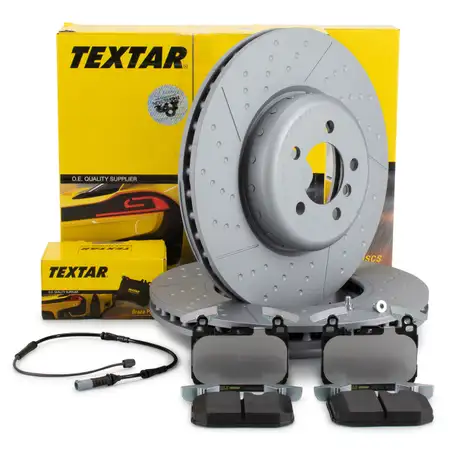

TEXTAR Brake Discs + Brake Pads + Sensor for BMW 3 Series F30-34 and 4 Series with M Technology (Front)

TEXTAR Brake Discs + Brake Pads + Sensor for BMW 3 Series F30-34 and 4 Series with M Technology (Front)

Item No.: PKT252W959
Manufacturer: TEXTAR, CARIPAR
part number: 92265425, 2502801, GBK 444

Items included:

2x Brake Disc Piece - TEXTAR
1x Brake Pad Set, disc brake Set - TEXTAR
1x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 120
Surface: Coated
Outer Diameter [mm]: 370
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: slotted
Brake Disc Type: Drilled dimples
Brake Disc Type: two-piece brake disc
Fitting Position: Front Axle
Packaging length [cm]: 39,8
Centering Diameter [mm]: 79
Quantity Unit: Piece
Packaging height [cm]: 9,5
Hole Arrangement/Number: 05/06
Number of bolts/screws: 1
Minimum thickness [mm]: 28,4
Packaging width [cm]: 39,8
Processing: High-carbon
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Supplementary Article/Supplementary Info 2: with bolts/screws
Brake Disc Thickness [mm]: 30
Weight [kg]: 12
Height [mm]: 73,1
Inner Diameter [mm]: 184
Wheel Bolt Bore Diameter [mm]: 16,5

reference numbers - for comparison

BLUE PRINT - ADB114380
BMW - 34 10 6 797 603 / 34106797603
BMW - 34106797603
BMW - 6797603
BOSCH - 0986479E10
BREMBO - 09C39413
DELPHI - BG9320BC19B1
DELPHI - BG9320C
FERODO - DDF2615VC1
HELLA - 355120771
HELLA - 8DD355120771
HELLA PAGID - 355120771
HELLA PAGID - 8DD355120771
JURID - 563200JC1
JURID - 563200JVC1
OPTIMAL - BS9310
OPTIMAL - BS9310HC
PAGID - 65140
PAGID - 65140HC
TEXTAR - 4019722471339
TEXTAR - 4019722632556
TEXTAR - 92265425
TEXTAR - 98200265401
TRW - DF6600S
VAICO - V2080104
VAICO - V2080104
VALEO - 196097
ZIMMERMANN - 150290520
ZIMMERMANN - 150290532
febi bilstein - 105720

item specifications

Component: Braking System
Width [mm]: 114,8
Fitting Position: Front Axle
Packaging length [cm]: 17
WVA Number: 25028
Quantity Unit: Set
Packaging height [cm]: 8,3
Supplementary Article/Supplementary Info: with counterweights
Packaging width [cm]: 12
Thickness [mm]: 18,2
Weight [kg]: 2,4
Height [mm]: 91,2
Brake System: Brembo
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13046048752
ATE - 604875
ATE - LD4875
BLUE PRINT - ADB114231
BMW - 2464195
BMW - 34 11 6 878 876 / 34116878876
BMW - 34106799805
BMW - 34106859067
BMW - 34106866072
BMW - 34106878878
BMW - 34112464195
BMW - 34116850850
BMW - 34116859066
BMW - 34116866072
BMW - 34116878876
BMW - 6799805
BMW - 6850850
BMW - 6859066
BMW - 6859067
BMW - 6866072
BMW - 6878876
BMW - 6878878
BOSCH - 0986494674
BOSCH - 0986TB3211
BREMBO - 07B31490
BREMBO - 07D43544
BREMBO - P06088
BREMBO - P06088
BREMBO - P06088N
BREMBO - P06088N
BREMBO - P06088X
BREMBO - P06088X
BREMBO - P06096
BREMBO - P06096
BREMBO - P06096N
BREMBO - P06096N
BREMBO - P06096NX
BREMBO - P06096NX
CHAMPION - 573355CH
DELPHI - LP2449
DELPHI - LP2449N18B1
DELPHI - LP2449ND19B1
DELPHI - LP3383N18B1
DELPHI - LP3383ND19B1
EUROREPAR - 1623057580
EUROREPAR - 1654489580
EUROREPAR - 1681253280
FERODO - FDB4611
FERODO - FDB4611D
FERODO - FDB4611S
FERODO - FSL4611
FTE - 9002263
FTE - 9010954
FTE - 9010955
HELLA - 355021271
HELLA - 355026651
HELLA - 8DB355021271
HELLA - 8DB355026651
HELLA PAGID - 355021271
HELLA PAGID - 355026651
HELLA PAGID - 8DB355021271
HELLA PAGID - 8DB355026651
HERTH+BUSS JAKOPARTS - J3600858
HERTH+BUSS JAKOPARTS - J3600858
JURID - 573355J
JURID - 573355JC
JURID - 573355JD
MAGNETI MARELLI - 363700406088
MAGNETI MARELLI - 363700406096
MEYLE - 0252502818
MEYLE - 0252502818PD
MEYLE - MBP1702
MEYLE - MBP1702PD
OPTIMAL - 12673
OPTIMAL - BP12673
PAGID - T2166
PAGID - T2166
PAGID - T2166N
PAGID - T2166N
RAICAM - 10820
RAICAM - 10823
RAICAM - RA10820
RAICAM - RA10823
TEXTAR - 25028
TEXTAR - 25028 182 0 4 / 2502818204
TEXTAR - 2502801
TEXTAR - 2502801CP
TEXTAR - 2502810
TEXTAR - 4019722463822
TEXTAR - 4019722601347
TEXTAR - 8822D1880
TEXTAR - 8991D1609
TOPRAN - 504644
TRUCKTEC AUTOMOTIVE - 0835222
TRW - GDB1943
TRW - TRH1609
VAICO - V203130
VAICO - V203130
VALEO - 208212
VALEO - 601875
VALEO - 671344
VALEO - 671391
ZIMMERMANN - 250281801
febi bilstein - 16902

item specifications

Component: Braking System
Fitting Position: Front Axle Left
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24.8190-0006.2 / 24819000062
BMW - 34 35 6 792 289 / 34356792289
BMW - 34 35 6 792 289 / 34356792289
BMW - 6 792 289 / 6792289
BMW - 6 792 289 / 6792289
BOSCH - 1 987 474 550 / 1987474550
BREMBO - A 00 473 / A00473
BREMBO - A 00 473 / A00473
BREMBO - A 00 473 / A00473
BREMBO - A 00 473 / A00473
Caripar - 620006
Caripar - GBK 444 / GBK444
DELPHI - LZ0239
HELLA - 8DK 355 252-341 / 8DK355252341
HELLA PAGID - 8DK 355 252-341 / 8DK355252341
HELLA PAGID - 8DK 355 252-341 / 8DK355252341
JURID - 581472
JURID - 581472
PAGID - P8629
PAGID - P8629
TEXTAR - 98047500
TEXTAR - 98047500
TRW - GIC340
febi bilstein - 39138

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
