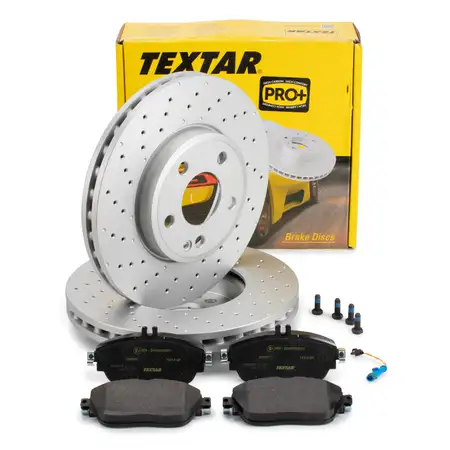

TEXTAR Brake Discs + Pads + Sensor for MERCEDES W176 W246 C/X117 with Sport Package (Front)

TEXTAR Brake Discs + Pads + Sensor for MERCEDES W176 W246 C/X117 with Sport Package (Front)

Item No.: PKT252W579
Manufacturer: TEXTAR, CARIPAR
part number: 92257505, 2486901, GBK 625

Items included:

2x Brake Disc Piece - TEXTAR 92257505
1x Brake Pad Set, disc brake Set - TEXTAR 2486901
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 625

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 295
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 51,2
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 26
Inner Diameter [mm]: 154,5
Machining: High-carbon
Weight [kg]: 8,3
Centering Diameter [mm]: 67
Wheel Bolt Bore Diameter [mm]: 15,3
Packaging length [cm]: 30,8
Packaging width [cm]: 30,8
Packaging height [cm]: 12,7

reference numbers - for comparison

ATE - 24.0128-0262.2 / 24012802622
BOSCH - 0 986 479 A02 / 0986479A02
BREMBO - 09.B436.51 / 09B43651
BREMBO - 59.E114.90 / 59E11490
DELPHI - BG4657C
ECORA - 4019722493874
FERODO - DDF2464C
HELLA PAGID - 8DD 355 129-681 / 8DD355129681
HERTH+BUSS JAKOPARTS - J3300841
HERTH+BUSS JAKOPARTS - J3300841
JURID - 563118JC
MERCEDES-BENZ - 246 421 25 12 / 2464212512
MERCEDES-BENZ - 246 421 2512 07 / 246421251207
MERCEDES-BENZ - A 246 421 2512 / A2464212512
MERCEDES-BENZ - A 246 421 2512 / A2464212512
MERCEDES-BENZ - A 246 421 2512 07 / A246421251207
MERCEDES-BENZ - A 246 421 2512 07 / A246421251207
RAICAM - RD01426
TEXTAR - 92257505
TRW - DF6262S
VALEO - 197474
ZIMMERMANN - 400.3679.52 / 400367952
ZIMMERMANN - 400367920

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24869
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 19
Width [mm]: 144
Height [mm]: 71,5
Brake System: TRW
Weight [kg]: 2
Packaging length [cm]: 15,2
Packaging width [cm]: 8,8
Packaging height [cm]: 8,4

reference numbers - for comparison

ATE - 13046027792
ATE - 13047027792
ATE - 602779
ATE - LD2779
BLUE PRINT - ADN142181
BOSCH - 0986494662
BOSCH - 0986494937
BOSCH - 0986495299
BOSCH - 0986T14826
BOSCH - 0986TB3170
BOSCH - BE1694
BOSCH - BP1694
BREMBO - P50093
BREMBO - P50093
BREMBO - P50093N
BREMBO - P50093N
BREMBO - P50093X
BREMBO - P50093X
CHAMPION - 573403CH
DELPHI - LP2441
DELPHI - LP244114B1
DELPHI - LP244117B1
DELPHI - LP2441N18B1
DELPHI - LP2441ND19B1
ECORA - 4019722439544
EUROREPAR - 1639373580
EUROREPAR - 1639375180
EUROREPAR - 1654487680
EUROREPAR - 1681233080
EUROREPAR - 1686270880
FERODO - FDB4245
FERODO - FDB4245D
FERODO - FDB4245S
FERODO - HQF4119C
FTE - 9001102
FTE - 9010937
FTE - BL2711A1
HELLA - 355019721
HELLA - 355026471
HELLA - 8DB355019721
HELLA - 8DB355026471
HELLA PAGID - 355019721
HELLA PAGID - 355026471
HELLA PAGID - 8DB355019721
HELLA PAGID - 8DB355026471
HERTH+BUSS JAKOPARTS - J3601073
HERTH+BUSS JAKOPARTS - J3601073
JP Group - 1363607010
JURID - 573403J
JURID - 573403JD
MAGNETI MARELLI - 363700202149
MAGNETI MARELLI - 363700450093
MAGNETI MARELLI - 363916060841
MERCEDES-BENZ - 000 420 30 02 / 0004203002
MERCEDES-BENZ - 000 420 30 20 / 0004203020
MERCEDES-BENZ - 0004209104
MERCEDES-BENZ - 006 420 25 20 / 0064202520
MERCEDES-BENZ - 006 420 46 20 / 0064204620
MERCEDES-BENZ - 006 420 85 20 / 0064208520
MERCEDES-BENZ - 0064204720
MERCEDES-BENZ - 008 420 06 20 / 0084200620
MERCEDES-BENZ - 0084200320
MERCEDES-BENZ - A0004203002
MERCEDES-BENZ - A0004203002
MERCEDES-BENZ - A0004209104
MERCEDES-BENZ - A0004209104
MERCEDES-BENZ - A0064204620
MERCEDES-BENZ - A0064204620
MERCEDES-BENZ - A0064204720
MERCEDES-BENZ - A0064204720
MERCEDES-BENZ - A0064208520
MERCEDES-BENZ - A0064208520
MERCEDES-BENZ - A0084200320
MERCEDES-BENZ - A0084200320
MERCEDES-BENZ - A0084200620
MERCEDES-BENZ - A0084200620
METZGER - 1170215
METZGER - 148508
MEYLE - 0252486919
MEYLE - 0252486919PD
MEYLE - MBP0673
MEYLE - MBP0673PD
OPTIMAL - 12609
OPTIMAL - BP12609
PAGID - T2149
PAGID - T2149
PAGID - T2149N
PAGID - T2149N
RAICAM - 10210
RAICAM - 10211
RAICAM - RA10210
RAICAM - RA10211
TEXTAR - 2486901
TEXTAR - 2486901CP
TEXTAR - 2486903
TEXTAR - 8920D1694
TRW - GDB1932
TRW - GDB1932BTE
TRW - GDB1932DTE
TRW - TXD1694
VAICO - V302139
VAICO - V302139
VAICO - V303931
VAICO - V303931
VALEO - 208147
VALEO - 302210
VALEO - 302210A
VALEO - 601503
VALEO - 604119
VALEO - 670503
ZIMMERMANN - 248691951
febi bilstein - 16870

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24.8190-0067.2 / 24819000672
ATE - 620067
BOSCH - 0986T10000
BOSCH - 1987474553
BREMBO - A00353
BREMBO - A00353
Caripar - GBK 625 / GBK625
DELPHI - LZ0363
FERODO - FWI261
FERODO - FWI475
FTE - BZ1192W
HELLA - 355252141
HELLA - 8DK355252141
HELLA PAGID - 355252141
HELLA PAGID - 8DK 355 252-141 / 8DK355252141
JURID - 581379
JURID - 581511
MERCEDES-BENZ - 169 540 16 17 / 1695401617
MERCEDES-BENZ - A1695401617
MERCEDES-BENZ - A1695401617
METZGER - 1190294
OPTIMAL - WKT60093K
PAGID - P8641
PAGID - P8641
PAGID - P8641N
PAGID - P8641N
TEXTAR - 98048700
TEXTAR - 98048710
TRW - GIC242
TRW - GIC242CN
febi bilstein - 39246

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
