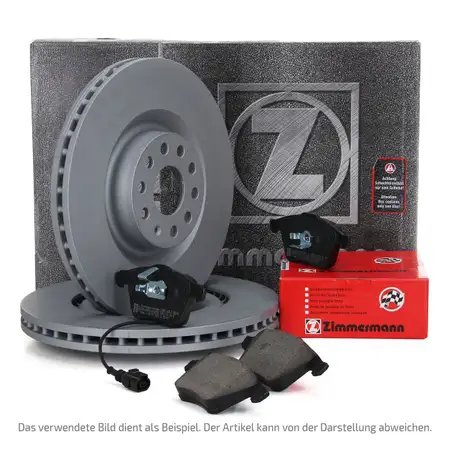

ZIMMERMANN Brake Discs + Pads + Wako for AUDI A4 B8 A5 8T 8F PR-1LT/1LY (Front)

ZIMMERMANN Brake Discs + Pads + Wako for AUDI A4 B8 A5 8T 8F PR-1LT/1LY (Front)

ZIMMERMANN

Item No.: PKT162W268
Manufacturer: ZIMMERMANN
part number: 100.3330.20, 24705.200.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 100.3330.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24705.200.1

Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 314
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 52
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Machining: High-carbon
  • Centering Diameter [mm]: 68
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24012501841
  • ATE - 24032501841
  • ATE - 425184
  • ATE - 525184
  • AUDI - 8K0615301
  • AUDI - 8K0615301T
  • AUDI - 8W0615301G
  • AUDI - 8W0615301T
  • AUDI - 8WD615301
  • AUDI - L8K0615301
  • AUDI - L8K0615301
  • AUDI - L8KD615301
  • AUDI - L8KD615301
  • AUDI - L8WD615301
  • AUDI - L8WD615301
  • BLUE PRINT - ADV184313
  • BOSCH - 0986479467
  • BOSCH - 0986T16089
  • BOSCH - 0986T16830
  • BREMBO - 09A82010
  • BREMBO - 09A82011
  • BREMBO - 09A8201S
  • BREMBO - 09A8201X
  • BREMBO - 59E11443
  • BREMBO - FD220000
  • CHAMPION - 562466CH
  • DELPHI - BG4079
  • DELPHI - BG4079C
  • DELPHI - BG4079C18B1
  • DELPHI - BG4799C
  • DELPHI - BG4799C19B1
  • ECORA - 4250238720522
  • EUROREPAR - 1636909680
  • EUROREPAR - 1642749980
  • EUROREPAR - 1684245880
  • EUROREPAR - 1686350380
  • EUROREPAR - 1687777280
  • EUROREPAR - 1690949780
  • FERODO - DDF1663
  • FERODO - DDF1663C
  • FERODO - DDF1663C1
  • FERODO - DDF1663C1D
  • FERODO - DDF1663DLC1D
  • FERODO - DDF1663DRC1D
  • FTE - 9071011
  • FTE - 9081018
  • FTE - 9082595
  • FTE - BS7214
  • FTE - BS7214B
  • FTE - BS7214HB
  • HELLA - 355113881
  • HELLA - 355123931
  • HELLA - 355125201
  • HELLA - 355128711
  • HELLA - 8DD355113881
  • HELLA - 8DD355123931
  • HELLA - 8DD355125201
  • HELLA - 8DD355128711
  • HELLA PAGID - 355113881
  • HELLA PAGID - 355123931
  • HELLA PAGID - 355128711
  • HELLA PAGID - 8DD355113881
  • HELLA PAGID - 8DD355123931
  • HELLA PAGID - 8DD355128711
  • HERTH+BUSS JAKOPARTS - J3300823
  • HERTH+BUSS JAKOPARTS - J3300823
  • JP Group - 1163113800
  • JURID - 562466J
  • JURID - 562466JC
  • JURID - 562466JC1
  • METZGER - 6110138
  • MEYLE - 1155210001PD
  • MEYLE - 1835210001PD
  • MEYLE - MBD1524PD
  • OPTIMAL - BS8506
  • OPTIMAL - BS8506C
  • OPTIMAL - BS8506HC
  • PAGID - 54599
  • PAGID - 54599NHC
  • PAGID - 54599PRO
  • PAGID - 55829HC
  • SEAT - 8K0615301
  • SEAT - 8W0615301G
  • SEAT - 8W0615301T
  • SKF - VKBD80024V1
  • SKODA - 8K0615301
  • SKODA - 8W0615301G
  • SKODA - 8W0615301T
  • TEXTAR - 92159900
  • TEXTAR - 92159903
  • TEXTAR - 92159905
  • TEXTAR - 92282905
  • TEXTAR - 98200159901
  • TEXTAR - 98200282901
  • TOPRAN - 113009
  • TRUCKTEC AUTOMOTIVE - 0735272
  • TRW - DF4866S
  • TRW - DF4866SL
  • TRW - DF4866SR
  • VAICO - V1080121
  • VAICO - V1080121
  • VALEO - 196025
  • VALEO - 197213
  • VALEO - 497011
  • VALEO - 672948
  • VOLKSWAGEN - 8K0615301
  • VOLKSWAGEN - 8W0615301G
  • VOLKSWAGEN - 8W0615301T
  • ZIMMERMANN - 100.3330.20 / 100333020
  • ZIMMERMANN - 100333052
  • ZIMMERMANN - 100333070
  • ZIMMERMANN - 100333072
  • ZIMMERMANN - 100333075
  • febi bilstein - 36232
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24705
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 20
  • Width 1 [mm]: 155
  • Width 2 [mm]: 155
  • Height 1 [mm]: 67
  • Height 2 [mm]: 72
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
  • Number of wear indicators [per axle]: 1
reference numbers - for comparison
  • ATE - 13.0460-7256.2 / 13046072562
  • ATE - 607256
  • AUDI - 8K0 698 151 A / 8K0698151A
  • AUDI - 8K0 698 151 F / 8K0698151F
  • AUDI - 8K0 698 151 P / 8K0698151P
  • BOSCH - 0 986 494 538 / 0986494538
  • BREMBO - P 85 113 / P85113
  • BREMBO - P 85 113 / P85113
  • DELPHI - LP2107
  • ECORA - 4250238746348
  • FERODO - FDB4045
  • HELLA PAGID - 8DB 355 013-861 / 8DB355013861
  • JURID - 573258J
  • JURID - 573258JC
  • RAICAM - RA.0922.1 / RA09221
  • TEXTAR - 2470601
  • TEXTAR - 2470681
  • TRW - GDB1814
  • VAG - 8K0 698 151 A / 8K0698151A
  • VAG - 8K0 698 151 F / 8K0698151F
  • VAG - 8K0 698 151 P / 8K0698151P
  • VALEO - 302098
  • VOLKSWAGEN - 8K0 698 151 P / 8K0698151P
  • ZIMMERMANN - 24705
  • ZIMMERMANN - 24705.200.1 / 247052001
  • ZIMMERMANN - 24706
  • ZIMMERMANN - 24707
