  5. ZIMMERMANN brake discs + pb:z pads + Wako for PORSCHE 997 3.8 Carrera 4S / GTS (rear)

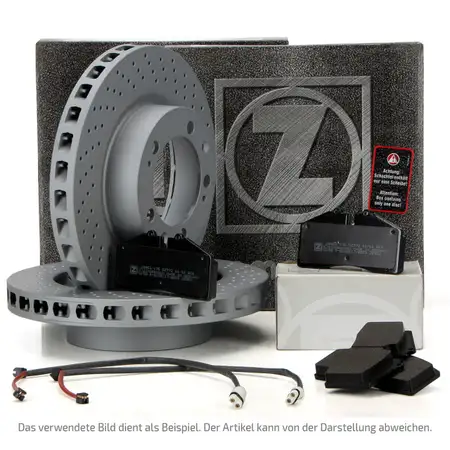

ZIMMERMANN brake discs + pb:z pads + Wako for PORSCHE 997 3.8 Carrera 4S / GTS (rear)

ZIMMERMANN brake discs + pb:z pads + Wako for PORSCHE 997 3.8 Carrera 4S / GTS (rear)

ZIMMERMANN CARIPAR

Item No.: PKT262W513
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.1562.20, 460.1563.20, 24049.170.9, GBK 741

Items included:
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 2x Warning Contact, brake pad wear Piece - CARIPAR

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 130
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Rear Axle Left
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 98
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 26
  • Brake Disc Thickness [mm]: 28
  • Weight [kg]: 9,1
  • Height [mm]: 75
reference numbers - for comparison
  • ATE - 24.0128-0197.1 / 24012801971
  • BOSCH - 0 986 479 581 / 0986479581
  • BREMBO - 09.C878.11 / 09C87811
  • BREMBO - 59.E114.58L / 59E11458L
  • FERODO - DDF2131LC-1 / DDF2131LC1
  • HELLA PAGID - 8DD 355 135-051 / 8DD355135051
  • JURID - 562587JC-1 / 562587JC1
  • PORSCHE - 991 352 403 02 / 99135240302
  • PORSCHE - 991 352 403 02 / 99135240302
  • PORSCHE - 996 352 405 00 / 99635240500
  • PORSCHE - 996 352 405 00 / 99635240500
  • PORSCHE - 996 352 405 01 / 99635240501
  • PORSCHE - 996 352 405 01 / 99635240501
  • PORSCHE - 996 352 405 02 / 99635240502
  • PORSCHE - 996 352 405 02 / 99635240502
  • PORSCHE - 996 352 405 03 / 99635240503
  • PORSCHE - 996 352 405 03 / 99635240503
  • SHW Performance - PRL31124
  • TEXTAR - 92218905
  • ZIMMERMANN - 4250238719731
  • ZIMMERMANN - 460.1562.20 / 460156220
  • ZIMMERMANN - 460.1562.54 / 460156254
item specifications
  • Bolt Hole Circle Ø [mm]: 130
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Rear Axle Right
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 98
  • Quantity Unit: Piece
  • Rim Hole Number: 2
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 26
  • Brake Disc Thickness [mm]: 28
  • Weight [kg]: 9,1
  • Height [mm]: 75
reference numbers - for comparison
  • ATE - 24.0128-0196.1 / 24012801961
  • BOSCH - 0 986 479 582 / 0986479582
  • BREMBO - 09.C878.11 / 09C87811
  • BREMBO - 59.E114.58R / 59E11458R
  • FERODO - DDF2131RC-1 / DDF2131RC1
  • HELLA PAGID - 8DD 355 135-061 / 8DD355135061
  • JURID - 562590JC-1 / 562590JC1
  • PORSCHE - 991 352 404 02 / 99135240402
  • PORSCHE - 991 352 404 02 / 99135240402
  • PORSCHE - 996 352 406 00 / 99635240600
  • PORSCHE - 996 352 406 00 / 99635240600
  • PORSCHE - 996 352 406 01 / 99635240601
  • PORSCHE - 996 352 406 01 / 99635240601
  • PORSCHE - 996 352 406 02 / 99635240602
  • PORSCHE - 996 352 406 02 / 99635240602
  • PORSCHE - 996 352 406 03 / 99635240603
  • PORSCHE - 996 352 406 03 / 99635240603
  • SHW Performance - PRR31224
  • TEXTAR - 92219005
  • ZIMMERMANN - 4250238719748
  • ZIMMERMANN - 460.1563.20 / 460156320
  • ZIMMERMANN - 460.1563.55 / 460156355
item specifications
  • Component: Braking System
  • Width [mm]: 121
  • Fitting Position: Front and Rear
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24049
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with counterweights
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Version: pb:z
  • Thickness [mm]: 17
  • Height [mm]: 86
  • Brake System: BREMBO
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13046048422
  • ATE - 604842
  • BLUE PRINT - ADV184284
  • BOSCH - 0986494567
  • BREMBO - 07B31485
  • BREMBO - P65014
  • BREMBO - P65014
  • BREMBO - P65014N
  • BREMBO - P65014N
  • BREMBO - P65015
  • BREMBO - P65015
  • DELPHI - LP223617B1
  • DELPHI - LP223618B1
  • DELPHI - LP2236D19B1
  • FERODO - HQF2395C
  • FTE - 9009012
  • FTE - 9011019
  • FTE - BL2843A1
  • HELLA - 355014161
  • HELLA - 355043221
  • HELLA - 8DB355014161
  • HELLA - 8DB355043221
  • HELLA PAGID - 355014161
  • HELLA PAGID - 355043221
  • HELLA PAGID - 8DB355014161
  • HELLA PAGID - 8DB355043221
  • JURID - 573650J
  • MAGNETI MARELLI - 363700465014
  • MAGNETI MARELLI - T1799MM
  • MAGNETI MARELLI - T1799MM
  • OPTIMAL - 12349
  • OPTIMAL - BP12349
  • PAGID - T1799
  • PAGID - T1799
  • PAGID - T1799N
  • PAGID - T1799N
  • PORSCHE - 997 351 939 03 / 99735193903
  • PORSCHE - 997 351 939 05 / 99735193905
  • PORSCHE - 997 351 939 07 / 99735193907
  • PORSCHE - 99735193902
  • PORSCHE - 99735193903
  • PORSCHE - 99735193905
  • PORSCHE - 99735193907
  • TRW - GDB1836
  • TRW - GDB7721
  • TRW - TRH1135
  • VAICO - V450022
  • VAICO - V450022
  • VALEO - 303078A
  • VALEO - 671680
  • ZIMMERMANN - 24049
  • ZIMMERMANN - 24049 170 0 4 / 2404917004
  • ZIMMERMANN - 24049.170.9 / 240491709
  • ZIMMERMANN - 240491709
  • ZIMMERMANN - 4250238747987
  • ZIMMERMANN - 7894BD1135
  • ZIMMERMANN - 7894D1135
  • febi bilstein - 116171
item specifications
  • Component: Braking System
  • Fitting Position: Rear Axle
  • Application: Lining Wear
  • Warning Contact Length [mm]: 510
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24.8190-0943.2 / 24819009432
  • ATE - 24819009432
  • ATE - 620943
  • BOSCH - 1987473062
  • BOSCH - 1987474557
  • BREMBO - A 00 339 / A00339
  • BREMBO - A 00 339 / A00339
  • BREMBO - A00339
  • BREMBO - A00339
  • Caripar - GBK 741 / GBK741
  • DELPHI - LZ0360
  • FERODO - FWI417
  • HELLA - 355251211
  • HELLA - 8DK355251211
  • HELLA PAGID - 355251211
  • HELLA PAGID - 8DK 355 251-211 / 8DK355251211
  • HELLA PAGID - 8DK355251211
  • JURID - 581499
  • JURID - FWI417
  • OPTIMAL - WKT60072K
  • PAGID - P8132
  • PAGID - P8132
  • PAGID - P8132N
  • PAGID - P8132N
  • PORSCHE - 997 612 676 01 / 99761267601
  • PORSCHE - 997 612 676 02 / 99761267602
  • PORSCHE - 99761267601
  • QUICK BRAKE - WS0398A
  • TEXTAR - 98038200
  • TEXTAR - 98038210
  • TRW - GIC313
  • TRW - GIC313
