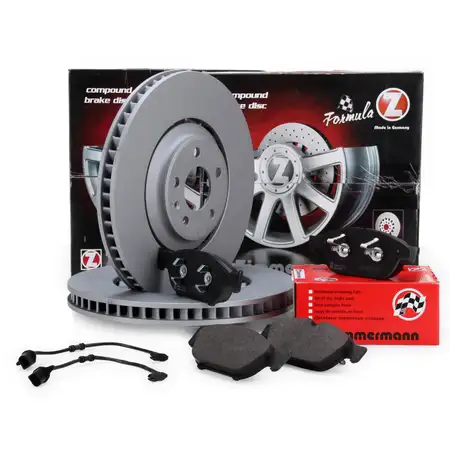

Zimmermann FORMULA Z Brake Discs + Pads + Sensor for AUDI A6 C7, A7 4G, A8 4H (Front)

Zimmermann FORMULA Z Brake Discs + Pads + Sensor for AUDI A6 C7, A7 4G, A8 4H (Front)

Item No.: PKT372W944
Manufacturer: ZIMMERMANN
part number: 100.3364.75, 25158.200.2

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 356
Surface: Coated
Component: Braking System
Brake Disc Type: Vented
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 32
Processing: Alloyed/High-carbon
Version: Sport
Version: Formula Z
Brake Disc Thickness [mm]: 34
Weight [kg]: 10,50
Height [mm]: 52

reference numbers - for comparison

ATE - 24013401031
ATE - 434103
AUDI - 4G0615301A
AUDI - 4G0615301K
AUDI - 4G0615301T
AUDI - 4H0615301F
AUDI - 4H0615301K
AUDI - 4H0615301R
BLUE PRINT - ADV184345
BOSCH - 0986479748
BOSCH - 0986T16008
BREMBO - 09B97111
BREMBO - 09B9711S
BREMBO - 09B9711X
BREMBO - 59E11464
DELPHI - BG9171C
DELPHI - BG9171C18B1
DELPHI - BG9171C19B1
EUROREPAR - 1636909880
EUROREPAR - 1667863780
EUROREPAR - 1684246080
FERODO - DDF1987C
FERODO - DDF1987C1
FERODO - DDF1988DC1D
FERODO - DDF1988LDC1D
FERODO - DDF1988RDC1D
FTE - 9071252
FTE - 9081075
FTE - BS7715
FTE - BS7715B
HELLA - 355118011
HELLA - 355129371
HELLA - 355129372
HELLA - 8DD355118011
HELLA - 8DD355129371
HELLA - 8DD355129372
HELLA PAGID - 355118011
HELLA PAGID - 355129371
HELLA PAGID - 355129372
HELLA PAGID - 8DD355118011
HELLA PAGID - 8DD355129371
HELLA PAGID - 8DD355129372
JP Group - 1163114100
JURID - 562771JC
JURID - 562771JC1
METZGER - 6110714
MEYLE - 1835211049PD
MEYLE - MBD1537PD
OPTIMAL - BS9180
OPTIMAL - BS9180HC
PAGID - 55382
PAGID - 55382NHC
PAGID - 55382PRO
SEAT - 4G0615301A
SEAT - 4G0615301K
SEAT - 4G0615301T
SEAT - 4H0615301K
SEAT - 4H0615301R
SKODA - 4G0615301A
SKODA - 4G0615301K
SKODA - 4G0615301T
SKODA - 4H0615301K
SKODA - 4H0615301R
TEXTAR - 92238203
TEXTAR - 98200238201
TOPRAN - 116385
TRUCKTEC AUTOMOTIVE - 0735304
TRW - DF6216
TRW - DF6216S
TRW - DF8037
TRW - DF8037S
TRW - DF8037SL
TRW - DF8037SR
VAICO - V1080120
VAICO - V1080120
VALEO - 197743
VALEO - 673086
VOLKSWAGEN - 4G0615301A
VOLKSWAGEN - 4G0615301K
VOLKSWAGEN - 4G0615301T
VOLKSWAGEN - 4H0615301K
VOLKSWAGEN - 4H0615301R
ZIMMERMANN - 100.3364.75 / 100336475
ZIMMERMANN - 100335720
ZIMMERMANN - 100335752
ZIMMERMANN - 100335754
ZIMMERMANN - 100335755
ZIMMERMANN - 100336475
ZIMMERMANN - 4250238763932
febi bilstein - 44107

item specifications

Component: Braking System
Width [mm]: 193
Fitting Position: Front Axle
Number of wear indicators [per axle]: 2
Test Mark: ECE R90 APPROVED
WVA Number: 25158
Warning Contact Length [mm]: 310
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Height 2 [mm]: 71
Brake System: ATE
Wear Warning Contact: incl. wear warning contact
Height 1 [mm]: 74

reference numbers - for comparison

ATE - 13.0460-7280.2 / 13046072802
ATE - 13.0460-7334.2 / 13046073342
ATE - 13.0470-7280.2 / 13047072802
ATE - 13.0470-7334.2 / 13047073342
ATE - 707280
AUDI - 4G0 698 151 M / 4G0698151M
AUDI - 4G0 698 151 R / 4G0698151R
AUDI - 4G0 698 151 S / 4G0698151S
AUDI - 4G0 698 151 S / 4G0698151S
AUDI - 4H0 698 151 D / 4H0698151D
AUDI - 4H0 698 151 G / 4H0698151G
BOSCH - 0 986 494 986 / 0986494986
BOSCH - 0 986 494 987 / 0986494987
BREMBO - P 85 127 / P85127
BREMBO - P 85 127 / P85127
DELPHI - LP2301
FERODO - FDB4397
HELLA PAGID - 8DB 355 016-031 / 8DB355016031
JURID - 573381J
TEXTAR - 2515802
TRW - GDB1883
VAG - 4G0 698 151 AG / 4G0698151AG
VAG - 4G0 698 151 AJ / 4G0698151AJ
VAG - 4G0 698 151 B / 4G0698151B
VAG - 4G0 698 151 G / 4G0698151G
VAG - 4G0 698 151 M / 4G0698151M
VAG - 4G0 698 151 R / 4G0698151R
VAG - 4G0 698 151 S / 4G0698151S
VAG - 4G0 698 151 S / 4G0698151S
VAG - 4H0 698 151 D / 4H0698151D
VAG - 4H0 698 151 G / 4H0698151G
VAG - 4H0 698 151 M / 4H0698151M
VALEO - 601659
ZIMMERMANN - 25156
ZIMMERMANN - 25157
ZIMMERMANN - 25158.200.2 / 251582002
ZIMMERMANN - 25158.900.2 / 251589002
ZIMMERMANN - 4250238759157
ZIMMERMANN - D1549-8758 / D15498758
ZIMMERMANN - D1549-8758 / D15498758
