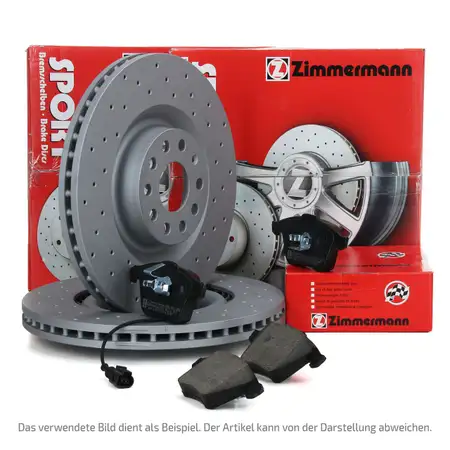

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

Zimmermann SPORT brake discs + Pads + Wako for AUDI S4 B8, S5 8T, 8F (model year 2011 and later) and A6 (front)

ZIMMERMANN

Item No.: PKT372W335
Manufacturer: ZIMMERMANN
part number: 100.3356.52, 24743.190.3

Items included:

2x Brake Disc Piece - ZIMMERMANN 100.3356.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24743.190.3

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 345
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 52
Brake Disc Thickness [mm]: 30
Minimum thickness [mm]: 28
Machining: High-carbon
Weight [kg]: 11,10
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0130-0222.1 / 24013002221
BOSCH - 0 986 479 747 / 0986479747
BREMBO - 09.B970.11 / 09B97011
BREMBO - 09.B970.1X / 09B9701X
BREMBO - 59.E114.65 / 59E11465
ECORA - 4250238752905
FERODO - DDF1997C-1 / DDF1997C1
HELLA PAGID - 8DD 355 117-181 / 8DD355117181
HELLA PAGID - 8DD 355 129-221 / 8DD355129221
JURID - 562661JC-1 / 562661JC1
PORSCHE - 95B 615 301 B / 95B615301B
PORSCHE - 95B 615 301 M / 95B615301M
RAICAM - RD01462
TEXTAR - 92229205
TRW - DF6149S
VAG - 4G0 615 301 / 4G0615301
VAG - 4G0 615 301 AE / 4G0615301AE
VAG - 4G0 615 301 AF / 4G0615301AF
VAG - 4G0 615 301 G / 4G0615301G
VAG - 4G0 615 301 M / 4G0615301M
VAG - 4G0 615 301 Q / 4G0615301Q
VAG - 4G0 698 996 / 4G0698996
ZIMMERMANN - 100.3356.20 / 100335620
ZIMMERMANN - 100.3356.52 / 100335652
ZIMMERMANN - 100.3356.54 / 100335654
ZIMMERMANN - 100.3356.55 / 100335655

item specifications

Component: Braking System
Quantity Unit: Set
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Width [mm]: 188
Height 1 [mm]: 74
Height 2 [mm]: 74
Brake System: LUCAS/TRW
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 1

reference numbers - for comparison

BOSCH - 0 986 494 201 / 0986494201
BOSCH - 0 986 494 259 / 0986494259
BREMBO - 07.D435.21 / 07D43521
BREMBO - P 85 098 / P85098
BREMBO - P 85 098 / P85098
BREMBO - P 85 098X / P85098X
BREMBO - P 85 098X / P85098X
DELPHI - LP2077
ECORA - 4250238755470
EUROREPAR - 1617270480
EUROREPAR - 1639377380
FERODO - FDB4044
HELLA PAGID - 8DB 355 013-751 / 8DB355013751
JURID - 573247J
JURID - 573247JC
RAICAM - RA.0913.0 / RA09130
TEXTAR - 2474301
TRW - GDB1768
VAG - 8K0 698 151 / 8K0698151
VAG - 8K0 698 151 B / 8K0698151B
VAG - 8K0 698 151 D / 8K0698151D
VAG - 8K0 698 151 E / 8K0698151E
VAG - 8K0 698 151 G / 8K0698151G
VAG - 8K0 698 151 H / 8K0698151H
VAG - 8K0 698 151 J / 8K0698151J
VAG - 8K0 698 151 K / 8K0698151K
VAG - 8K0 698 151 R / 8K0698151R
VAG - 8R0 698 151 / 8R0698151
VALEO - 601342
ZIMMERMANN - 24409
ZIMMERMANN - 24743
ZIMMERMANN - 24743.190.3 / 247431903
ZIMMERMANN - 24743.990.3 / 247439903
ZIMMERMANN - D1322-8434 / D13228434
ZIMMERMANN - D1322-8434 / D13228434
febi bilstein - 16798
