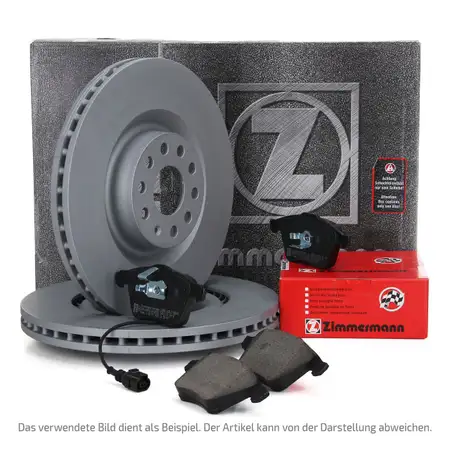

ZIMMERMANN Brake Discs + Pads + Wako for VW Multivan Transporter T5 T6 2E4 Front

ZIMMERMANN

Item No.: PKT562W039
Manufacturer: ZIMMERMANN
part number: 600.3249.20, 24623.180.2

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 600.3249.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24623.180.2

Free lightning shipping in DE from 90€
Prioritized ordering possible
questions about this product?
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 340
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 56
  • Brake Disc Thickness [mm]: 33
  • Minimum thickness [mm]: 28,5
  • Machining: High-carbon
  • Weight [kg]: 12,1
  • Centering Diameter [mm]: 76
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0133-0100.1 / 24013301001
  • ATE - 433100
  • BOSCH - 0 986 479 546 / 0986479546
  • BREMBO - 09.B498.10 / 09B49810
  • BREMBO - 09.B498.11 / 09B49811
  • DELPHI - BG9106
  • ECORA - 4250238754497
  • FERODO - DDF2182C
  • FERODO - DDF2182C-1 / DDF2182C1
  • HELLA PAGID - 8DD 355 129-251 / 8DD355129251
  • JURID - 562739JC
  • JURID - 562739JC-1 / 562739JC1
  • RAICAM - RD01470
  • TEXTAR - 92230305
  • TRW - DF6499S
  • VAG - 7E0 615 301 C / 7E0615301C
  • VAG - 7E0 615 301 F / 7E0615301F
  • VOLKSWAGEN - 7E0 615 301 F / 7E0615301F
  • ZIMMERMANN - 600.3249.20 / 600324920
  • ZIMMERMANN - 600.3249.52 / 600324952
  • ZIMMERMANN - 600.3249.54 / 600324954
  • ZIMMERMANN - 600.3249.55 / 600324955
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24623
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 18,2
  • Thickness [mm]: 18
  • Width [mm]: 193
  • Height [mm]: 75
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
  • Number of wear indicators [per axle]: 1
reference numbers - for comparison
  • ATE - 13.0460-7286.2 / 13046072862
  • BOSCH - 0 986 494 553 / 0986494553
  • BREMBO - P 85 141 / P85141
  • BREMBO - P 85 141 / P85141
  • DELPHI - LP2199
  • ECORA - 4250238759133
  • FERODO - FVR4302
  • HELLA PAGID - 8DB 355 014-981 / 8DB355014981
  • JURID - 573330J
  • RAICAM - RA.1064.0 / RA10640
  • TEXTAR - 2462301
  • TRW - GDB1887
  • VAG - 7E0 698 151 / 7E0698151
  • VAG - 7E0 698 151 B / 7E0698151B
  • VAG - 7E0 698 151 C / 7E0698151C
  • VAG - 7E0 698 151 D / 7E0698151D
  • VALEO - 601124
  • ZIMMERMANN - 24623
  • ZIMMERMANN - 24623.180.2 / 246231802
  • ZIMMERMANN - 24624
  • ZIMMERMANN - 24625
  • febi bilstein - 16824
