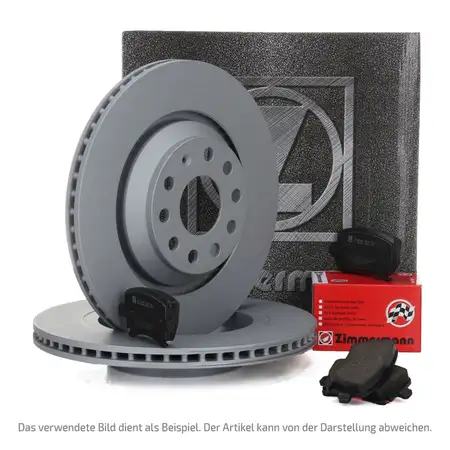

ZIMMERMANN Brake Discs + Pads for VW Multivan Transporter T5 T6 PR-2E3/2E4 (Rear)

ZIMMERMANN Brake Discs + Pads for VW Multivan Transporter T5 T6 PR-2E3/2E4 (Rear)

Item No.: PKT462W146
Manufacturer: ZIMMERMANN
part number: 600.3232.20, 23882.175.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 600.3232.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23882.175.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Rear Axle
Outer Diameter [mm]: 294
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 44
Brake Disc Thickness [mm]: 22
Minimum thickness [mm]: 19,5
Machining: High-carbon
Weight [kg]: 6,94
Centering Diameter [mm]: 77
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0122-0211.1 / 24012202111
BOSCH - 0 986 479 S06 / 0986479S06
BREMBO - 09.9582.11 / 09958211
ECORA - 4250238744986
FERODO - DDF1286C
HELLA PAGID - 8DD 355 109-701 / 8DD355109701
HELLA PAGID - 8DD 355 128-031 / 8DD355128031
HERTH+BUSS JAKOPARTS - J3310817
HERTH+BUSS JAKOPARTS - J3310817
JURID - 562262JC
RAICAM - RD00922
SHW Performance - VRX37117
TEXTAR - 92121403
TRW - DF4312
VAG - 7E0 615 601 D / 7E0615601D
VAG - 7H0 615 601 B / 7H0615601B
VOLKSWAGEN - 7E0 615 601 D / 7E0615601D
ZIMMERMANN - 600.3232.20 / 600323220
ZIMMERMANN - 600.3232.52 / 600323252

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23882
Fitting Position: Rear Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 18
Width [mm]: 116
Height [mm]: 59
Brake System: LUCAS-GIRLING
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-2888.2 / 13046028882
ATE - 13.0460-2889.2 / 13046028892
ATE - 13.0470-2888.2 / 13047028882
AUDI - 4B3 698 451 / 4B3698451
AUDI - 4B3 698 451 A / 4B3698451A
AUDI - 4E4 698 451 A / 4E4698451A
AUDI - 4F0 698 451 / 4F0698451
AUDI - 4F0 698 451 F / 4F0698451F
AUDI - 8E0 698 451 C / 8E0698451C
AUDI - 8E0 698 451 H / 8E0698451H
AUDI - 8E0 698 451 N / 8E0698451N
AUDI - 8E0 698 451 P / 8E0698451P
BOSCH - 0 986 494 303 / 0986494303
BREMBO - 07.B315.00 / 07B31500
BREMBO - P 85 076 / P85076
BREMBO - P 85 076 / P85076
BREMBO - P 85 143 / P85143
BREMBO - P 85 143 / P85143
ECORA - 4250238739838
FERODO - FDB1655
HELLA PAGID - 8DB 355 010-971 / 8DB355010971
HELLA PAGID - 8DB 355 015-951 / 8DB355015951
JURID - 573219J
RAICAM - RA.0819.1 / RA08191
TEXTAR - 2332601
TEXTAR - 2332607
TRW - GDB1516
VAG - 4B3 698 451 / 4B3698451
VAG - 4B3 698 451 A / 4B3698451A
VAG - 4E0 698 451 / 4E0698451
VAG - 4E4 698 451 A / 4E4698451A
VAG - 4F0 698 451 / 4F0698451
VAG - 4F0 698 451 F / 4F0698451F
VAG - 4F0 698 451 G / 4F0698451G
VAG - 4F0 698 451 H / 4F0698451H
VAG - 4F0 698 451 M / 4F0698451M
VAG - 7E0 698 451 A / 7E0698451A
VAG - 7E0 698 451 D / 7E0698451D
VAG - 7H0 698 451 A / 7H0698451A
VAG - 7H0 698 451 B / 7H0698451B
VAG - 8E0 698 451 C / 8E0698451C
VAG - 8E0 698 451 N / 8E0698451N
VAG - 8E0 698 451 P / 8E0698451P
VOLKSWAGEN - 4F0 698 451 G / 4F0698451G
VOLKSWAGEN - 4F0 698 451 M / 4F0698451M
VOLKSWAGEN - 7E0 698 451 A / 7E0698451A
VOLKSWAGEN - 7E0 698 451 D / 7E0698451D
VOLKSWAGEN - 7H0 698 451 B / 7H0698451B
ZIMMERMANN - 23326
ZIMMERMANN - 23882
ZIMMERMANN - 23882.175.1 / 238821751
ZIMMERMANN - D1018-7921 / D10187921
ZIMMERMANN - D1018-7921 / D10187921
