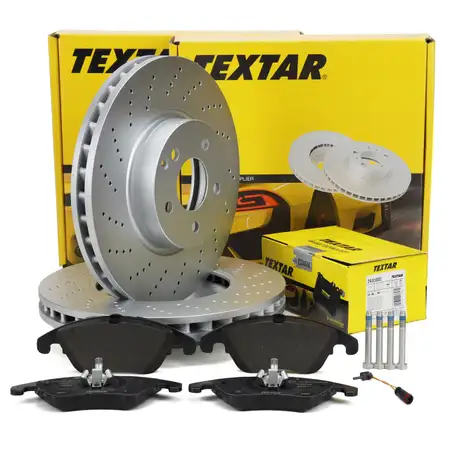

TEXTAR Brake Discs + Brake Pads + 1x Sensor for MERCEDES W204, S204, W212, S212, C207 (Front)

TEXTAR Brake Discs + Brake Pads + 1x Sensor for MERCEDES W204, S204, W212, S212, C207 (Front)

Item No.: PKT252W332
Manufacturer: TEXTAR, CARIPAR
part number: 92163405, 2431001, GBK 415

Items included:

2x Brake Disc Piece - TEXTAR 92163405
1x Brake Pad Set, disc brake Set - TEXTAR 2431001
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 415

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 322
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 64,5
Brake Disc Thickness [mm]: 32
Minimum thickness [mm]: 30
Inner Diameter [mm]: 154,2
Machining: High-carbon
Weight [kg]: 10,7
Centering Diameter [mm]: 67
Wheel Bolt Bore Diameter [mm]: 15,3
Packaging length [cm]: 35,8
Packaging width [cm]: 35,8
Packaging height [cm]: 8,5

reference numbers - for comparison

ATE - 24.0132-0100.1 / 24013201001
BOSCH - 0 986 479 408 / 0986479408
BREMBO - 09.A621.31 / 09A62131
BREMBO - 59.E114.91 / 59E11491
ECORA - 4019722476532
FERODO - DDF1694C-1 / DDF1694C1
HELLA PAGID - 8DD 355 114-231 / 8DD355114231
HELLA PAGID - 8DD 355 128-791 / 8DD355128791
HERTH+BUSS JAKOPARTS - J3300851
HERTH+BUSS JAKOPARTS - J3300851
JURID - 562634JC-1 / 562634JC1
MERCEDES-BENZ - 000 421 1112 / 0004211112
MERCEDES-BENZ - 000 421 1112 07 / 000421111207
MERCEDES-BENZ - 000 421 30 12 / 0004213012
MERCEDES-BENZ - 000 421 3012 07 / 000421301207
MERCEDES-BENZ - 204 421 1012 / 2044211012
MERCEDES-BENZ - 204 421 1012 39 / 204421101239
MERCEDES-BENZ - A 000 421 1112 / A0004211112
MERCEDES-BENZ - A 000 421 1112 / A0004211112
MERCEDES-BENZ - A 000 421 1112 07 / A000421111207
MERCEDES-BENZ - A 000 421 1112 07 / A000421111207
MERCEDES-BENZ - A 000 421 3012 / A0004213012
MERCEDES-BENZ - A 000 421 3012 / A0004213012
MERCEDES-BENZ - A 000 421 3012 07 / A000421301207
MERCEDES-BENZ - A 000 421 3012 07 / A000421301207
MERCEDES-BENZ - A 204 421 1012 / A2044211012
MERCEDES-BENZ - A 204 421 1012 / A2044211012
MERCEDES-BENZ - A 204 421 1012 39 / A204421101239
MERCEDES-BENZ - A 204 421 1012 39 / A204421101239
RAICAM - RD01075
TEXTAR - 92163403
TEXTAR - 92163405
TRW - DF4862S
ZIMMERMANN - 400.3654.53 / 400365453
ZIMMERMANN - 400365420

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24310
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 19,4
Width [mm]: 188
Height 1 [mm]: 73,3
Height 2 [mm]: 80,3
Brake System: Lucas
Weight [kg]: 2,65
Observe assembly information:
directional:
Packaging length [cm]: 20,9
Packaging width [cm]: 13,4
Packaging height [cm]: 8,8

reference numbers - for comparison

ATE - 13046027342
ATE - 13047027342
ATE - 602734
ATE - LD2734
BLUE PRINT - ADU174201
BOSCH - 0986494263
BOSCH - 0986AB1726
BOSCH - 0986TB3152
BOSCH - BE1342
BOSCH - BE1342H
BOSCH - BP1342
BREMBO - 07D43508
BREMBO - P50069
BREMBO - P50069
BREMBO - P50069N
BREMBO - P50069N
BREMBO - P50069NX
BREMBO - P50069NX
BREMBO - P50069X
BREMBO - P50069X
CHAMPION - 573291CH
DELPHI - LP2099
DELPHI - LP209914B1
DELPHI - LP209917B1
DELPHI - LP2099N18B1
DELPHI - LP2099ND19B1
ECORA - 4019722286131
EUROREPAR - 1623060580
EUROREPAR - 1635139080
FERODO - FDB1979
FERODO - FDB1979D
FERODO - FDB1979S
FERODO - FSL1979
FERODO - HQF2408C
FTE - 9001168
FTE - 9010616
FTE - BL2030A4
FTE - PBW477BLA
HELLA - 355012611
HELLA - 355012621
HELLA - 355026161
HELLA - 355032201
HELLA - 8DB355012611
HELLA - 8DB355012621
HELLA - 8DB355026161
HELLA - 8DB355032201
HELLA PAGID - 355012621
HELLA PAGID - 355026161
HELLA PAGID - 355032201
HELLA PAGID - 8DB355012611
HELLA PAGID - 8DB355012621
HELLA PAGID - 8DB355026161
HELLA PAGID - 8DB355032201
HERTH+BUSS JAKOPARTS - J3600871
HERTH+BUSS JAKOPARTS - J3600871
JP Group - 1363601410
JURID - 573291J
JURID - 573291JC
JURID - 573291JD
MAGNETI MARELLI - 363700201624
MAGNETI MARELLI - 363700450069
MAGNETI MARELLI - T1624MM
MAGNETI MARELLI - T1624MM
MERCEDES-BENZ - 000 420 90 04 / 0004209004
MERCEDES-BENZ - 0004200105
MERCEDES-BENZ - 0054201020
MERCEDES-BENZ - 0054201320
MERCEDES-BENZ - 0054201620
MERCEDES-BENZ - 0064202820
MERCEDES-BENZ - 007 420 75 20 / 0074207520
MERCEDES-BENZ - 0074205820
MERCEDES-BENZ - A0004200105
MERCEDES-BENZ - A0004200105
MERCEDES-BENZ - A0004209004
MERCEDES-BENZ - A0004209004
MERCEDES-BENZ - A0054201020
MERCEDES-BENZ - A0054201020
MERCEDES-BENZ - A0054201320
MERCEDES-BENZ - A0054201320
MERCEDES-BENZ - A0054201620
MERCEDES-BENZ - A0054201620
MERCEDES-BENZ - A0064202820
MERCEDES-BENZ - A0064202820
MERCEDES-BENZ - A0074205820
MERCEDES-BENZ - A0074205820
MERCEDES-BENZ - A0074207520
MERCEDES-BENZ - A0074207520
METZGER - 1170509
METZGER - 130400
MEYLE - 0252431019
MEYLE - 0252431019PD
MEYLE - MBP0566
MEYLE - MBP0566PD
OPTIMAL - 12453
OPTIMAL - BP12453
PAGID - T1624
PAGID - T1624
PAGID - T1624N
PAGID - T1624N
RAICAM - 9140
RAICAM - 9141
RAICAM - RA09140
RAICAM - RA09141
TEXTAR - 2431001
TEXTAR - 2431001CP
TEXTAR - 2431005
TEXTAR - 2431081
TEXTAR - 24456
TEXTAR - 8453D1342
TRW - GDB1737
TRW - GDB1737BTE
TRW - GDB1737DTE
VAICO - V308206
VAICO - V308206
VALEO - 208169
VALEO - 302160
VALEO - 302160A
VALEO - 601388
VALEO - 610348
VALEO - 670388
ZIMMERMANN - 243101901
ZIMMERMANN - 243109901
febi bilstein - 16777

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Rear Axle
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24819004102
ATE - 620410
BOSCH - 1 987 473 070 / 1987473070
BOSCH - 1 987 474 966 / 1987474966
BREMBO - A 00 274 / A00274
BREMBO - A 00 274 / A00274
BREMBO - A 00 377 / A00377
BREMBO - A 00 377 / A00377
Caripar - GBK 415 / GBK415
DELPHI - LZ0153
FERODO - FWI261
FERODO - FWI261/1 / FWI2611
FTE - BZ1072W
FTE - BZ1072W-SET / BZ1072WSET
HELLA - 8DK 355 250-381 / 8DK355250381
HELLA - 8DK 355 252-001 / 8DK355252001
HELLA PAGID - 8DK 355 250-381 / 8DK355250381
HELLA PAGID - 8DK 355 252-001 / 8DK355252001
JURID - 581379
JURID - 581379J
MERCEDES-BENZ - 211 540 17 17 / 2115401717
MERCEDES-BENZ - 220 540 06 17 / 2205400617
MERCEDES-BENZ - 220 540 07 17 / 2205400717
MERCEDES-BENZ - A 211 540 17 17 / A2115401717
MERCEDES-BENZ - A 211 540 17 17 / A2115401717
MERCEDES-BENZ - A 220 540 06 17 / A2205400617
MERCEDES-BENZ - A 220 540 06 17 / A2205400617
MERCEDES-BENZ - A 220 540 07 17 / A2205400717
MERCEDES-BENZ - A 220 540 07 17 / A2205400717
PAGID - P8035
PAGID - P8035
PAGID - P8612
PAGID - P8612
TEXTAR - 96990 0247 0 1 / 96990024701
TEXTAR - 98024700
TEXTAR - 98024701
TRW - GIC172
TRW - GIC184
TRW - GIC336
TRW - GIC398
febi bilstein - 19186
