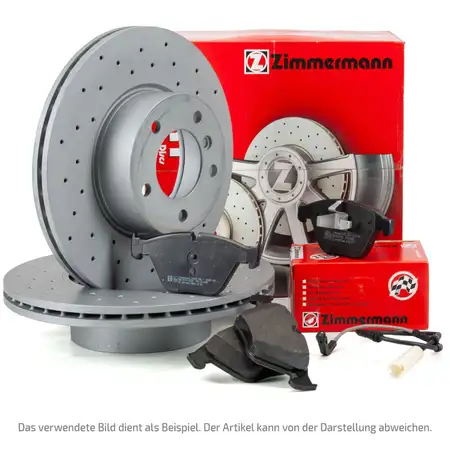

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series F20, 3 Series F30-34, 4 Series F32-36 (Front)

ZIMMERMANN CARIPAR

Item No.: PKT562W949
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3497.52, 24912.185.1, GBK 444

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 150.3497.52
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24912.185.1
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 444

Free lightning shipping in DE from 90€
Prioritized ordering possible
questions about this product?
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 300
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 73
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20,4
  • Machining: High-carbon
  • Weight [kg]: 7,40
  • Centering Diameter [mm]: 79
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0122-0278.1 / 24012202781
  • BMW - 3411 6 792 217 / 34116792217
  • BOSCH - 0 986 479 A18 / 0986479A18
  • BREMBO - 09.C114.11 / 09C11411
  • BREMBO - 09.C114.1X / 09C1141X
  • BREMBO - 09.C114.75 / 09C11475
  • BREMBO - 59.E115.40 / 59E11540
  • ECORA - 4250238758846
  • FERODO - DDF2195C
  • HELLA PAGID - 8DD 355 118-041 / 8DD355118041
  • HELLA PAGID - 8DD 355 129-401 / 8DD355129401
  • JURID - 562976JC
  • RAICAM - RD01200
  • TEXTAR - 92238505
  • TRW - DF6143S
  • ZIMMERMANN - 150.3497.20 / 150349720
  • ZIMMERMANN - 150.3497.52 / 150349752
  • ZIMMERMANN - 150.3497.53 / 150349753
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24912
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 18
  • Width 1 [mm]: 156
  • Height 1 [mm]: 62
  • Brake System: BOSCH
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-3866.2 / 13046038662
  • BMW - 3411 6 850 568 / 34116850568
  • BOSCH - 0 986 494 689 / 0986494689
  • BREMBO - P 06 070 / P06070
  • BREMBO - P 06 070 / P06070
  • BREMBO - P 06 070X / P06070X
  • BREMBO - P 06 070X / P06070X
  • DELPHI - LP2285
  • ECORA - 4250238756224
  • FERODO - FDB4489
  • HELLA PAGID - 8DB 355 019-771 / 8DB355019771
  • JURID - 573419J
  • RAICAM - RA.1015.0 / RA10150
  • TEXTAR - 2550601
  • TRW - GDB1934
  • VALEO - 601310
  • ZIMMERMANN - 24912.185.1 / 249121851
  • ZIMMERMANN - 25506
  • ZIMMERMANN - 25507
  • ZIMMERMANN - D1922-9147 / D19229147
  • ZIMMERMANN - D1922-9147 / D19229147
  • febi bilstein - 16884
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle Left
reference numbers - for comparison
  • ATE - 24.8190-0006.2 / 24819000062
  • ATE - 620006
  • BMW - 34 35 6 792 289 / 34356792289
  • BOSCH - 1 987 474 550 / 1987474550
  • BREMBO - A 00 473 / A00473
  • BREMBO - A 00 473 / A00473
  • Caripar - GBK 444 / GBK444
  • DELPHI - LZ0239
  • HELLA PAGID - 8DK 355 252-341 / 8DK355252341
  • JURID - 581472
  • PAGID - P8629
  • PAGID - P8629
  • TEXTAR - 98047500
  • febi bilstein - 39138
Name:
OTTO ZIMMERMANN GMBH
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
manufacturer model type power capacity constr. date kba limitations
