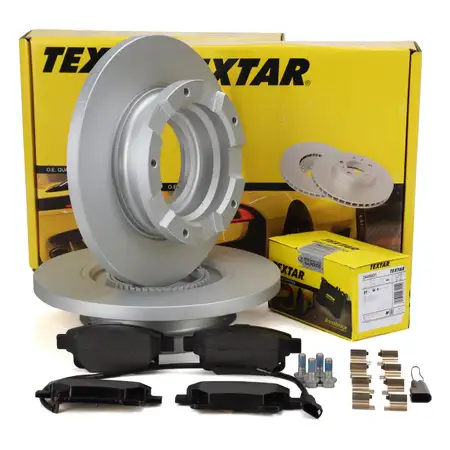

TEXTAR Brake Discs + Pads Sensor for FORD Transit/Tourneo 260280300330350430 (Rear)

TEXTAR Brake Discs + Pads Sensor for FORD Transit/Tourneo 260280300330350430 (Rear)

Item No.: PKT962W007
Manufacturer: TEXTAR
part number: 92159103, 2448601

Items included:

2x Brake Disc Piece - TEXTAR 92159103
1x Brake Pad Set, disc brake Set - TEXTAR 2448601

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: solid
Fitting Position: Rear Axle
Outer Diameter [mm]: 280
Hole Arrangement/Number: 05/05
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Supplementary Article/Supplementary Info 2: with ABS sensor ring
Bolt Hole Circle Ø [mm]: 160
Height [mm]: 68,8
Brake Disc Thickness [mm]: 16
Minimum thickness [mm]: 13
Inner Diameter [mm]: 1
Weight [kg]: 8,3
Centering Diameter [mm]: 96
Wheel Bolt Bore Diameter [mm]: 10
Number of Teeth, ABS ring: 48
Packaging length [cm]: 30,3
Packaging width [cm]: 30,3
Packaging height [cm]: 8,6

reference numbers - for comparison

ATE - 24011601162
ATE - 24011602161
ATE - 416116
ATE - 416216
BLUE PRINT - ADF124318
BOSCH - 0986479389
BOSCH - 0986479401
BOSCH - 0986AB5696
BOSCH - F026A09570
BOSCH - F026A09570
BREMBO - 08A73010
BREMBO - 08A73020
CHAMPION - 562638CH1
DELPHI - BG4008
ECORA - 4019722549670
EUROREPAR - 1642778880
EUROREPAR - 1686721980
FERODO - DDF1573
FERODO - DDF15731
FERODO - DDF1573C
FORD - 1371421
FORD - 1387152
FORD - 1451161
FORD - 2256895
FORD - 6C112A097AB
FORD - 6C112A315BA
FORD - 6C112A315BB
FORD - ME6C1J2A097AB
FTE - 9071221
FTE - 9081105
FTE - BS7403S
FTE - BS7403SB
HELLA - 355113811
HELLA - 8DD355113811
HELLA PAGID - 355113811
HELLA PAGID - 8DD355113811
JP Group - 1563200300
JURID - 562638J1
JURID - 562638JC
JURID - 562638JC1
MAGNETI MARELLI - 361302040345
MAGNETI MARELLI - 361302040655
METZGER - 6110205
MEYLE - 7155230013
MEYLE - 7155230013PD
OPTIMAL - BS8266
OPTIMAL - BS8266C
PAGID - 54591
PAGID - 54591NC
PAGID - 54591PRO
PAGID - T1642N54591N00
PAGID - T1642N54591N00
TEXTAR - 2448601159100
TEXTAR - 4019722549670
TEXTAR - 92159100
TEXTAR - 92159103
TEXTAR - 98200159101
TRW - DF4821S
VAICO - V2540012
VAICO - V2540012
VALEO - 197765
VALEO - 672917
ZIMMERMANN - 250135800
ZIMMERMANN - 250135820
ZIMMERMANN - 250135870
ZIMMERMANN - 250135872
ZIMMERMANN - 250135875
febi bilstein - 40783

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24486
Fitting Position: Rear Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 17,3
Width [mm]: 122,8
Height [mm]: 54,1
Brake System: Bosch
Weight [kg]: 1,3
Number of wear indicators [per axle]: 2
Observe assembly information:
Packaging length [cm]: 15,2
Packaging width [cm]: 8,8
Packaging height [cm]: 8,4

reference numbers - for comparison

ATE - 13046038352
ATE - 603835
BLUE PRINT - ADF124221
BOSCH - 0986494171
BOSCH - 0986494614
BOSCH - 0986495281
BOSCH - 0986BB0992
BOSCH - 0986TB2983
BOSCH - BP1082
BREMBO - P24066
BREMBO - P24066
BREMBO - P24066G
BREMBO - P24066G
BREMBO - P24066N
BREMBO - P24066N
CHAMPION - 573277CH
DELPHI - LP1955
DELPHI - LP1955LC
DELPHI - LP1955N18B1
ECORA - 4019722282010
EUROREPAR - 1617286280
EUROREPAR - 1686275380
FERODO - FSL1930
FERODO - FVR1930
FERODO - FVR1930D
FERODO - FVR1930W
FERODO - HQF2262AC
FERODO - HQF2262C
FORD - 1 560 026 / 1560026
FORD - 1 824 348 / 1824348
FORD - 1 852 717 / 1852717
FORD - 1371454
FORD - 1433958
FORD - 1530602
FORD - 1554524
FORD - 1819638
FORD - 6C112M008AB
FORD - 6C112M008AC
FORD - 6C112M008AD
FORD - 6C112M008AE
FORD - 6C112M008AF
FORD - 6C1Z2200C
FORD - ME6C1J2M008AA
FORD - ME6C1J2M008AB
FORD - ME6C1J2M008AC
FORD USA - 1 560 026 / 1560026
FORD USA - 1 824 348 / 1824348
FORD USA - 1 852 717 / 1852717
FTE - 9010631
FTE - BL2045A4
HELLA - 355012781
HELLA - 355030891
HELLA - 8DB355012781
HELLA - 8DB355030891
HELLA PAGID - 355012781
HELLA PAGID - 355030891
HELLA PAGID - 8DB355012781
HELLA PAGID - 8DB355030891
HERTH+BUSS JAKOPARTS - J3610809
HERTH+BUSS JAKOPARTS - J3610809
JP Group - 1563700110
JURID - 573277
JURID - 573277D
JURID - 573277J
JURID - 573277JD
MAGNETI MARELLI - 323700003300
MAGNETI MARELLI - 363700201642
MAGNETI MARELLI - 363700424066
MAGNETI MARELLI - 363702161478
MAGNETI MARELLI - T1642MM
MAGNETI MARELLI - T1642MM
METZGER - 1170138
METZGER - 125202
MEYLE - 0252448617PD
MEYLE - 0252448617W
MEYLE - 252448617
MEYLE - MBP0606
MEYLE - MBP0816PD
OPTIMAL - 12298
OPTIMAL - BP12298
PAGID - T1642
PAGID - T1642
PAGID - T1642N
PAGID - T1642N
TEXTAR - 24486
TEXTAR - 24486 173 1 5 / 2448617315
TEXTAR - 2448601
TEXTAR - 25918
TEXTAR - 8701D1502
TEXTAR - 8866D1639
TRW - GDB1725
TRW - RCPT13370
VAICO - V258127
VAICO - V258127
VALEO - 208501
VALEO - 301738
VALEO - 301738A
VALEO - 541736
VALEO - 601111
VALEO - 670736
VALEO - 872086
VALEO - 872486
ZIMMERMANN - 244861701
febi bilstein - 16701

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
