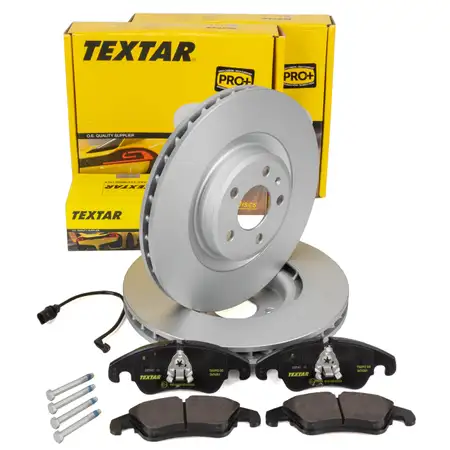

TEXTAR Brake Discs + Pads + Sensor for AUDI A4 S4 B8 S5 8T 8F PR-1LJ (up to June 2011) – Front

TEXTAR Brake Discs + Pads + Sensor for AUDI A4 S4 B8 S5 8T 8F PR-1LJ (up to June 2011) – Front

TEXTAR

Item No.: PKT862W989
Manufacturer: TEXTAR
part number: 92160205, 2474301

Items included:
  • 2x Brake Disc Piece - TEXTAR 92160205
  • 1x Brake Pad Set, disc brake Set - TEXTAR 2474301

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 345
  • Hole Arrangement/Number: 05/06
  • Surface: Coated
  • Supplementary Article/Supplementary Info 2: without wheel hub
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Supplementary Article/Supplementary Info 2: without wheel studs
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 51,8
  • Brake Disc Thickness [mm]: 29,3
  • Minimum thickness [mm]: 28
  • Inner Diameter [mm]: 153,9
  • Machining: High-carbon
  • Weight [kg]: 10,7
  • Centering Diameter [mm]: 68
  • Wheel Bolt Bore Diameter [mm]: 15,3
  • Packaging length [cm]: 35,8
  • Packaging width [cm]: 35,8
  • Packaging height [cm]: 8,5
reference numbers - for comparison
  • ATE - 24012901021
  • ATE - 429102
  • AUDI - 8K0615301B
  • AUDI - 8K0615301E
  • AUDI - 8K0615301K
  • AUDI - 8K0615301M
  • AUDI - 8K0615301Q
  • BLUE PRINT - ADV184316
  • BOSCH - 0986479590
  • BREMBO - 09B03910
  • BREMBO - 09B03911
  • BREMBO - 09B0391S
  • BREMBO - 09B0391X
  • BREMBO - 59E11446
  • BREMBO - 59E11465
  • BREMBO - FD223000
  • CHAMPION - 562888CH1
  • DELPHI - BG9052
  • ECORA - 4019722475450
  • EUROREPAR - 1636909480
  • EUROREPAR - 1642755080
  • EUROREPAR - 1684245680
  • FERODO - DDF1665
  • FERODO - DDF16651
  • FERODO - DDF1665C
  • FERODO - DDF1665C1
  • FERODO - DDF1665CD
  • FTE - 9071022
  • FTE - 9081045
  • FTE - BS7700
  • FTE - BS7700B
  • HELLA - 355113941
  • HELLA - 355113951
  • HELLA - 355121411
  • HELLA - 355122882
  • HELLA - 355124061
  • HELLA - 355128731
  • HELLA - 8DD355113941
  • HELLA - 8DD355113951
  • HELLA - 8DD355121411
  • HELLA - 8DD355122882
  • HELLA - 8DD355124061
  • HELLA - 8DD355128731
  • HELLA PAGID - 355113941
  • HELLA PAGID - 355113951
  • HELLA PAGID - 355121411
  • HELLA PAGID - 355122882
  • HELLA PAGID - 355124061
  • HELLA PAGID - 355128731
  • HELLA PAGID - 8DD355113941
  • HELLA PAGID - 8DD355113951
  • HELLA PAGID - 8DD355121411
  • HELLA PAGID - 8DD355122882
  • HELLA PAGID - 8DD355124061
  • HELLA PAGID - 8DD355128731
  • JP Group - 1163113600
  • JURID - 562661JC
  • JURID - 562888JC1
  • METZGER - 6110613
  • MEYLE - 1155211118
  • MEYLE - 1155211118PD
  • MEYLE - 1835211118PD
  • OPTIMAL - BS8508
  • OPTIMAL - BS8508C
  • OPTIMAL - BS8508HC
  • PAGID - 54602
  • PAGID - 54602NHC
  • PAGID - 54602PRO
  • PAGID - T1748N54602N00
  • PAGID - T1748N54602N00
  • PAGID - T2521N54602N00
  • PAGID - T2521N54602N00
  • SEAT - 8K0615301B
  • SEAT - 8K0615301E
  • SEAT - 8K0615301K
  • SEAT - 8K0615301M
  • SEAT - 8K0615301Q
  • SKODA - 8K0615301B
  • SKODA - 8K0615301E
  • SKODA - 8K0615301K
  • SKODA - 8K0615301M
  • SKODA - 8K0615301Q
  • TEXTAR - 2440903160200
  • TEXTAR - 2474301160200
  • TEXTAR - 4019722475450
  • TEXTAR - 4019722618048
  • TEXTAR - 92160200
  • TEXTAR - 92160203
  • TEXTAR - 92160205
  • TEXTAR - 98200160201
  • TOPRAN - 113008
  • TRUCKTEC AUTOMOTIVE - 0735253
  • TRW - DF6014S
  • VAICO - V1080094
  • VAICO - V1080094
  • VALEO - 197689
  • VALEO - 673267
  • VOLKSWAGEN - 8K0615301B
  • VOLKSWAGEN - 8K0615301E
  • VOLKSWAGEN - 8K0615301K
  • VOLKSWAGEN - 8K0615301M
  • VOLKSWAGEN - 8K0615301Q
  • ZIMMERMANN - 100333220
  • ZIMMERMANN - 100333252
  • ZIMMERMANN - 100333254
  • ZIMMERMANN - 100333255
  • ZIMMERMANN - 100333270
  • ZIMMERMANN - 100333272
  • ZIMMERMANN - 100333275
  • febi bilstein - 36236
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24743
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info 2: with brake caliper screws
  • Thickness [mm]: 19,4
  • Width [mm]: 188,2
  • Height 1 [mm]: 73,5
  • Height 2 [mm]: 73,9
  • Brake System: Lucas
  • Weight [kg]: 2,72
  • Number of wear indicators [per axle]: 1
  • Observe assembly information:
  • Packaging length [cm]: 20,9
  • Packaging width [cm]: 13,4
  • Packaging height [cm]: 8,8
reference numbers - for comparison
  • ATE - 13046027462
  • ATE - 13047027462
  • ATE - 602746
  • ATE - LD2746
  • AUDI - 4GD698151
  • AUDI - 8K0698151
  • AUDI - 8K0698151B
  • AUDI - 8K0698151D
  • AUDI - 8K0698151E
  • AUDI - 8K0698151G
  • AUDI - 8K0698151H
  • AUDI - 8K0698151J
  • AUDI - 8K0698151K
  • AUDI - 8K0698151R
  • AUDI - 8K0698151T
  • AUDI - 8R0698151
  • AUDI - 8R0698151AG
  • AUDI - L4GD698151
  • AUDI - L4GD698151
  • BLUE PRINT - ADV184210
  • BLUE PRINT - ADV184212
  • BOSCH - 0986494201
  • BOSCH - 0986494259
  • BOSCH - 0986T11909
  • BOSCH - 0986T14733
  • BOSCH - 0986TB3165
  • BOSCH - BC1322
  • BOSCH - BP1322
  • BOSCH - F03B175876
  • BOSCH - F03B175876
  • BREMBO - 07D43521
  • BREMBO - P85098
  • BREMBO - P85098
  • BREMBO - P85098N
  • BREMBO - P85098N
  • BREMBO - P85098X
  • BREMBO - P85098X
  • DELPHI - LP2077
  • DELPHI - LP207714B1
  • DELPHI - LP207719B1
  • DELPHI - LP2077N18B1
  • ECORA - 4019722296499
  • EUROREPAR - 1681209580
  • FERODO - FDB4044
  • FERODO - FDB4044D
  • FERODO - FSL4044
  • FTE - BL2550A1
  • HELLA - 355013751
  • HELLA - 355023571
  • HELLA - 355026221
  • HELLA - 8DB355013751
  • HELLA - 8DB355023571
  • HELLA - 8DB355026221
  • HELLA PAGID - 355013751
  • HELLA PAGID - 355023571
  • HELLA PAGID - 355026221
  • HELLA PAGID - 8DB355013751
  • HELLA PAGID - 8DB355023571
  • HELLA PAGID - 8DB355026221
  • JURID - 573247J
  • JURID - 573247JAS
  • JURID - 573247JC
  • JURID - 573247JD
  • MAGNETI MARELLI - 363700201748
  • MAGNETI MARELLI - T1748MM
  • MAGNETI MARELLI - T1748MM
  • METZGER - 1170127
  • METZGER - 130431
  • MEYLE - 0252474319PD
  • MEYLE - 0252474319W
  • MEYLE - MBP0662
  • MEYLE - MBP0837PD
  • OPTIMAL - 12442
  • OPTIMAL - BP12442
  • PAGID - T1748
  • PAGID - T1748
  • PAGID - T1748N
  • PAGID - T1748N
  • RAICAM - 9130
  • RAICAM - RA09130
  • SEAT - 8K0698151
  • SEAT - 8K0698151B
  • SEAT - 8K0698151D
  • SEAT - 8K0698151E
  • SEAT - 8K0698151G
  • SEAT - 8K0698151H
  • SEAT - 8K0698151J
  • SEAT - 8K0698151K
  • SEAT - 8R0698151
  • SKODA - 8K0698151
  • SKODA - 8K0698151B
  • SKODA - 8K0698151D
  • SKODA - 8K0698151E
  • SKODA - 8K0698151G
  • SKODA - 8K0698151H
  • SKODA - 8K0698151J
  • SKODA - 8K0698151K
  • SKODA - 8R0698151
  • TEXTAR - 24743 194 1 5 / 2474319415
  • TEXTAR - 2474301
  • TEXTAR - 2474301CP
  • TEXTAR - 2474305
  • TEXTAR - 2474381
  • TEXTAR - 8434D1322
  • TRW - GDB1768
  • TRW - GDB1768BTE
  • TRW - GDB1768DTE
  • TRW - GDB1805
  • TRW - GDB1908
  • TRW - GDB1916
  • TRW - GDB1916DTE
  • VAG - 8K0 698 151 B / 8K0698151B
  • VAG - 8K0 698 151 E / 8K0698151E
  • VAG - 8K0 698 151 H / 8K0698151H
  • VAG - 8K0 698 151 R / 8K0698151R
  • VAICO - V102458
  • VAICO - V102458
  • VAICO - V108304
  • VAICO - V108304
  • VALEO - 302412
  • VALEO - 601279
  • VALEO - 604002
  • VALEO - 670122
  • VOLKSWAGEN - 8K0 698 151 B / 8K0698151B
  • VOLKSWAGEN - 8K0 698 151 E / 8K0698151E
  • VOLKSWAGEN - 8K0 698 151 H / 8K0698151H
  • VOLKSWAGEN - 8K0 698 151 R / 8K0698151R
  • VOLKSWAGEN - 8K0698151
  • VOLKSWAGEN - 8K0698151D
  • VOLKSWAGEN - 8K0698151G
  • VOLKSWAGEN - 8K0698151J
  • VOLKSWAGEN - 8K0698151K
  • VOLKSWAGEN - 8R0698151
  • ZIMMERMANN - 247431901
  • ZIMMERMANN - 247431903
  • ZIMMERMANN - 247439901
  • ZIMMERMANN - 247439903
  • febi bilstein - 116021
  • febi bilstein - 16798
