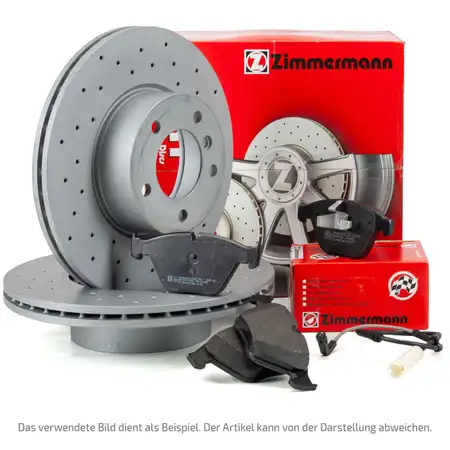

Zimmermann SPORT brake discs + Pads + Wako for BMW X4 F26 M40i 360 hp (front)

Zimmermann SPORT brake discs + Pads + Wako for BMW X4 F26 M40i 360 hp (front)

ZIMMERMANN CARIPAR

Item No.: PKT672W102
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2949.52, 150.2950.52, 24170.195.1, GBK 428

Items included:
  • 1x Brake Disc Piece - ZIMMERMANN 150.2949.52
  • 1x Brake Disc Piece - ZIMMERMANN 150.2950.52
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24170.195.1
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 428

Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle Left
  • Outer Diameter [mm]: 348
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 73
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28,4
  • Machining: High-carbon
  • Weight [kg]: 12,4
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0130-0249.1 / 24013002491
  • BMW - 3411 6 871 799 / 34116871799
  • DELPHI - BG9344C
  • ECORA - 4250238768937
  • HELLA PAGID - 8DD 355 133-181 / 8DD355133181
  • TEXTAR - 92320405
  • ZIMMERMANN - 150.2949.20 / 150294920
  • ZIMMERMANN - 150.2949.52 / 150294952
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Fitting Position: Front Axle Right
  • Outer Diameter [mm]: 348
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 73
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28,4
  • Machining: High-carbon
  • Weight [kg]: 12,4
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0130-0250.1 / 24013002501
  • BMW - 3411 6 871 800 / 34116871800
  • DELPHI - BG9345C
  • ECORA - 4250238768944
  • HELLA PAGID - 8DD 355 133-201 / 8DD355133201
  • TEXTAR - 92320505
  • ZIMMERMANN - 150.2950.20 / 150295020
  • ZIMMERMANN - 150.2950.52 / 150295052
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24170
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 20
  • Width 1 [mm]: 171
  • Width 2 [mm]: 170
  • Height [mm]: 77
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-7231.2 / 13046072312
  • ATE - 13.0470-7231.2 / 13047072312
  • BMW - 3411 2 413 038 / 34112413038
  • BMW - 3411 2 413 068 / 34112413068
  • BMW - 3411 4 074 370 / 34114074370
  • BMW - 3411 6 778 403 / 34116778403
  • BMW - 3411 6 779 293 / 34116779293
  • BMW - 3411 6 852 253 / 34116852253
  • BMW - 3411 6 857 096 / 34116857096
  • BMW - 3411 6 877 653 / 34116877653
  • BOSCH - 0 986 494 191 / 0986494191
  • BREMBO - P 06 049 / P06049
  • BREMBO - P 06 049 / P06049
  • ECORA - 4250238746508
  • FERODO - FDB4052
  • HELLA - 8DB 355 012-541 / 8DB355012541
  • JURID - 573300J
  • JURID - 573300JC
  • RAICAM - RA.1046.0 / RA10460
  • TEXTAR - 2417001
  • TEXTAR - 2417081
  • TRW - GDB1726
  • ZIMMERMANN - 24170.195.1 / 241701951
  • ZIMMERMANN - 24170.995.1 / 241709951
  • ZIMMERMANN - 24171
  • ZIMMERMANN - D1294-8411 / D12948411
  • ZIMMERMANN - D1294-8411 / D12948411
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
reference numbers - for comparison
  • ATE - 24.8190-0309.2 / 24819003092
  • ATE - 620309
  • BMW - 34 35 6 790 303 / 34356790303
  • BREMBO - A 00 433 / A00433
  • BREMBO - A 00 433 / A00433
  • Caripar - GBK 428 / GBK428
  • HELLA PAGID - 8DK 355 251-741 / 8DK355251741
  • JURID - 581500
  • PAGID - P8585
  • PAGID - P8585
  • TEXTAR - 98043500
  • febi bilstein - 37437
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
