ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for MERCEDES W176, W246, C117, X117, X156 (Front)

ZIMMERMANN

CARIPAR

Item No.: PKT262W162
Manufacturer: ZIMMERMANN, CARIPAR
part number: 400.3690.20, 24869.195.1, GBK 625

Items included:

2x Brake Disc Piece - ZIMMERMANN 400.3690.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24869.195.1
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 625

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 295
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 51
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 26
Machining: High-carbon
Weight [kg]: 8,1
Centering Diameter [mm]: 67
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0128-0276.1 / 24012802761
BOSCH - 0 986 479 A01 / 0986479A01
BOSCH - 0 986 479 A58 / 0986479A58
BREMBO - 09.B344.41 / 09B34441
BREMBO - 09.B344.4X / 09B3444X
DELPHI - BG4646C
ECORA - 4250238755869
FERODO - DDF2460C
HELLA PAGID - 8DD 355 119-591 / 8DD355119591
HELLA PAGID - 8DD 355 129-661 / 8DD355129661
HERTH+BUSS JAKOPARTS - J3301111
HERTH+BUSS JAKOPARTS - J3301111
JURID - 563114JC
MERCEDES-BENZ - 246 421 01 12 / 2464210112
MERCEDES-BENZ - 246 421 0112 07 / 246421011207
MERCEDES-BENZ - A 246 421 0112 / A2464210112
MERCEDES-BENZ - A 246 421 0112 / A2464210112
MERCEDES-BENZ - A 246 421 0112 07 / A246421011207
MERCEDES-BENZ - A 246 421 0112 07 / A246421011207
TEXTAR - 92241603
TRW - DF6501
VALEO - 197670
ZIMMERMANN - 400.3690.20 / 400369020
ZIMMERMANN - 400.3690.30 / 400369030
ZIMMERMANN - 400.3690.52 / 400369052

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24869
Fitting Position: Front Axle
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 20
Width [mm]: 144
Height [mm]: 72
Brake System: TRW
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-2779.2 / 13046027792
ATE - 13.0470-2779.2 / 13047027792
BOSCH - 0 986 494 662 / 0986494662
BREMBO - P 50 093 / P50093
BREMBO - P 50 093 / P50093
BREMBO - P 50 093X / P50093X
BREMBO - P 50 093X / P50093X
ECORA - 4250238756026
FERODO - FDB4245
HELLA PAGID - 8DB 355 019-721 / 8DB355019721
HERTH+BUSS JAKOPARTS - J3601073
HERTH+BUSS JAKOPARTS - J3601073
JURID - 573403J
MERCEDES-BENZ - 000 420 30 20 / 0004203020
MERCEDES-BENZ - 000 420 9104 / 0004209104
MERCEDES-BENZ - 006 420 4620 / 0064204620
MERCEDES-BENZ - 006 420 4720 / 0064204720
MERCEDES-BENZ - 006 420 8520 / 0064208520
MERCEDES-BENZ - 008 420 0320 / 0084200320
MERCEDES-BENZ - 008 420 06 20 / 0084200620
MERCEDES-BENZ - A 000 420 3020 / A0004203020
MERCEDES-BENZ - A 000 420 3020 / A0004203020
MERCEDES-BENZ - A 000 420 9104 / A0004209104
MERCEDES-BENZ - A 000 420 9104 / A0004209104
MERCEDES-BENZ - A 006 420 4620 / A0064204620
MERCEDES-BENZ - A 006 420 4620 / A0064204620
MERCEDES-BENZ - A 006 420 4720 / A0064204720
MERCEDES-BENZ - A 006 420 4720 / A0064204720
MERCEDES-BENZ - A 006 420 8520 / A0064208520
MERCEDES-BENZ - A 006 420 8520 / A0064208520
MERCEDES-BENZ - A 008 420 0320 / A0084200320
MERCEDES-BENZ - A 008 420 0320 / A0084200320
MERCEDES-BENZ - A 008 420 0620 / A0084200620
MERCEDES-BENZ - A 008 420 0620 / A0084200620
RAICAM - RA.1084.0 / RA10840
TEXTAR - 2486901
TRW - GDB1932
ZIMMERMANN - 24869
ZIMMERMANN - 24869.195.1 / 248691951
ZIMMERMANN - D1694-8920 / D16948920
ZIMMERMANN - D1694-8920 / D16948920

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Fitting Position: Rear Axle

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

our recommendation

ATE Universal Lubricant Plastilube Anti-Squeak Paste 75 ml 03.9902-1002.2

ATE Universal Lubricant Plastilube Anti-Squeak Paste 75 ml 03.9902-1002.2

6,85 EUR

incl. VAT, excl. shipping costs

add to cart

Customers also bought

MANN CUK26007 Activated Carbon Cabin Air Filter for MERCEDES W176, W246, W242, C117, X117 2468300018

MANN CUK26007 Activated Carbon Cabin Air Filter for MERCEDES W176, W246, W242, C117, X1...

32.95 EUR

incl. VAT, excl. shipping costs

add to cart

6L ORIGINAL 5W30 MB 229.52 Engine Oil + MANN Oil Filter for MERCEDES-BENZ M260, M264, M270, M274

6L ORIGINAL 5W30 MB 229.52 Engine Oil + MANN Oil Filter for MERCEDES-BENZ M260, M264, M...

96.95 EUR

incl. VAT, excl. shipping costs

add to cart

ZIMMERMANN Brake Discs + Pads for MERCEDES W176, W246, C117, X117, X156 (Rear)

ZIMMERMANN Brake Discs + Pads for MERCEDES W176, W246, C117, X117, X156 (Rear)

119.95 EUR

incl. VAT, excl. shipping costs

add to cart

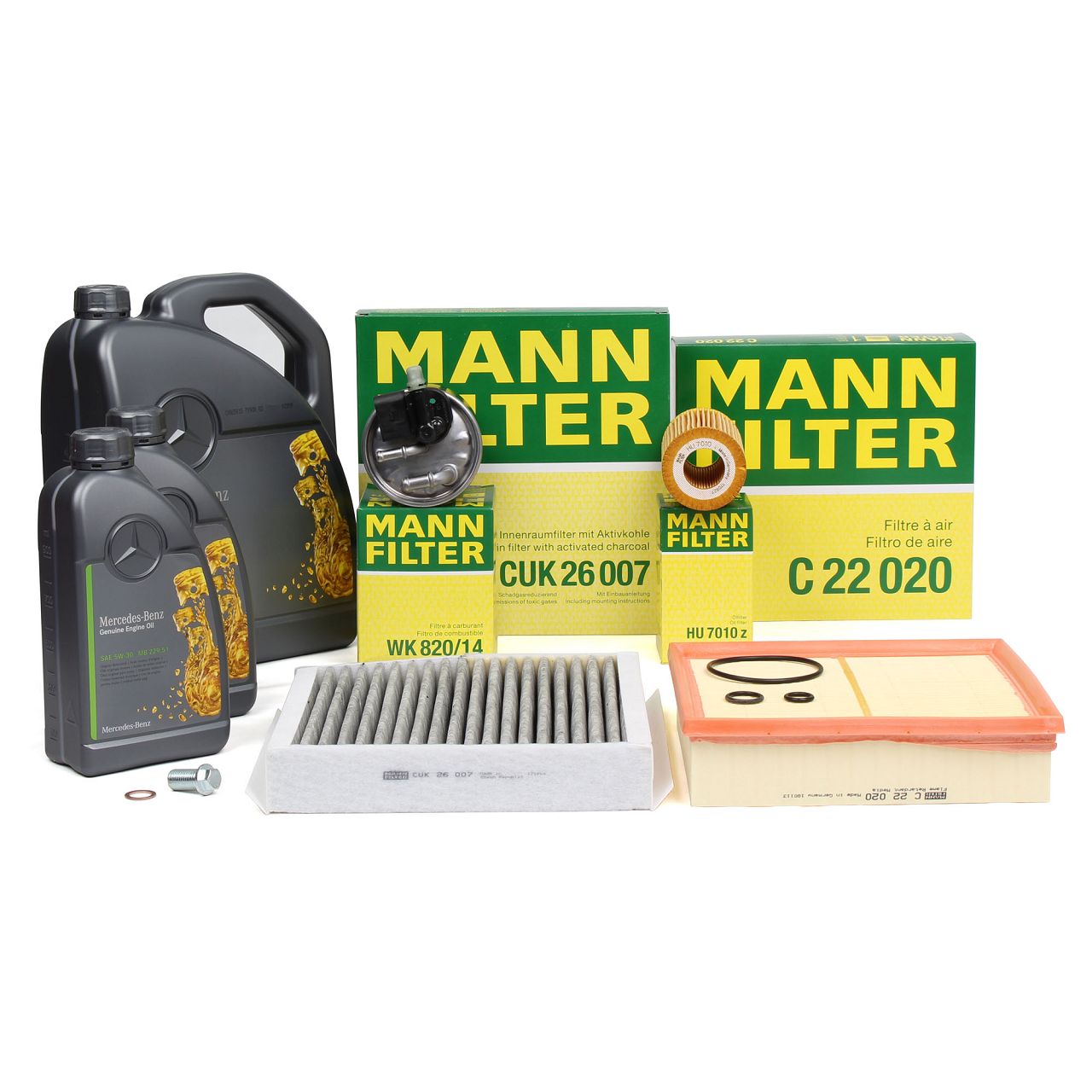

MANN 4-piece filter set + 7L ORIGINAL 5W30 engine oil for MERCEDES W176, W246, C117, X117, X156, OM651
