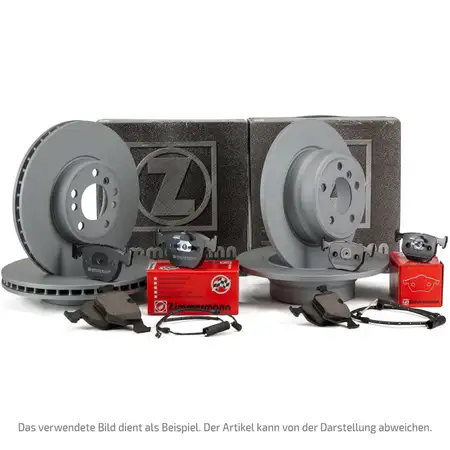

ZIMMERMANN Brake Discs + Pads + Wako for BMW 5 Series Sedan 520/523i 520/525d (front + rear)

ZIMMERMANN Brake Discs + Pads + Wako for BMW 5 Series Sedan 520/523i 520/525d (front + rear)

ZIMMERMANN

Item No.: PKT462W087
Manufacturer: ZIMMERMANN
part number: 150.1284.20, 21677.195.1, 34 35 2 229 018, 150.1285.20, 21691.170.1

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 296
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 79
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 20,4
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 7,40
  • Height [mm]: 76
reference numbers - for comparison
  • ATE - 24.0122-0159.1 / 24012201591
  • ATE - 24.0322-0159.1 / 24032201591
  • BMW - 1 163 013 / 1163013
  • BMW - 1 163 081 / 1163081
  • BMW - 1 164 839 / 1164839
  • BMW - 34 11 6 767 061 / 34116767061
  • BMW - 3411 1 163 013 / 34111163013
  • BMW - 3411 1 163 081 / 34111163081
  • BMW - 3411 1 164 839 / 34111164839
  • BMW - 3411 6 767 061 / 34116767061
  • BMW - 6 767 061 / 6767061
  • BMW - 6 767 061 / 6767061
  • BOSCH - 0 986 478 848 / 0986478848
  • BOSCH - 0 986 479 R72 / 0986479R72
  • BREMBO - 09.6924.11 / 09692411
  • BREMBO - 09.6924.1X / 0969241X
  • BREMBO - 09.6924.75 / 09692475
  • FERODO - DDF834C
  • HELLA PAGID - 8DD 355 104-591 / 8DD355104591
  • HELLA PAGID - 8DD 355 127-251 / 8DD355127251
  • JURID - 562035JC
  • RAICAM - RD00061
  • TEXTAR - 92075005
  • TRW - DF2769
  • ZIMMERMANN - 150.1284.20 / 150128420
  • ZIMMERMANN - 150.1284.52 / 150128452
  • ZIMMERMANN - 4250238718390
item specifications
  • Component: Braking System
  • Width [mm]: 155
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 21677
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with retaining spring
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 20
  • Height [mm]: 64
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-7089.2 / 13046070892
  • ATE - 13.0470-7089.2 / 13047070892
  • BMW - 1 163 387 / 1163387
  • BMW - 1 163 953 / 1163953
  • BMW - 1 164 330 / 1164330
  • BMW - 1 164 331 / 1164331
  • BMW - 1 164 627 / 1164627
  • BMW - 1 164 629 / 1164629
  • BMW - 2 157 586 / 2157586
  • BMW - 2 157 590 / 2157590
  • BMW - 34 11 2 157 586 / 34112157586
  • BMW - 34 11 2 157 590 / 34112157590
  • BMW - 3411 1 163 387 / 34111163387
  • BMW - 3411 1 163 953 / 34111163953
  • BMW - 3411 1 164 330 / 34111164330
  • BMW - 3411 1 164 331 / 34111164331
  • BMW - 3411 1 164 627 / 34111164627
  • BMW - 3411 1 164 629 / 34111164629
  • BMW - 3411 6 761 278 / 34116761278
  • BMW - 3411 6 761 279 / 34116761279
  • BMW - 3411 6 761 280 / 34116761280
  • BMW - 6 761 278 / 6761278
  • BMW - 6 761 279 / 6761279
  • BMW - 6 761 280 / 6761280
  • BOSCH - 0 986 424 485 / 0986424485
  • BOSCH - 0 986 494 007 / 0986494007
  • BREMBO - P 06 022 / P06022
  • BREMBO - P 06 022 / P06022
  • BREMBO - P 06 065 / P06065
  • BREMBO - P 06 065 / P06065
  • FERODO - FDB1073
  • HELLA PAGID - 8DB 355 007-961 / 8DB355007961
  • HELLA PAGID - 8DB 355 010-711 / 8DB355010711
  • JURID - 571880J
  • RAICAM - RA.0632.0 / RA06320
  • TEXTAR - 2167703
  • TRW - GDB1264
  • ZIMMERMANN - 21676
  • ZIMMERMANN - 21677
  • ZIMMERMANN - 21677.195.1 / 216771951
  • ZIMMERMANN - 21677.995.1 / 216779951
  • ZIMMERMANN - 4250238735632
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24819002192
  • ATE - 620219
  • BMW - 1163065
  • BMW - 2229018
  • BMW - 34 35 1 163 065 / 34351163065
  • BMW - 34 35 2 229 018 / 34352229018
  • BMW - 34351163065
  • BMW - 34352229018
  • BOSCH - 1987474958
  • BREMBO - A00200
  • BREMBO - A00200
  • CHAMPION - FWI252
  • DELPHI - LZ0136
  • FERODO - FWI252
  • FTE - BZ1029WSET
  • HELLA - 355250271
  • HELLA - 8DK355250271
  • HELLA PAGID - 355250271
  • HELLA PAGID - 8DK355250271
  • HERTH+BUSS JAKOPARTS - 70608121
  • JURID - 581380
  • JURID - FWI252
  • MAGNETI MARELLI - 363700168024
  • MAGNETI MARELLI - 363700400200
  • MAGNETI MARELLI - P8024MM
  • MAGNETI MARELLI - P8024MM
  • METZGER - 1190072
  • MEYLE - 3003435113
  • MEYLE - MWS0044
  • OPTIMAL - WKT50278K
  • PAGID - P8024
  • PAGID - P8024
  • PAGID - P8024N
  • PAGID - P8024N
  • QUICK BRAKE - WS0163A
  • TEXTAR - 98020600
  • TRW - GIC158
  • TRW - GIC158CN
  • febi bilstein - 08203
  • febi bilstein - 223254
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 298
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: solid
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 75
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 8,4
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 10
  • Weight [kg]: 4,82
  • Height [mm]: 61
reference numbers - for comparison
  • ATE - 24.0110-0227.1 / 24011002271
  • ATE - 24.0310-0227.1 / 24031002271
  • BMW - 1 163 699 / 1163699
  • BMW - 1 163 835 / 1163835
  • BMW - 1 164 129 / 1164129
  • BMW - 34 21 6 767 049 / 34216767049
  • BMW - 3421 1 163 699 / 34211163699
  • BMW - 3421 1 163 835 / 34211163835
  • BMW - 3421 1 164 129 / 34211164129
  • BMW - 3421 6 767 049 / 34216767049
  • BMW - 6 767 049 / 6767049
  • BMW - 6 767 049 / 6767049
  • BOSCH - 0 986 478 425 / 0986478425
  • BREMBO - 08.6917.11 / 08691711
  • FERODO - DDF835C
  • HELLA PAGID - 8DD 355 127-271 / 8DD355127271
  • JURID - 562062JC
  • RAICAM - RD00062
  • TEXTAR - 92076603
  • TRW - DF2768
  • ZIMMERMANN - 150.1285.20 / 150128520
  • ZIMMERMANN - 150.1285.52 / 150128552
  • ZIMMERMANN - 4250238718406
item specifications
  • Component: Braking System
  • Width [mm]: 123
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 21691
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with retaining spring
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 17
  • Height [mm]: 45
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-7090.2 / 13046070902
  • ATE - 13.0470-7090.2 / 13047070902
  • BMW - 1 163 395 / 1163395
  • BMW - 2 157 591 / 2157591
  • BMW - 2 157 592 / 2157592
  • BMW - 3421 1 163 395 / 34211163395
  • BMW - 3421 6 761 281 / 34216761281
  • BMW - 34212157591
  • BMW - 34212157592
  • BMW - 6 761 281 / 6761281
  • BOSCH - 0 986 494 009 / 0986494009
  • BREMBO - P 06 023 / P06023
  • BREMBO - P 06 023 / P06023
  • DELPHI - LP1107
  • FERODO - FDB1075
  • HELLA PAGID - 8DB 355 007-981 / 8DB355007981
  • JURID - 571936J
  • RAICAM - RA.0387.0 / RA03870
  • TEXTAR - 2169103
  • TEXTAR - 2169181
  • TRW - GDB1265
  • VALEO - 301311
  • VALEO - 598311
  • ZIMMERMANN - 21691
  • ZIMMERMANN - 21691.170.1 / 216911701
  • ZIMMERMANN - 21891
  • ZIMMERMANN - 4250238735687
item specifications
    reference numbers - for comparison
      Name:
      OTTO ZIMMERMANN GMBH
      Website:
      www.otto-zimmermann.de
      E-Mail:
      info@otto-zimmermann.de
      Phone:
      0049(0)7261 94514-0
      Street, House no:
      Am Leitzelbach 8
      ZIP / City:
      74889 Sinsheim - Duehren
      Country:
      Germany
