ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN Brake Discs + Pads + Sensor for PSA Jumper 2 Boxer FIAT 20t 16'

ZIMMERMANN

Item No.: PKT562W109
Manufacturer: ZIMMERMANN
part number: 24466.190.1

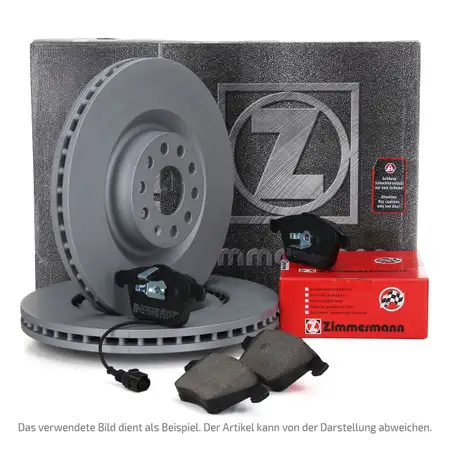

Items included:

2x Brake Disc Piece - ZIMMERMANN 230.2374.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24466.190.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 300
Hole Arrangement/Number: 7/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 130
Height [mm]: 74
Brake Disc Thickness [mm]: 32
Minimum thickness [mm]: 29,9
Weight [kg]: 9,6
Centering Diameter [mm]: 80
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED
Registration Type: permitted for vehicles of class M2/N2

reference numbers - for comparison

ATE - 24.0132-0131.1 / 24013201311
BOSCH - 0 986 479 315 / 0986479315
BREMBO - 09.A458.10 / 09A45810
CITROEN / PEUGEOT - 1607872380
CITROEN / PEUGEOT - 4249.37 / 424937
CITROEN / PEUGEOT - 4249.38 / 424938
CITROEN / PEUGEOT - 4249.A6 / 4249A6
ECORA - 4250238762874
FERODO - DDF1718-1 / DDF17181
FIAT - 517 05 758 / 51705758
FIAT - 517 40 249 / 51740249
HELLA PAGID - 8DD 355 125-261 / 8DD355125261
HERTH+BUSS JAKOPARTS - J3302239
HERTH+BUSS JAKOPARTS - J3302239
JURID - 562630JC-1 / 562630JC1
RAICAM - RD01448
TEXTAR - 92157303
TRW - DF4751S
ZIMMERMANN - 230.2374.20 / 230237420
ZIMMERMANN - 230.2374.52 / 230237452

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24466
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 19
Width [mm]: 170
Height [mm]: 69
Brake System: BREMBO
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 2

reference numbers - for comparison

ATE - 13.0460-4810.2 / 13046048102
ATE - 13.0460-4811.2 / 13046048112
BOSCH - 0 986 494 109 / 0986494109
BREMBO - P 61 093 / P61093
BREMBO - P 61 093 / P61093
BREMBO - P 61 094 / P61094
BREMBO - P 61 094 / P61094
CITROEN / PEUGEOT - 16 124 336 80 / 1612433680
CITROEN / PEUGEOT - 16 124 337 80 / 1612433780
CITROEN / PEUGEOT - 16 172 845 80 / 1617284580
CITROEN / PEUGEOT - 16 736 035 80 / 1673603580
CITROEN / PEUGEOT - 16 736 036 80 / 1673603680
CITROEN / PEUGEOT - 16 736 037 80 / 1673603780
CITROEN / PEUGEOT - 16 759 897 80 / 1675989780
CITROEN / PEUGEOT - 425373
CITROEN / PEUGEOT - 425374
CITROEN / PEUGEOT - 425375
CITROEN / PEUGEOT - 425376
CITROEN / PEUGEOT - 425463
CITROEN / PEUGEOT - 425464
ECORA - 4250238740599
FERODO - FSL1925
FERODO - FVR1926
FIAT - 77364015
FIAT - 77364161
FIAT - 77364318
FIAT - 77364319
FIAT - 77366021
FIAT - 77366023
FIAT - 77366024
FIAT - 77367090
FIAT - 77367093
HELLA PAGID - 8DB 355 019-901 / 8DB355019901
JURID - 573261J
JURID - 573849J
RAICAM - 886.0 / 8860
TEXTAR - 2446701
TEXTAR - 2446703
TRW - GDB1703
ZIMMERMANN - 24466
ZIMMERMANN - 24466.190.1 / 244661901
ZIMMERMANN - 24467
