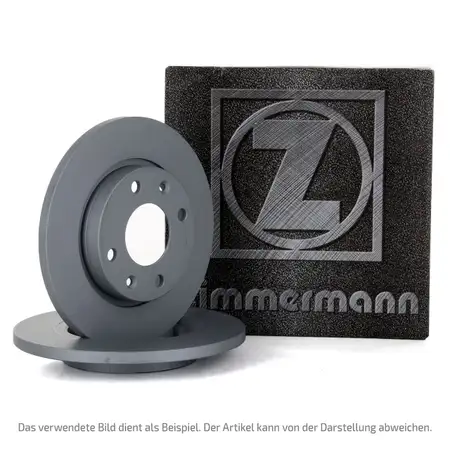

ZIMMERMANN Brake Disc Set for Suzuki Swift IV 1.2/4WD, 1.6, 1.3 DDiS (Rear)

ZIMMERMANN

Item No.: UNI123W623
Manufacturer: ZIMMERMANN
part number: 540.5302.20
EAN-Code: 4250238756422

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Email-Icon
E-Mail
Trusted Badge Rating
Item properties
  • Quantity Unit: Piece
  • Component: Braking System
  • Centering Diameter [mm]: 62
  • Outer Diameter [mm]: 259
  • Hole Arrangement/Number: 7/4
  • Brake Disc Type: solid
  • Brake Disc Thickness [mm]: 9
  • Thickness [mm]: 9
  • Fitting Position: Rear Axle
  • Rim Hole Number: 4
  • Weight [kg]: 3,6
  • Height [mm]: 43
  • Bolt Hole Circle Ø [mm]: 100
  • Minimum thickness [mm]: 8
  • Surface: Coated
  • Test Mark: ECE R90 APPROVED
  • ATE - 24.0109-0175.1 / 24010901751
  • BOSCH - 0 986 479 792 / 0986479792
  • BREMBO - 08.C046.31 / 08C04631
  • DELPHI - BG4345
  • FERODO - DDF2071C
  • HELLA PAGID - 8DD 355 117-301 / 8DD355117301
  • HERTH+BUSS JAKOPARTS - J3318002
  • HERTH+BUSS JAKOPARTS - J3318002
  • JURID - 562698JC
  • SUZUKI - 55611-61M10 / 5561161M10
  • SUZUKI - 55611-68L00 / 5561168L00
  • TEXTAR - 92231403
  • TRW - DF6122
  • ZIMMERMANN - 4250238756422
  • ZIMMERMANN - 540.5302.00 / 540530200
  • ZIMMERMANN - 540.5302.20 / 540530220
  • ZIMMERMANN - 540.5302.50 / 540530250
  • ZIMMERMANN - 540.5302.52 / 540530252
