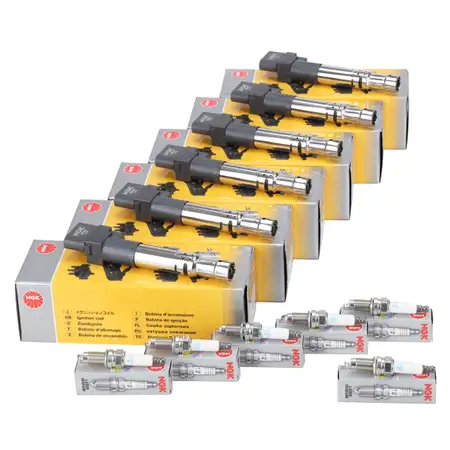

6x NGK ignition coils + 6x spark plugs for VW Golf 4, 5, R32, Touareg, T5, A3, 8P, TT, 8N, 8J, and Cayenne 3.2

6x NGK ignition coils + 6x spark plugs for VW Golf 4, 5, R32, Touareg, T5, A3, 8P, TT, 8N, 8J, and Cayenne 3.2

Item No.: A03652W007
Manufacturer: NGK
part number: 48065, 7563

Items included:

6x Ignition Coil Piece - NGK 48065
6x Spark Plug Piece - NGK 7563

item specifications

Component: Ignition System
Quantity Unit: Piece
Ignition Coil: Connector Type SAE
Number of pins: 4
Number of inlets/outlets: 1

reference numbers - for comparison

AUDI - 022 905 100 B / 022905100B
AUDI - 022 905 100 E / 022905100E
AUDI - 022 905 100 H / 022905100H
AUDI - 022 905 100 L / 022905100L
AUDI - 022 905 100 P / 022905100P
AUDI - 022 905 100 S / 022905100S
AUDI - 022 905 100 T / 022905100T
AUDI - 022 905 715 / 022905715
AUDI - 022 905 715 A / 022905715A
AUDI - 022 905 715 B / 022905715B
AUDI - 022 905 715 D / 022905715D
AUDI - 022 905 715 E / 022905715E
BBT - IC 03123 / IC03123
BBT - IC 03126 / IC03126
BERU - 0 040 102 044 / 0040102044
BERU - ZSE 044 / ZSE044
BERU - ZSE041
BOSCH - 0 986 221 051 / 0986221051
BOSCH - 0 986 221 056 / 0986221056
BREMI - 20122
CHAMPION - BAEA044E
DELPHI - GN10443-12B1 / GN1044312B1
ECORA - 4010326480659
ERA - 880122
FACET - 9.6334 / 96334
FACET - EPS 1.970.434 / EPS1970434
FACET - KW 470 434 / KW470434
HELLA - 5DA 230 036-431 / 5DA230036431
MEAT & DORIA - 104 85 / 10485
METZGER - 0880127
NGK - 48065
NGK - U5020
NGK - U5020
PORSCHE - 955 602 101 03 / 95560210103
PORSCHE - 955 602 101 05 / 95560210105
PORSCHE - 958 602 101 00 / 95860210100
SEAT - 022 905 100 B / 022905100B
SEAT - 022 905 100 E / 022905100E
SEAT - 022 905 100 H / 022905100H
SEAT - 022 905 100 L / 022905100L
SEAT - 022 905 100 P / 022905100P
SEAT - 022 905 100 S / 022905100S
SEAT - 022 905 100 T / 022905100T
SEAT - 022 905 715 / 022905715
SEAT - 022 905 715 A / 022905715A
SEAT - 022 905 715 B / 022905715B
SEAT - 022 905 715 D / 022905715D
SEAT - 022 905 715 E / 022905715E
SKODA - 022 905 100 B / 022905100B
SKODA - 022 905 100 E / 022905100E
SKODA - 022 905 100 H / 022905100H
SKODA - 022 905 100 L / 022905100L
SKODA - 022 905 100 P / 022905100P
SKODA - 022 905 100 S / 022905100S
SKODA - 022 905 100 T / 022905100T
SKODA - 022 905 715 / 022905715
SKODA - 022 905 715 A / 022905715A
SKODA - 022 905 715 B / 022905715B
SKODA - 022 905 715 D / 022905715D
SKODA - 022 905 715 E / 022905715E
VAG - 022 905 100 E / 022905100E
VAG - 022 905 100 L / 022905100L
VAG - 022 905 100 P / 022905100P
VAG - 022 905 715 / 022905715
VAG - 022 905 715 A / 022905715A
VAG - 022 905 715 B / 022905715B
VAG - 022 905 715 D / 022905715D
VALEO - 245719
VOLKSWAGEN - 022 905 100 B / 022905100B
VOLKSWAGEN - 022 905 100 E / 022905100E
VOLKSWAGEN - 022 905 100 H / 022905100H
VOLKSWAGEN - 022 905 100 L / 022905100L
VOLKSWAGEN - 022 905 100 P / 022905100P
VOLKSWAGEN - 022 905 100 S / 022905100S
VOLKSWAGEN - 022 905 100 T / 022905100T
VOLKSWAGEN - 022 905 715 / 022905715
VOLKSWAGEN - 022 905 715 A / 022905715A
VOLKSWAGEN - 022 905 715 B / 022905715B
VOLKSWAGEN - 022 905 715 D / 022905715D
VOLKSWAGEN - 022 905 715 E / 022905715E
febi bilstein - 37318

item specifications

Component: Ignition System
Quantity Unit: Piece
Thread Length [mm]: 19,0
Spark Position [mm]: 6,5
Spanner Size: 16 mm
Spark Plug: Iridium Middle Electrode
Spark Plug: 1 - Earthed Electrode
Spark Plug: Interference Suppression 1 kOhm
Spark Plug: with gasket seat
Spark Plug: Fixed SAE connector
Thread Size: M12 x 1,25

reference numbers - for comparison

AUDI - 101 905 606 / 101905606
AUDI - 101 905 606 A / 101905606A
BERU - 0001240901
BERU - 12F6HPURW
BERU - Z 306 / Z306
BERU - Z 306 / Z306
BERU - Z306
BERU - Z306
BOSCH - 0 242 135 510 / 0242135510
BOSCH - YR7LPP332W
CHAMPION - KA4ZPYPB4
CHAMPION - OE215
ECORA - 087295175637
NGK - 087295175637
NGK - 7563
NGK - IZKR7B
SEAT - 101 905 606 / 101905606
SEAT - 101 905 606 A / 101905606A
SKODA - 101 905 606 / 101905606
SKODA - 101 905 606 A / 101905606A
VAG - 101 905 606 A / 101905606A
VOLKSWAGEN - 101 905 606 / 101905606
VOLKSWAGEN - 101 905 606 A / 101905606A

manufacturer	model	type	power	capacity	constr. date	kba	limitations
