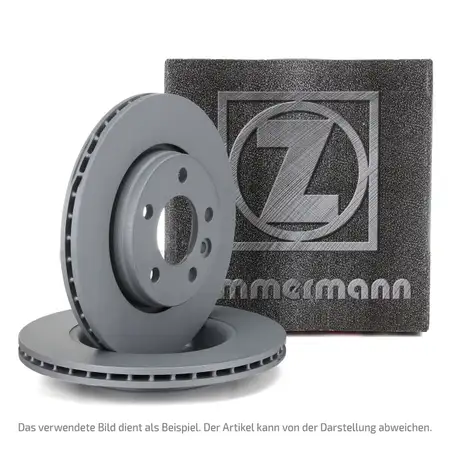

ZIMMERMANN Brake Disc Set for BMW 5 Series F10, F11, F07; 6 Series F12, F13, F06; 7 Series F01–F04 (Front)

ZIMMERMANN

Item No.: PKT662W897
Manufacturer: ZIMMERMANN
part number: 150.2912.20, 150.2913.20

Items included:
  • 1x Brake Disc Piece - ZIMMERMANN 150.2912.20
  • 1x Brake Disc Piece - ZIMMERMANN 150.2913.20

Free lightning shipping in DE from 90€
Prioritized ordering possible
questions about this product?
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle Left
  • Outer Diameter [mm]: 374
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 66
  • Brake Disc Thickness [mm]: 36
  • Minimum thickness [mm]: 34,4
  • Machining: High-carbon
  • Weight [kg]: 14,6
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
  • Ordering only possible via the vehicle identification number:
  • Shape: Form differs from original
  • Multi-piece: one-piece
  • Brake Bell Outer Diameter [mm]: 201
reference numbers - for comparison
  • ATE - 24.0136-0119.2 / 24013601192
  • BMW - 34 10 6 894 383 / 34106894383
  • BMW - 3411 6 785 675 / 34116785675
  • BOSCH - 0 986 479 E28 / 0986479E28
  • BREMBO - 09.C407.13 / 09C40713
  • ECORA - 4250238758372
  • FERODO - DDF2042LC-1 / DDF2042LC1
  • HELLA PAGID - 8DD 355 120-681 / 8DD355120681
  • JURID - 563283JC-1 / 563283JC1
  • TEXTAR - 92266025
  • TRW - DF6613S
  • ZIMMERMANN - 150.2912.20 / 150291220
  • ZIMMERMANN - 150.2912.32 / 150291232
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle Right
  • Outer Diameter [mm]: 374
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 66
  • Brake Disc Thickness [mm]: 36
  • Minimum thickness [mm]: 34,4
  • Machining: High-carbon
  • Weight [kg]: 14,6
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
  • Ordering only possible via the vehicle identification number:
  • Brake Bell Outer Diameter [mm]: 201
reference numbers - for comparison
  • ATE - 24.0136-0118.2 / 24013601182
  • BMW - 34 10 6 894 384 / 34106894384
  • BMW - 3411 6 785 676 / 34116785676
  • BOSCH - 0 986 479 E27 / 0986479E27
  • BREMBO - 09.C408.13 / 09C40813
  • ECORA - 4250238758389
  • FERODO - DDF2042RC-1 / DDF2042RC1
  • HELLA PAGID - 8DD 355 120-691 / 8DD355120691
  • JURID - 563284JC-1 / 563284JC1
  • TEXTAR - 92266125
  • TRW - DF6614S
  • ZIMMERMANN - 150.2913.20 / 150291320
  • ZIMMERMANN - 150.2913.32 / 150291332
Name:
OTTO ZIMMERMANN GMBH
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
manufacturer model type power capacity constr. date kba limitations
