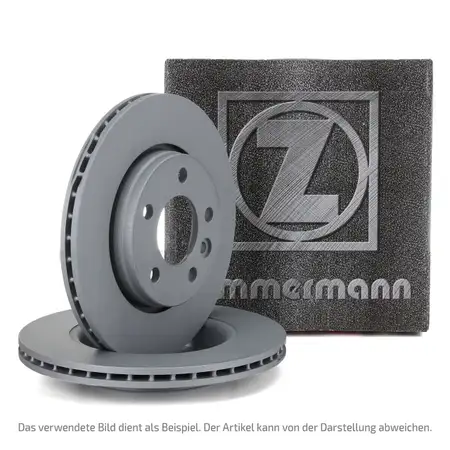

ZIMMERMANN Brake Disc Set for PORSCHE Cayenne 1LK and VW Touareg 1LC/1LE/1LA (Front)

ZIMMERMANN Brake Disc Set for PORSCHE Cayenne 1LK and VW Touareg 1LC/1LE/1LA (Front)

ZIMMERMANN

Item No.: PKT262W615
Manufacturer: ZIMMERMANN
part number: 600.3224.20, 600.3225.20

Items included:
  • 1x Brake Disc Piece - ZIMMERMANN 600.3224.20
  • 1x Brake Disc Piece - ZIMMERMANN 600.3225.20

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle Left
  • Outer Diameter [mm]: 330
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 130
  • Height [mm]: 69
  • Brake Disc Thickness [mm]: 32
  • Minimum thickness [mm]: 30
  • Machining: High-carbon
  • Weight [kg]: 11,1
  • Centering Diameter [mm]: 85
  • Rim Size [inch]: 17.0
  • for PR number: 1LK
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24013201171
  • ATE - 24113201171
  • ATE - 432117
  • ATE - 450357
  • AUDI - 7L6615301D
  • AUDI - 7L6615301J
  • AUDI - 7L6615301N
  • AUDI - 7L6615301P
  • BLUE PRINT - ADV184328
  • BOSCH - 0986479248
  • BOSCH - 0986AB5758
  • BOSCH - 0986T16758
  • BREMBO - 09986710
  • BREMBO - 09986711
  • BREMBO - 09986714
  • BREMBO - 09C88111
  • BREMBO - FD206000
  • BREMBO - FS206000
  • DELPHI - BG3773
  • DELPHI - BG9773
  • DELPHI - BG9773C
  • DELPHI - BG9773C18B1
  • DELPHI - BG9773C19B1
  • ECORA - 4250238719878
  • EUROREPAR - 1671247580
  • EUROREPAR - 1684270480
  • EUROREPAR - 1686366780
  • FERODO - DDF1591DSL1D
  • FERODO - DDF1591DSR1D
  • FERODO - DDF1591LC1
  • FERODO - DDF1591LC1D
  • FTE - 9071008
  • FTE - 9081036
  • FTE - BS7793
  • FTE - BS7793B
  • FTE - BS7793HB
  • HELLA - 355109711
  • HELLA - 355109721
  • HELLA - 355109722
  • HELLA - 355121071
  • HELLA - 355128041
  • HELLA - 8DD355109711
  • HELLA - 8DD355109721
  • HELLA - 8DD355109722
  • HELLA - 8DD355121071
  • HELLA - 8DD355128041
  • HELLA PAGID - 355109711
  • HELLA PAGID - 355109721
  • HELLA PAGID - 355109722
  • HELLA PAGID - 355121071
  • HELLA PAGID - 355128041
  • HELLA PAGID - 8DD355109711
  • HELLA PAGID - 8DD355109721
  • HELLA PAGID - 8DD355109722
  • HELLA PAGID - 8DD355121071
  • HELLA PAGID - 8DD355128041
  • JP Group - 1163105070
  • JURID - 562336JC
  • JURID - 562336JC1
  • MAGNETI MARELLI - 361302040843
  • METZGER - 6110518
  • MEYLE - 1155211101
  • MEYLE - 1155211101PD
  • MEYLE - 1835211101PD
  • MEYLE - MBD0230
  • MEYLE - MBD1546PD
  • OPTIMAL - BS7942
  • OPTIMAL - BS7942C
  • OPTIMAL - BS7942HC
  • PAGID - 54215
  • PAGID - 54215NHC
  • PAGID - 54215PRO
  • PAGID - 65115
  • PORSCHE - 7L6615301D
  • PORSCHE - 7L6615301J
  • PORSCHE - 7L6615301N
  • PORSCHE - 7L6615301P
  • PORSCHE - 955 351 401 41 / 95535140141
  • PORSCHE - 95535140100
  • PORSCHE - 95535140140
  • SEAT - 7L6615301D
  • SEAT - 7L6615301J
  • SEAT - 7L6615301N
  • SEAT - 7L6615301P
  • SKODA - 7L6615301D
  • SKODA - 7L6615301J
  • SKODA - 7L6615301N
  • SKODA - 7L6615301P
  • TEXTAR - 92121500
  • TEXTAR - 92121503
  • TEXTAR - 92121505
  • TEXTAR - 92121510
  • TEXTAR - 98200121501
  • TOPRAN - 111286
  • TRW - DF4306S
  • TRW - DF4762S
  • TRW - DF4762SL
  • TRW - DF4762XSS
  • TRW - DF4763SR
  • TRW - DF4763XSS
  • VAICO - V1080096
  • VAICO - V1080096
  • VALEO - 197087
  • VALEO - 672878
  • VOLKSWAGEN - 7L6615301D
  • VOLKSWAGEN - 7L6615301J
  • VOLKSWAGEN - 7L6615301N
  • VOLKSWAGEN - 7L6615301P
  • VOLKSWAGEN - 95535140100
  • VOLKSWAGEN - 95535140140
  • VOLKSWAGEN - 95535140141
  • ZIMMERMANN - 600.3224.20 / 600322420
  • ZIMMERMANN - 600322400
  • ZIMMERMANN - 600322454
  • ZIMMERMANN - 600322470
  • ZIMMERMANN - 600322472
  • ZIMMERMANN - 600322475
  • febi bilstein - 33165
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle Right
  • Outer Diameter [mm]: 330
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 130
  • Height [mm]: 69
  • Brake Disc Thickness [mm]: 32
  • Minimum thickness [mm]: 30
  • Machining: High-carbon
  • Weight [kg]: 11,1
  • Centering Diameter [mm]: 85
  • Rim Size [inch]: 17.0
  • for PR number: 1LK
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24013201181
  • ATE - 432118
  • AUDI - 7L6615302D
  • AUDI - 7L6615302J
  • AUDI - 7L6615302N
  • BLUE PRINT - ADV184329
  • BOSCH - 0986479250
  • BOSCH - 0986T16759
  • BREMBO - 09986810
  • BREMBO - 09986811
  • BREMBO - 09986814
  • BREMBO - 9986811
  • DELPHI - BG9949
  • DELPHI - BG9949C
  • DELPHI - BG9949C19B1
  • ECORA - 4250238719885
  • EUROREPAR - 1671247480
  • EUROREPAR - 1684270380
  • EUROREPAR - 1686367080
  • FERODO - DDF1591RC1
  • FERODO - DDF1591RC1D
  • FTE - 9071004
  • FTE - 9081040
  • FTE - 9081334
  • FTE - BS7794
  • FTE - BS7794B
  • FTE - BS7794HB
  • HELLA - 355109731
  • HELLA - 355109741
  • HELLA - 355109742
  • HELLA - 355121081
  • HELLA - 355128051
  • HELLA - 8DD355109731
  • HELLA - 8DD355109741
  • HELLA - 8DD355109742
  • HELLA - 8DD355121081
  • HELLA - 8DD355128051
  • HELLA PAGID - 355109731
  • HELLA PAGID - 355109741
  • HELLA PAGID - 355109742
  • HELLA PAGID - 355121081
  • HELLA PAGID - 355128051
  • HELLA PAGID - 8DD355109731
  • HELLA PAGID - 8DD355109741
  • HELLA PAGID - 8DD355109742
  • HELLA PAGID - 8DD355121081
  • HELLA PAGID - 8DD355128051
  • JP Group - 1163105080
  • JURID - 562338JC
  • JURID - 562338JC1
  • METZGER - 6110594
  • MEYLE - 1155211102
  • MEYLE - 1155211102PD
  • MEYLE - 1835211102PD
  • MEYLE - MBD0231
  • MEYLE - MBD1547PD
  • OPTIMAL - BS8094
  • OPTIMAL - BS8094C
  • OPTIMAL - BS8094HC
  • PAGID - 54216
  • PAGID - 54216NHC
  • PAGID - 54216PRO
  • PAGID - 65116
  • PORSCHE - 7L6615302D
  • PORSCHE - 7L6615302J
  • PORSCHE - 7L6615302N
  • PORSCHE - 7L6615302P
  • PORSCHE - 955 351 402 41 / 95535140241
  • PORSCHE - 95535140200
  • PORSCHE - 95535140240
  • SEAT - 7L6615302D
  • SEAT - 7L6615302J
  • SEAT - 7L6615302N
  • SKODA - 7L6615302D
  • SKODA - 7L6615302J
  • SKODA - 7L6615302N
  • TEXTAR - 92121600
  • TEXTAR - 92121603
  • TEXTAR - 92121605
  • TEXTAR - 92121610
  • TEXTAR - 98200121601
  • TOPRAN - 111287
  • TRW - DF4307S
  • TRW - DF4762SL
  • TRW - DF4762XSS
  • TRW - DF4763S
  • TRW - DF4763SR
  • TRW - DF4763XSS
  • VAICO - V1080097
  • VAICO - V1080097
  • VALEO - 197253
  • VALEO - 672879
  • VOLKSWAGEN - 7L6615302D
  • VOLKSWAGEN - 7L6615302J
  • VOLKSWAGEN - 7L6615302N
  • VOLKSWAGEN - 7L6615302P
  • VOLKSWAGEN - 95535140200
  • VOLKSWAGEN - 95535140240
  • VOLKSWAGEN - 95535140241
  • ZIMMERMANN - 600.3225.20 / 600322520
  • ZIMMERMANN - 600322500
  • ZIMMERMANN - 600322555
  • ZIMMERMANN - 600322570
  • ZIMMERMANN - 600322572
  • ZIMMERMANN - 600322575
  • febi bilstein - 33164
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
