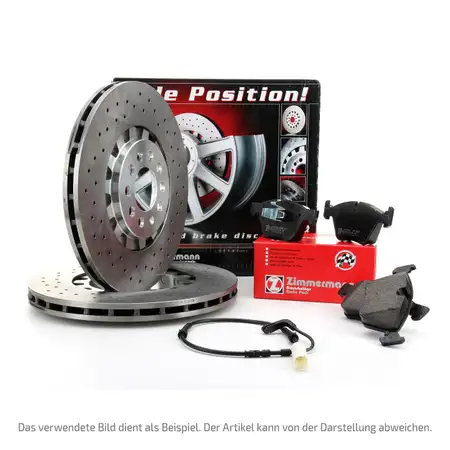

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW 2 Series F87 M2 19-inch Front

ZIMMERMANN

CARIPAR

Item No.: A03652W701
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2971.70, 150.2972.70, 25133.205.1, GBK 444

Items included:

1x Brake Disc Piece - ZIMMERMANN 150.2971.70
1x Brake Disc Piece - ZIMMERMANN 150.2972.70
1x Brake Pad Set, disc brake Set - ZIMMERMANN 25133.205.1
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 444

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle Left
Outer Diameter [mm]: 400
Hole Arrangement/Number: 10/5
Surface: Coated
directional:
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 65
Brake Disc Thickness [mm]: 36
Minimum thickness [mm]: 34,4
Machining: Alloyed/High-carbon
Weight [kg]: 13,9
Centering Diameter [mm]: 79
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

BMW - 3411 8 072 017 / 34118072017
ECORA - 4250238782162
SHW Performance - BFL48251
ZIMMERMANN - 150.2971.20 / 150297120
ZIMMERMANN - 150.2971.52 / 150297152
ZIMMERMANN - 150.2971.70 / 150297170

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle Right
Outer Diameter [mm]: 400
Hole Arrangement/Number: 10/5
Surface: Coated
directional:
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 65
Brake Disc Thickness [mm]: 36
Minimum thickness [mm]: 34,4
Machining: Alloyed/High-carbon
Weight [kg]: 13,9
Centering Diameter [mm]: 79
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

BMW - 3411 8 072 018 / 34118072018
ECORA - 4250238782179
SHW Performance - BFR48252
ZIMMERMANN - 150.2972.20 / 150297220
ZIMMERMANN - 150.2972.52 / 150297252
ZIMMERMANN - 150.2972.70 / 150297270

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 25133
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width [mm]: 208
Height [mm]: 87
Brake System: BREMBO
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

BMW - 3411 2 284 369 / 34112284369
BMW - 3411 2 284 371 / 34112284371
BMW - 3411 2 284 869 / 34112284869
BREMBO - P 06 079 / P06079
BREMBO - P 06 079 / P06079
DELPHI - LP3156
ECORA - 4250238769880
HELLA PAGID - 8DB 355 019-991 / 8DB355019991
TEXTAR - 2513301
TRW - GDB2020
ZIMMERMANN - 25133
ZIMMERMANN - 25133.205.1 / 251332051
ZIMMERMANN - D1648-8876 / D16488876
ZIMMERMANN - D1648-8876 / D16488876

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle Left

reference numbers - for comparison

ATE - 24.8190-0006.2 / 24819000062
ATE - 620006
BMW - 34 35 6 792 289 / 34356792289
BOSCH - 1 987 474 550 / 1987474550
BREMBO - A 00 473 / A00473
BREMBO - A 00 473 / A00473
Caripar - GBK 444 / GBK444
DELPHI - LZ0239
HELLA PAGID - 8DK 355 252-341 / 8DK355252341
JURID - 581472
PAGID - P8629
PAGID - P8629
TEXTAR - 98047500
febi bilstein - 39138
