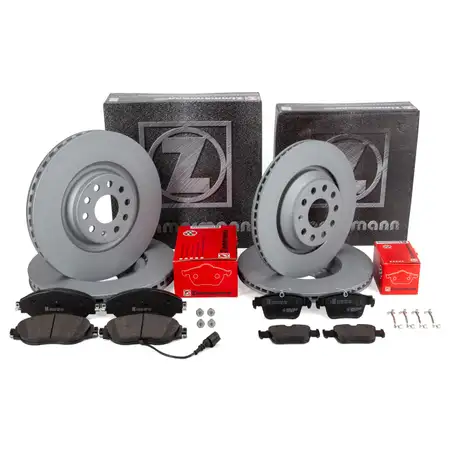

ZIMMERMANN Brake Discs + Pads + Sensor for VW Golf 8 GTI, GTE, GTD, and CUPRA (Front + Rear)

ZIMMERMANN Brake Discs + Pads + Sensor for VW Golf 8 GTI, GTE, GTD, and CUPRA (Front + Rear)

Item No.: A04652W546
Manufacturer: ZIMMERMANN
part number: 600.3243.20, 24738.200.2, 100.3309.20, 26206.160.2

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 340
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 65
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 27
Processing: High-carbon
Brake Disc Thickness [mm]: 30
Weight [kg]: 10,7
Height [mm]: 50

reference numbers - for comparison

ATE - 24013002251
ATE - 430225
AUDI - 1K0615301AD
AUDI - 3C0615301C
AUDI - 3C0615301D
AUDI - 5Q0615301G
AUDI - 5QN615301A
AUDI - 8S0615301
AUDI - 8S0615301D
BLUE PRINT - ADV184372
BOSCH - 0986479734
BOSCH - 0986479C90
BREMBO - 09C30611
BREMBO - 09C3061E
BREMBO - 09C3061S
BREMBO - 09C3061X
BREMBO - 59E11457
CUPRA - 1K0615301AD
CUPRA - 3C0615301C
CUPRA - 3C0615301D
CUPRA - 5Q0615301G
CUPRA - 5QN615301A
CUPRA - 8S0615301
CUPRA - 8S0615301D
DELPHI - BG9109
DELPHI - BG9109C
DELPHI - BG9109C19B1
EUROREPAR - 1618886580
EUROREPAR - 1686347880
FERODO - DDF2000C
FERODO - DDF2000C1
FERODO - DDF2592C1
FERODO - DDF3062C1
FTE - 9071055
FTE - 9081017
FTE - BS7706
FTE - BS7706B
HELLA - 355117201
HELLA - 355121921
HELLA - 355129241
HELLA - 355129242
HELLA - 8DD355117201
HELLA - 8DD355121921
HELLA - 8DD355129241
HELLA - 8DD355129242
HELLA PAGID - 355117201
HELLA PAGID - 355121921
HELLA PAGID - 355129241
HELLA PAGID - 355129242
HELLA PAGID - 8DD355117201
HELLA PAGID - 8DD355121921
HELLA PAGID - 8DD355129241
HELLA PAGID - 8DD355129242
HERTH+BUSS JAKOPARTS - J3300866
HERTH+BUSS JAKOPARTS - J3300866
JP Group - 1163114400
JURID - 562663JC
JURID - 562663JC1
JURID - 563171JC1
JURID - 563706JC1
MAGNETI MARELLI - 360406182301
MAGNETI MARELLI - 360406185402
METZGER - 6110715
MEYLE - 1835210008PD
MEYLE - MBD1528PD
OPTIMAL - BS8712
OPTIMAL - BS8712C
OPTIMAL - BS8712HC
PAGID - 55298
PAGID - 55298NHC
PAGID - 55298PRO
SEAT - 1K0615301AD
SEAT - 3C0615301C
SEAT - 3C0615301D
SEAT - 5Q0615301G
SEAT - 5QN615301A
SEAT - 8S0615301
SEAT - 8S0615301D
SKODA - 1K0615301AD
SKODA - 3C0615301C
SKODA - 3C0615301D
SKODA - 5Q0615301G
SKODA - 5QN615301A
SKODA - 8S0615301
SKODA - 8S0615301D
TEXTAR - 92229803
TEXTAR - 98200229801
TEXTAR - MDC82253C
TOPRAN - 114839
TRUCKTEC AUTOMOTIVE - 0735258
TRW - DF6133S
VAICO - V1080119
VAICO - V1080119
VALEO - 197677
VALEO - 672769
VOLKSWAGEN - 1K0615301AD
VOLKSWAGEN - 3C0615301C
VOLKSWAGEN - 3C0615301D
VOLKSWAGEN - 5Q0615301G
VOLKSWAGEN - 5QN615301A
VOLKSWAGEN - 8S0615301
VOLKSWAGEN - 8S0615301D
ZIMMERMANN - 4250238753377
ZIMMERMANN - 600.3243.20 / 600324320
ZIMMERMANN - 600324320
ZIMMERMANN - 600324352
ZIMMERMANN - 600324354
ZIMMERMANN - 600324355
ZIMMERMANN - 600326270
febi bilstein - 39129

item specifications

Component: Braking System
Width 1 [mm]: 175
Fitting Position: Front Axle
Number of wear indicators [per axle]: 1
Test Mark: ECE R90 APPROVED
WVA Number: 24738
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 20
Brake System: TRW
Wear Warning Contact: incl. wear warning contact
Height 1 [mm]: 70

reference numbers - for comparison

ATE - 13.0470-2617.2 / 13047026172
BOSCH - 0 986 424 285 / 0986424285
BREMBO - P 85 144 / P85144
BREMBO - P 85 144 / P85144
BREMBO - P 85 144X / P85144X
BREMBO - P 85 144X / P85144X
DELPHI - LP3389
FERODO - FDB4425
FERODO - FDB5096
FTE - BL2670A1
HELLA - 8DB 355 021-971 / 8DB355021971
HELLA PAGID - 8DB 355 021-971 / 8DB355021971
JURID - 573418J
SEAT - 3Q0 698 151 B / 3Q0698151B
SEAT - 5Q0 698 151 AG / 5Q0698151AG
SEAT - 5Q0 698 151 AJ / 5Q0698151AJ
SEAT - 5Q0 698 151 K / 5Q0698151K
SEAT - 5Q0 698 151 L / 5Q0698151L
SEAT - 8V0 698 151 C / 8V0698151C
SKODA - 3Q0 698 151 B / 3Q0698151B
SKODA - 5Q0 698 151 AG / 5Q0698151AG
SKODA - 5Q0 698 151 AJ / 5Q0698151AJ
SKODA - 5Q0 698 151 K / 5Q0698151K
SKODA - 5Q0 698 151 L / 5Q0698151L
SKODA - 8V0 698 151 C / 8V0698151C
TEXTAR - 2473803
TRW - GDB2114
VAG - 3Q0 698 151 B / 3Q0698151B
VAG - 5Q0 698 151 AG / 5Q0698151AG
VAG - 5Q0 698 151 AJ / 5Q0698151AJ
VAG - 5Q0 698 151 AJ / 5Q0698151AJ
VAG - 5Q0 698 151 K / 5Q0698151K
VAG - 5Q0 698 151 L / 5Q0698151L
VAG - 8V0 698 151 C / 8V0698151C
VALEO - 601286
VOLKSWAGEN - 5Q0 698 151 AJ / 5Q0698151AJ
ZIMMERMANN - 24738
ZIMMERMANN - 24738.200.2 / 247382002
ZIMMERMANN - 24738.200.2 / 247382002
ZIMMERMANN - 25217
ZIMMERMANN - 4250238756835
ZIMMERMANN - 602617
febi bilstein - 16868

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 310
Surface: Coated
Component: Braking System
Brake Disc Type: Externally Vented
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 65
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 20
Processing: High-carbon
Brake Disc Thickness [mm]: 22
Weight [kg]: 6,8
Height [mm]: 49

reference numbers - for comparison

ATE - 24012202191
ATE - 422219
AUDI - 1K0615601N
AUDI - 3QD615601A
AUDI - 3QF615601A
AUDI - 5Q0615601E
AUDI - 5QM615601A
BLUE PRINT - ADV184310
BOSCH - 0986479303
BOSCH - F026A09385
BOSCH - F026A09385
BREMBO - 09A20010
BREMBO - 09A20011
BREMBO - 09A2001E
BREMBO - 09A2001S
BREMBO - 09A2001X
BREMBO - 09A20075
BREMBO - 09A2010
BREMBO - 09A2011
BREMBO - 09A2014
BREMBO - 59E11454
CHAMPION - 562432CH
CUPRA - 1K0615601N
CUPRA - 3QD615601A
CUPRA - 3QF615601A
CUPRA - 5Q0615601E
CUPRA - 5QM615601A
DELPHI - BG3975
DELPHI - BG3975C18B1
DELPHI - BG3975C19B1
EUROREPAR - 1642767980
EUROREPAR - 1671247780
EUROREPAR - 1684270680
EUROREPAR - 1686338480
FERODO - DDF1503
FERODO - DDF15031
FERODO - DDF1503C
FERODO - DDF1503C1
FERODO - DDF2720C1D
FTE - 9072560
FTE - 9082186
FTE - 9082592
FTE - BS7184
FTE - BS7184B
FTE - BS7184HB
HELLA - 355112111
HELLA - 355112121
HELLA - 355112122
HELLA - 355121911
HELLA - 355128451
HELLA - 8DD355112111
HELLA - 8DD355112121
HELLA - 8DD355112122
HELLA - 8DD355121911
HELLA - 8DD355128451
HELLA PAGID - 355112111
HELLA PAGID - 355112121
HELLA PAGID - 355112122
HELLA PAGID - 355121911
HELLA PAGID - 355128451
HELLA PAGID - 8DD355112111
HELLA PAGID - 8DD355112121
HELLA PAGID - 8DD355112122
HELLA PAGID - 8DD355121911
HELLA PAGID - 8DD355128451
HERTH+BUSS JAKOPARTS - J3310844
HERTH+BUSS JAKOPARTS - J3310844
JP Group - 1163201000
JURID - 562432J
JURID - 562432JC
JURID - 562432JC1
MAGNETI MARELLI - 360406140002
METZGER - 6110556
MEYLE - 1155230026
MEYLE - 1155230026PD
MEYLE - MBD1801
MEYLE - MBD1801PD
OPTIMAL - BS8044
OPTIMAL - BS8044C
PAGID - 54407
PAGID - 54407NC
PAGID - 54407PRO
SEAT - 1K0615601N
SEAT - 3QD615601A
SEAT - 3QF615601A
SEAT - 5Q0615601E
SEAT - 5QM615601A
SKODA - 1K0615601N
SKODA - 3QD615601A
SKODA - 3QF615601A
SKODA - 5Q0615601E
SKODA - 5Q0615601S
SKODA - 5QM615601A
TEXTAR - 92140703
TEXTAR - 92140705
TEXTAR - 98200140701
TEXTAR - MDC81813C
TOPRAN - 110418
TRUCKTEC AUTOMOTIVE - 0735302
TRW - DF4754
TRW - DF4754S
VAG - 5Q0 615 601 E / 5Q0615601E
VAICO - V1080084
VAICO - V1080084
VALEO - 197139
VALEO - 672544
VOLKSWAGEN - 1K0615601N
VOLKSWAGEN - 3QD615601A
VOLKSWAGEN - 3QF615601A
VOLKSWAGEN - 5Q0 615 601 E / 5Q0615601E
VOLKSWAGEN - 5Q0615601E
VOLKSWAGEN - 5QM615601A
ZIMMERMANN - 100.3309.20 / 100330920
ZIMMERMANN - 100330900
ZIMMERMANN - 100330920
ZIMMERMANN - 100330952
ZIMMERMANN - 100330953
ZIMMERMANN - 100330970
ZIMMERMANN - 100330972
ZIMMERMANN - 100330975
ZIMMERMANN - 4250238718208
febi bilstein - 24386

item specifications

Component: Braking System
Width [mm]: 123
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
WVA Number: 26206
Quantity Unit: Set
Supplementary Article/Supplementary Info: with sliding plate
Supplementary Article/Supplementary Info: with spring
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 16
Height 2 [mm]: 56
Brake System: ATE
Wear Warning Contact: not prepared for wear warning indicator
Sliding plate internal dimension [mm]: 55,0
Height 1 [mm]: 58

reference numbers - for comparison

ATE - 13.0460-7355.2 / 13046073552
ATE - 13.0470-7355.2 / 13047073552
BOSCH - 0 986 460 074 / 0986460074
BREMBO - P 85 184 / P85184
BREMBO - P 85 184 / P85184
FERODO - FDB5357
HELLA PAGID - 8DB 355 040-851 / 8DB355040851
JURID - 574093J
RAICAM - RA.1280.2 / RA12802
TEXTAR - 2620601
VAG - 5QS 698 451 / 5QS698451
VAG - 5WA 698 451 A / 5WA698451A
VAG - 5WA 698 451 A / 5WA698451A
VAG - 5WA 698 451 C / 5WA698451C
VAG - 5WA 698 451 C / 5WA698451C
VAG - 5WA 698 451 F / 5WA698451F
VAG - 5WA 698 451 F / 5WA698451F
VAG - 5WA 698 451 J / 5WA698451J
VAG - 5WA 698 451 K / 5WA698451K
VOLKSWAGEN - 5WA 698 451 A / 5WA698451A
VOLKSWAGEN - 5WA 698 451 C / 5WA698451C
VOLKSWAGEN - 5WA 698 451 F / 5WA698451F
ZIMMERMANN - 26206
ZIMMERMANN - 26206 160 1 5 / 2620616015
ZIMMERMANN - 26206.160.2 / 262061602
ZIMMERMANN - 26207
ZIMMERMANN - 4250238788294

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
