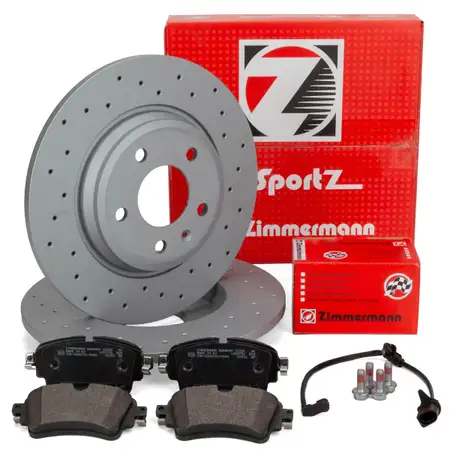

Zimmermann SPORT Brake Discs + Brake Pads + Sensor for AUDI A4 8W B9 A5 F5 (Rear)

Zimmermann SPORT Brake Discs + Brake Pads + Sensor for AUDI A4 8W B9 A5 F5 (Rear)

Item No.: A05652W045
Manufacturer: ZIMMERMANN, CARIPAR
part number: 100.3379.52, 22308.175.1, GBK 845

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: solid
Brake Disc Type: Perforated
Fitting Position: Rear Axle
Outer Diameter [mm]: 300
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 36
Brake Disc Thickness [mm]: 12
Minimum thickness [mm]: 10
Weight [kg]: 5,3
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24011202181
ATE - 412218
AUDI - 80A615601
AUDI - 80A615601B
AUDI - 8W0615601C
AUDI - 8W0615601H
AUDI - 8WD615601
AUDI - L8WD615601
AUDI - L8WD615601
BOSCH - 0986479E33
BREMBO - 08D06011
BREMBO - 08D0601G
BREMBO - 08D0601X
DELPHI - BG4800C
DELPHI - BG4800C18B1
DELPHI - BG4800C19B1
ECORA - 4250238790358
EUROREPAR - 1686330380
FERODO - DDF2599C
FERODO - DDF2871C1D
FTE - 9082641
FTE - BS7893B
HELLA - 355125191
HELLA - 8DD355125191
HELLA PAGID - 355125191
HELLA PAGID - 8DD355125191
JURID - 563177JC
MAGNETI MARELLI - 360406183401
OPTIMAL - BS9630C
PAGID - 55828
PAGID - 55828NC
SEAT - 80A615601B
SEAT - 8W0615601C
SEAT - 8W0615601H
SKF - VKBD90044S2
SKODA - 80A615601B
SKODA - 8W0615601C
SKODA - 8W0615601H
TEXTAR - 92282803
TEXTAR - 92282805
TEXTAR - 98200282801
TOPRAN - 631154
TRUCKTEC AUTOMOTIVE - 0735303
TRW - DF6981S
TRW - DF8354S
VALEO - 496093
VALEO - 672718
VOLKSWAGEN - 80A615601B
VOLKSWAGEN - 8W0615601C
VOLKSWAGEN - 8W0615601H
ZIMMERMANN - 100.3379.52 / 100337952
ZIMMERMANN - 100333352
ZIMMERMANN - 100337920

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 22308
Fitting Position: Rear Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 18
Width [mm]: 129
Height [mm]: 59
Brake System: TRW
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-2796.2 / 13046027962
ATE - 13.0470-2796.2 / 13047027962
ATE - 602796
AUDI - 4N0 698 451 / 4N0698451
AUDI - 80A 698 451 Q / 80A698451Q
AUDI - 8W0 698 451 BE / 8W0698451BE
AUDI - 8W0 698 451 BF / 8W0698451BF
AUDI - 8W0 698 451 BG / 8W0698451BG
AUDI - 8W0 698 451 BJ / 8W0698451BJ
AUDI - 8W0 698 451 F / 8W0698451F
AUDI - 8W0 698 451 G / 8W0698451G
AUDI - 8W0 698 451 H / 8W0698451H
AUDI - 8W0 698 451 J / 8W0698451J
AUDI - 8W0 698 451 K / 8W0698451K
AUDI - 8W0 698 451 L / 8W0698451L
AUDI - 8W0 698 451 N / 8W0698451N
AUDI - 8W0 698 451 P / 8W0698451P
AUDI - 8W0 698 451 Q / 8W0698451Q
AUDI - 8W0 698 451 R / 8W0698451R
AUDI - 8W0 698 451 S / 8W0698451S
BOSCH - 0 986 494 833 / 0986494833
BREMBO - 07.B315.74 / 07B31574
BREMBO - P 85 154 / P85154
BREMBO - P 85 154 / P85154
BREMBO - P 85 154X / P85154X
BREMBO - P 85 154X / P85154X
ECORA - 4250238778073
FERODO - FDB4617
HELLA PAGID - 8DB 355 024-791 / 8DB355024791
JURID - 573628J
RAICAM - RA.1132.0 / RA11320
TEXTAR - 2230801
TRW - GDB2132
VAG - 4N0 698 451 / 4N0698451
VAG - 4N0 698 451 J / 4N0698451J
VAG - 80A 698 451 B / 80A698451B
VAG - 8W0 698 451 BC / 8W0698451BC
VAG - 8W0 698 451 BD / 8W0698451BD
VAG - 8W0 698 451 E / 8W0698451E
VAG - 8W0 698 451 F / 8W0698451F
VAG - 8W0 698 451 G / 8W0698451G
VAG - 8W0 698 451 H / 8W0698451H
VAG - 8W0 698 451 J / 8W0698451J
VAG - 8W0 698 451 K / 8W0698451K
VAG - 8W0 698 451 L / 8W0698451L
VAG - 8W0 698 451 N / 8W0698451N
VAG - 8W0 698 451 P / 8W0698451P
VAG - 8W0 698 451 Q / 8W0698451Q
VAG - 8W0 698 451 R / 8W0698451R
VAG - 8W0 698 451 S / 8W0698451S
VAG - 8W0 698 451 T / 8W0698451T
VOLKSWAGEN - 8W0 698 451 BC / 8W0698451BC
ZIMMERMANN - 22308
ZIMMERMANN - 22308.175.1 / 223081751
ZIMMERMANN - 22309
ZIMMERMANN - D1898-9126 / D18989126
ZIMMERMANN - D1898-9126 / D18989126

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24819009692
ATE - 620969
Caripar - GBK 845 / GBK845
VAG - 4M0 615 121 P / 4M0615121P
VAG - 8W0 615 121 E / 8W0615121E
VOLKSWAGEN - 4M0 615 121 P / 4M0615121P
VOLKSWAGEN - 8W0 615 121 E / 8W0615121E

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
