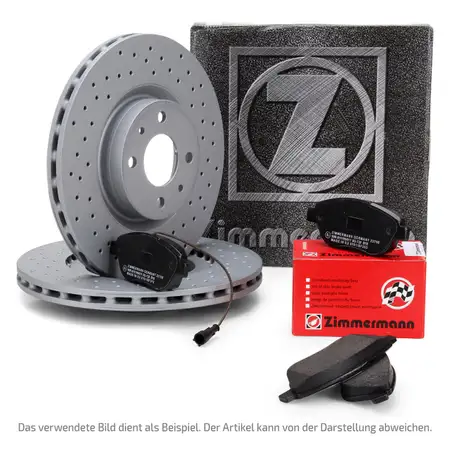

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW E81, E87 (up to March 2010), 3 Series E90 330i (front)

ZIMMERMANN

CARIPAR

Item No.: A05652W371
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2935.20, 24316.170.1, GBK 437

item specifications

Bolt Hole Circle Ø [mm]: 120
Outer Diameter [mm]: 338
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: slotted/perforated
Fitting Position: Front Axle
Test Mark: KBA 61385
Centering Diameter [mm]: 79
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 24,4
Processing: High-carbon
Brake Disc Thickness [mm]: 26
Weight [kg]: 10,8
Height [mm]: 73

reference numbers - for comparison

BMW - 3411 6 786 392 / 34116786392
BMW - 6 786 392 / 6786392
BOSCH - 0 986 479 E09 / 0986479E09
BREMBO - 09.C420.13 / 09C42013
FERODO - DDF2618VC-1 / DDF2618VC1
HELLA PAGID - 8DD 355 123-041 / 8DD355123041
TEXTAR - 92266925
ZIMMERMANN - 150.2935.20 / 150293520
ZIMMERMANN - 150.2935.32 / 150293532
ZIMMERMANN - 4250238764762

item specifications

Component: Braking System
Width [mm]: 165
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 24316
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 16
Height [mm]: 74
Brake System: BREMBO
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13.0460-4848.2 / 13046048482
ATE - 13.0470-4848.2 / 13047048482
BMW - 3411 6 784 807 / 34116784807
BMW - 3411 6 786 044 / 34116786044
BMW - 6 784 807 / 6784807
BMW - 6 786 044 / 6786044
BOSCH - 0 986 494 428 / 0986494428
BREMBO - P 06 041 / P06041
BREMBO - P 06 041 / P06041
FERODO - FDB4218
HELLA - 8DB 355 014-041 / 8DB355014041
JURID - 573294J
TEXTAR - 2431601
TRW - GDB1802
ZIMMERMANN - 24316
ZIMMERMANN - 24316.170.1 / 243161701
ZIMMERMANN - 4250238756828

item specifications

Component: Braking System
Fitting Position: Front Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
