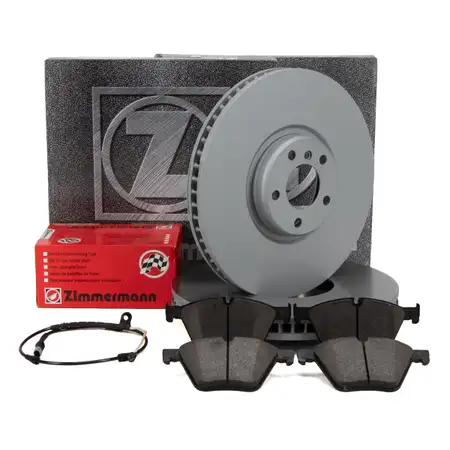

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN Brake Discs + Pads + Sensor for BMW X5 E70, F15, X6 E71, E72 50i, M50d (Front)

ZIMMERMANN

CARIPAR

Item No.: A05652W444
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2917.20, 150.2918.20, 24436.200.1, GBK 468

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle Left
Outer Diameter [mm]: 385
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 62
Brake Disc Thickness [mm]: 36
Minimum thickness [mm]: 34,4
Machining: High-carbon
Weight [kg]: 17
Centering Diameter [mm]: 75
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED
Shape: Form differs from original
Multi-piece: one-piece

reference numbers - for comparison

ATE - 24.0136-0113.2 / 24013601132
BMW - 34 10 6 898 725 / 34106898725
BMW - 3411 6 782 067 / 34116782067
BOSCH - 0 986 479 E26 / 0986479E26
BREMBO - 09.C412.13 / 09C41213
ECORA - 4250238758426
HELLA PAGID - 8DD 355 120-721 / 8DD355120721
TEXTAR - 92266425
TRW - DF6618S
ZIMMERMANN - 150.2917.20 / 150291720
ZIMMERMANN - 150.2917.32 / 150291732
ZIMMERMANN - 150.2917.52 / 150291752

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle Right
Outer Diameter [mm]: 385
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 62
Brake Disc Thickness [mm]: 36
Minimum thickness [mm]: 34,4
Machining: High-carbon
Weight [kg]: 17
Centering Diameter [mm]: 75
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED
Shape: Form differs from original
Multi-piece: one-piece

reference numbers - for comparison

ATE - 24.0136-0112.2 / 24013601122
BMW - 34 10 6 898 726 / 34106898726
BMW - 3411 6 782 068 / 34116782068
BOSCH - 0 986 479 E25 / 0986479E25
BREMBO - 09.C413.13 / 09C41313
ECORA - 4250238758433
HELLA PAGID - 8DD 355 120-731 / 8DD355120731
TEXTAR - 92266525
TRW - DF6619S
ZIMMERMANN - 150.2918.20 / 150291820
ZIMMERMANN - 150.2918.32 / 150291832
ZIMMERMANN - 150.2918.52 / 150291852

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24436
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width [mm]: 193
Height [mm]: 97
Brake System: ATE
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-7261.2 / 13046072612
BMW - 3411 2 413 080 / 34112413080
BMW - 3411 4 065 325 / 34114065325
BMW - 3411 6 775 326 / 34116775326
BMW - 3411 6 783 554 / 34116783554
BMW - 3411 6 791 527 / 34116791527
BMW - 3411 6 792 874 / 34116792874
BMW - 3411 6 794 464 / 34116794464
BREMBO - P 06 073 / P06073
BREMBO - P 06 073 / P06073
DELPHI - LP2210
ECORA - 4250238761488
FERODO - FDB4258
HELLA PAGID - 8DB 355 020-121 / 8DB355020121
JURID - 573457J
TEXTAR - 2443601
TRW - GDB1964
VALEO - 601413
ZIMMERMANN - 24436.200.1 / 244362001
ZIMMERMANN - 24436.900.1 / 244369001
ZIMMERMANN - 24437
ZIMMERMANN - D1443-8594 / D14438594
ZIMMERMANN - D1443-8594 / D14438594
ZIMMERMANN - D1529-8594 / D15298594
ZIMMERMANN - D1529-8594 / D15298594
febi bilstein - 116032

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Left Front

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
