Is this part compatible with my vehicle?

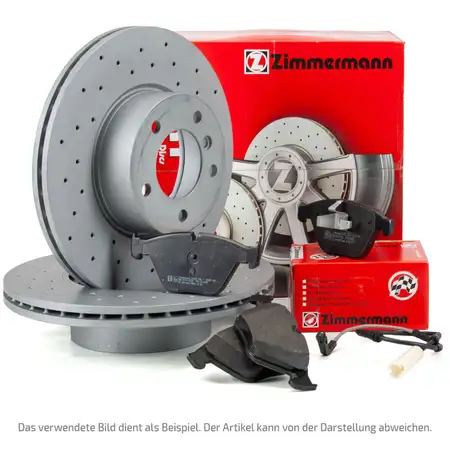

Zimmermann SPORT Brake Discs + Pads + Sensor for BMW Z4 E89 sDrive35i/is (March 2010) - Front

Item No.: A05652W461

Zimmermann SPORT Brake Discs + Pads + Sensor for BMW Z4 E89 sDrive35i/is (March 2010) - Front

Item No.: A05652W461
ZIMMERMANN febi bilstein
Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 348
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 79
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 28,4
  • Processing: High-carbon
  • Version: Sport
  • Brake Disc Thickness [mm]: 30
  • Weight [kg]: 11,1
  • Height [mm]: 73
reference numbers - for comparison
  • ATE - 24.0130-0216.2 / 24013002162
  • BMW - 3411 6 782 593 / 34116782593
  • BOSCH - 0 986 479 E24 / 0986479E24
  • BREMBO - 09.C415.13 / 09C41513
  • ECORA - 4250238758792
  • FERODO - DDF2616VC-1 / DDF2616VC1
  • HELLA - 8DD 355 120-751 / 8DD355120751
  • TEXTAR - 92266825
  • ZIMMERMANN - 150.3491.20 / 150349120
  • ZIMMERMANN - 150.3491.32 / 150349132
  • ZIMMERMANN - 150.3491.52 / 150349152
  • ZIMMERMANN - 4250238758792
Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width 1 [mm]: 155
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24161
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 20
  • Width 2 [mm]: 155
  • Height [mm]: 64
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-7237.2 / 13046072372
  • ATE - 13.0470-7237.2 / 13047072372
  • BMW - 3411 2 283 764 / 34112283764
  • BMW - 3411 2 288 870 / 34112288870
  • BMW - 3411 6 776 161 / 34116776161
  • BMW - 3411 6 783 542 / 34116783542
  • BOSCH - 0 986 494 036 / 0986494036
  • BREMBO - P 06 081 / P06081
  • BREMBO - P 06 081 / P06081
  • ECORA - 4250238746560
  • FERODO - FDB4221
  • FERODO - FDB5352
  • HELLA - 8DB 355 015-601 / 8DB355015601
  • JURID - 574087J
  • RAICAM - RA.0789.4 / RA07894
  • TEXTAR - 2331303
  • TRW - GDB1498
  • TRW - GDB1498DTE
  • ZIMMERMANN - 23347
  • ZIMMERMANN - 24161
  • ZIMMERMANN - 24161.200.1 / 241612001
  • ZIMMERMANN - 4250238746560
Warning Contact, brake pad wear
item specifications
  • Number of connectors: 2
  • Component: Braking System
  • Length [mm]: 1015
  • Fitting Position: Front Axle
  • Brake Type: Disc Brake
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24.8190-0295.2 / 24819002952
  • ATE - 620295
  • BMW - 34 35 6 792 563 / 34356792563
  • BOSCH - 1 987 473 540 / 1987473540
  • BREMBO - A 00 487 / A00487
  • BREMBO - A 00 487 / A00487
  • CHAMPION - FWI353
  • DELPHI - LZ0222
  • ECORA - 4027816374589
  • FERODO - FWI353
  • FTE - 9410116
  • HELLA - 8DK 355 252-061 / 8DK355252061
  • HELLA PAGID - 8DK 355 252-061 / 8DK355252061
  • JURID - FWI353
  • MAGNETI MARELLI - 359003101580
  • MAGNETI MARELLI - 363700400487
  • MEAT & DORIA - 212036
  • METZGER - 1190247
  • METZGER - WK 17-247 / WK17247
  • OPTIMAL - WKT-60036K / WKT60036K
  • PAGID - P8622
  • PAGID - P8622
  • PAGID - P8622N
  • PAGID - P8622N
  • QUICK BRAKE - WS 0294 A / WS0294A
  • QUICK BRAKE - WS 0294 B / WS0294B
  • RAICAM - KS0045
  • TEXTAR - 98046800
  • TEXTAR - 98046810
  • TRW - GIC338
  • TRW - GIC338CN
  • VEMO - V20-72-0078 / V20720078
  • VEMO - V20-72-0078 / V20720078
  • febi bilstein - 37458
  • febi bilstein - 4027816374589
