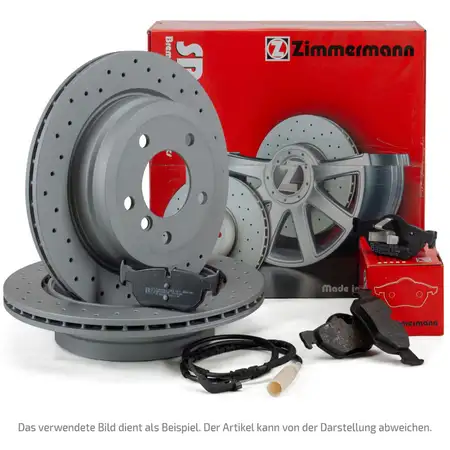

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

Zimmermann SPORT brake discs + pads Sensor for BMW X5 25/30d without third-row seats in the rear

ZIMMERMANN

CARIPAR

Item No.: A05652W439
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2952.52, 150.2953.52, 24704.180.2, GBK 461

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 330
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Rear Axle Left
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 67
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 18,4
Processing: High-carbon
Brake Disc Thickness [mm]: 20
Weight [kg]: 7,8
directional:
Height [mm]: 64

reference numbers - for comparison

ATE - 24.0120-0255.2 / 24012002552
BMW - 3420 6 883 979 / 34206883979
BMW - 3420 7 915 319 / 34207915319
BMW - 3421 6 860 923 / 34216860923
BMW - 3421 6 882 245 / 34216882245
BMW - 6 860 923 / 6860923
BMW - 6 882 245 / 6882245
BMW - 6 883 979 / 6883979
BMW - 7 915 319 / 7915319
BOSCH - 0 986 479 G14 / 0986479G14
BREMBO - 09.D902.13 / 09D90213
FERODO - DDF3042LC-1 / DDF3042LC1
HERTH+BUSS JAKOPARTS - J3312096
HERTH+BUSS JAKOPARTS - J3312096
TEXTAR - 92305025
TOYOTA - 42431-WAA02 / 42431WAA02
ZIMMERMANN - 150.2952.20 / 150295220
ZIMMERMANN - 150.2952.32 / 150295232
ZIMMERMANN - 150.2952.52 / 150295252
ZIMMERMANN - 4250238776659

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 330
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle Right
Fitting Position: Rear Axle Right
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 67
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 18,4
Processing: High-carbon
Brake Disc Thickness [mm]: 20
Weight [kg]: 7,8
directional:
Height [mm]: 64

reference numbers - for comparison

ATE - 24.0120-0254.2 / 24012002542
BMW - 3420 6 883 980 / 34206883980
BMW - 3420 7 915 320 / 34207915320
BMW - 3421 6 882 246 / 34216882246
BMW - 6 882 246 / 6882246
BMW - 6 883 980 / 6883980
BMW - 7 915 320 / 7915320
BOSCH - 0 986 479 G15 / 0986479G15
BREMBO - 09.D903.13 / 09D90313
FERODO - DDF3042RC-1 / DDF3042RC1
HERTH+BUSS JAKOPARTS - J3312097
HERTH+BUSS JAKOPARTS - J3312097
TEXTAR - 92305125
TOYOTA - 42431-WAA03 / 42431WAA03
ZIMMERMANN - 150.2953.20 / 150295320
ZIMMERMANN - 150.2953.32 / 150295332
ZIMMERMANN - 150.2953.52 / 150295352
ZIMMERMANN - 4250238776666

item specifications

Component: Braking System
Width [mm]: 116
Width [mm]: 116,1
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
WVA Number: 25636
WVA Number: 24704
Quantity Unit: Set
Supplementary Article/Supplementary Info: with sliding plate
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 18
Height 2 [mm]: 72
Weight [kg]: 1,55
Height [mm]: 65,6
Brake System: TRW
Wear Warning Contact: prepared for wear warning indicator
Sliding plate internal dimension [mm]: 28,1
Height 1 [mm]: 66

reference numbers - for comparison

ATE - 13.0460-2716.2 / 13046027162
ATE - 13.0470-2716.2 / 13047027162
BMW - 3421 6 870 552 / 34216870552
BMW - 3421 6 890 353 / 34216890353
BMW - 3421 6 890 354 / 34216890354
BMW - 3421 6 896 975 / 34216896975
BMW - 3421 6 896 976 / 34216896976
BMW - 6 870 552 / 6870552
BMW - 6 890 353 / 6890353
BMW - 6 890 354 / 6890354
BMW - 6 896 975 / 6896975
BMW - 6 896 976 / 6896976
BOSCH - 0 986 424 922 / 0986424922
BREMBO - P 06 101 / P06101
BREMBO - P 06 101 / P06101
FERODO - FDB5056
HELLA PAGID - 8DB 355 024-921 / 8DB355024921
JURID - 573878J
RAICAM - RA.1045.2 / RA10452
TEXTAR - 2470401
ZIMMERMANN - 24704
ZIMMERMANN - 24704.180.2 / 247041802
ZIMMERMANN - 25636
ZIMMERMANN - 4250238782117

item specifications

Component: Braking System
Fitting Position: Rear Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24819008252
ATE - 620825
BMW - 34 35 6 870 352 / 34356870352
BMW - 34356870352
BMW - 6870352
BOSCH - 1987473617
BREMBO - A00620
BREMBO - A00620
CHAMPION - FWI502
Caripar - GBK 461 / GBK461
DELPHI - LZ0337
FERODO - FWI502
HELLA - 355252871
HELLA - 8DK355252871
HELLA PAGID - 355252871
HELLA PAGID - 8DK355252871
JURID - FWI502
METZGER - 1190316
PAGID - P8757
PAGID - P8757
PAGID - P8757N
PAGID - P8757N
QUICK BRAKE - WS0436A
TEXTAR - 98061310
TRW - GIC504CN
febi bilstein - 171448

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
