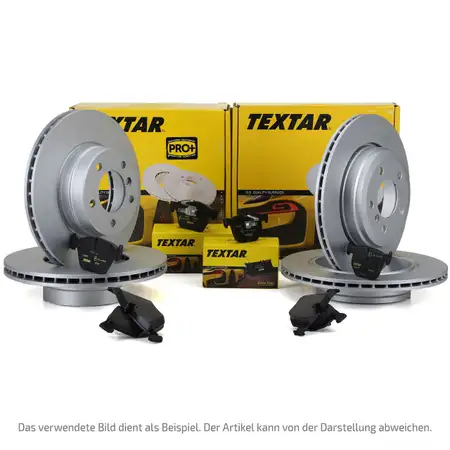

TEXTAR Brake Kit: Brake Discs + Brake Pads for OPEL Zafira Tourer C (Front + Rear)

TEXTAR Brake Kit: Brake Discs + Brake Pads for OPEL Zafira Tourer C (Front + Rear)

Item No.: A07652W075
Manufacturer: TEXTAR
part number: 92256803, 2441201, 92239803, 2509606

item specifications

Bolt Hole Circle Ø [mm]: 115
Surface: Coated
Outer Diameter [mm]: 321
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Packaging length [cm]: 34,3
Centering Diameter [mm]: 70,7
Quantity Unit: Piece
Packaging height [cm]: 7,5
Hole Arrangement/Number: 05/06
Minimum thickness [mm]: 27
Packaging width [cm]: 34,3
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Brake Disc Thickness [mm]: 30
Weight [kg]: 9,8
Height [mm]: 45,6
Inner Diameter [mm]: 160,2
Wheel Bolt Bore Diameter [mm]: 14,2

reference numbers - for comparison

ATE - 24013002241
ATE - 430224
BLUE PRINT - ADW194320
BOSCH - 0986479667
BREMBO - 09C37710
BREMBO - 09C37711
BREMBO - 09C3771X
DELPHI - BG4672C
EUROREPAR - 1642764880
EUROREPAR - 1686331680
EUROREPAR - 1686721180
FERODO - DDF1722
FERODO - DDF2191C
FERODO - DDF2191C1
FTE - 9071090
FTE - 9081138
FTE - BS7553
FTE - BS7553B
HELLA - 355119631
HELLA - 355129691
HELLA - 8DD355119631
HELLA - 8DD355129691
HELLA PAGID - 355119631
HELLA PAGID - 355129691
HELLA PAGID - 8DD355119631
HELLA PAGID - 8DD355129691
JP Group - 1263107200
JURID - 562852JC
JURID - 562852JC1
MAGNETI MARELLI - 360406178302
METZGER - 6110780
MEYLE - 6155210007PD
MEYLE - MBD2038PD
OPEL - 13502826
OPEL - 13586854
OPEL - 569077
OPEL - 569092
OPEL - 95527034
OPTIMAL - BS9408C
OPTIMAL - BS9408HC
PAGID - 55568
PAGID - 55568NC
TEXTAR - 4019722456510
TEXTAR - 92256803
TEXTAR - 98200256801
TOPRAN - 208688
TRW - DF6260
TRW - DF6260S
TRW - DF8104
VALEO - 197756
ZIMMERMANN - 430262920
ZIMMERMANN - 430262952
ZIMMERMANN - 430262953
febi bilstein - 39210

item specifications

Component: Braking System
Width [mm]: 142,1
Fitting Position: Front Axle
Packaging length [cm]: 15,2
Number of wear indicators [per axle]: 2
WVA Number: 24412
Quantity Unit: Set
Packaging height [cm]: 8,4
Article Number of recommended accessories: 82503800
Supplementary Article/Supplementary Info: with accessories
Packaging width [cm]: 8,8
Thickness [mm]: 19,1
Weight [kg]: 2,24
Height [mm]: 66,7
Brake System: Mando
Wear Warning Contact: with acoustic wear warning

reference numbers - for comparison

ATE - 13046056122
ATE - 13047056122
ATE - 605612
ATE - LD5612
BLUE PRINT - ADW194202
BOSCH - 0986494275
BOSCH - 0986494609
BOSCH - 0986TB2052
BOSCH - 0986TB3107
BOSCH - BC1404
BOSCH - BE1404
BOSCH - BE1404H
BOSCH - BSD1404
BOSCH - BSP1404
BREMBO - P59055
BREMBO - P59055
BREMBO - P59055N
BREMBO - P59055N
BREMBO - P59055NX
BREMBO - P59055NX
BREMBO - P59055X
BREMBO - P59055X
CHAMPION - 573270CH
CHEVROLET - 13237751
CHEVROLET - 19421344
CHEVROLET - 92230269
CHEVROLET - 92257988
DELPHI - LP2081
DELPHI - LP2081N18B1
DELPHI - LP2081ND19B1
EUROREPAR - 1617287680
EUROREPAR - 1635139280
EUROREPAR - 1681218880
EUROREPAR - 1682320580
FERODO - FDB4208
FERODO - FDB4208D
FERODO - FDB4208S
FERODO - FSL4208
FERODO - HQF4005AC
FTE - 9001065
FTE - 9010842
FTE - BL2591A1
GENERAL MOTORS - 13237751
HELLA - 355013041
HELLA - 355023541
HELLA - 355032571
HELLA - 8DB355013041
HELLA - 8DB355023541
HELLA - 8DB355032571
HELLA PAGID - 355013041
HELLA PAGID - 355023541
HELLA PAGID - 355032571
HELLA PAGID - 8DB355013041
HELLA PAGID - 8DB355023541
HELLA PAGID - 8DB355032571
HERTH+BUSS JAKOPARTS - J3600919
HERTH+BUSS JAKOPARTS - J3600919
JP Group - 1263602410
JURID - 573270J
JURID - 573270JC
JURID - 573270JD
MAGNETI MARELLI - 363700201668
MAGNETI MARELLI - 363700459055
MAGNETI MARELLI - 363916060724
MAGNETI MARELLI - T1668MM
MAGNETI MARELLI - T1668MM
METZGER - 1170221
METZGER - 137512
MEYLE - 0252441219PD
MEYLE - 0252441219W
MEYLE - 8512D1404
MEYLE - MBP0591
MEYLE - MBP2063PD
OPEL - 13237751
OPEL - 1605186
OPEL - 1605232
OPEL - 1605265
OPEL - 1605317
OPEL - 1605434
OPEL - 1680880480
OPEL - 22959104
OPEL - 95514526
OPEL - 95516195
OPEL - 95520061
OPEL - 95520061
OPEL - 95530018
OPTIMAL - 12455
OPTIMAL - BP12455
PAGID - T1668
PAGID - T1668
PAGID - T1668N
PAGID - T1668N
RAICAM - 10070
RAICAM - RA10070
TEXTAR - 24412
TEXTAR - 24412 191 1 5 / 2441219115
TEXTAR - 2441201
TEXTAR - 2441204
TEXTAR - 2441205
TEXTAR - 24413
TEXTAR - 24414
TEXTAR - 4019722288906
TEXTAR - 8512D1404
TEXTAR - 8769D1557
TEXTAR - 8971D1745
TRW - GDB1783
TRW - GDB1783DT
TRW - GDB7819
TRW - GDB8329DT
TRW - TRC1404
TRW - TRH1745
VAICO - V400684
VAICO - V400684
VALEO - 208044
VALEO - 302117
VALEO - 601046
VALEO - 601177
VALEO - 610634
VALEO - 671046
ZIMMERMANN - 244121901
ZIMMERMANN - 244121902
febi bilstein - 16892

item specifications

Bolt Hole Circle Ø [mm]: 115
Surface: Coated
Outer Diameter [mm]: 315
Component: Braking System
Brake Disc Type: internally vented
Packaging length [cm]: 32,8
Centering Diameter [mm]: 70,7
Quantity Unit: Piece
Packaging height [cm]: 10,5
Hole Arrangement/Number: 05/06
Minimum thickness [mm]: 20
Packaging width [cm]: 32,8
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Brake Disc Thickness [mm]: 23
Weight [kg]: 7,9
Height [mm]: 45
Inner Diameter [mm]: 172,1
Wheel Bolt Bore Diameter [mm]: 14,2

reference numbers - for comparison

ATE - 24012301161
ATE - 423116
BLUE PRINT - ADW194324
BOSCH - 0986479C46
BOSCH - 0986479U65
BREMBO - 09C71111
DELPHI - BG4388
DELPHI - BG4388C
EUROREPAR - 1642776780
EUROREPAR - 1687778980
FERODO - DDF2188C
FTE - 9071157
FTE - 9081129
FTE - BS7554
FTE - BS7554B
HELLA - 355118281
HELLA - 8DD355118281
HELLA PAGID - 355118281
HELLA PAGID - 8DD355118281
JP Group - 1263204300
JURID - 562975JC
JURID - 562975JC1
MAGNETI MARELLI - 360406171401
METZGER - 6110808
MEYLE - 6155230014PD
MEYLE - 6155230020PD
MEYLE - MBD2053PD
OPEL - 13502866
OPEL - 13586855
OPEL - 569090
OPEL - 569093
OPTIMAL - BS9744C
PAGID - 55398
PAGID - 55398NC
PAGID - 55398PRO
RAICAM - RD01377
TEXTAR - 4019722446344
TEXTAR - 92239803
TEXTAR - 98200239801
TRW - DF6371
VALEO - 673215
ZIMMERMANN - 430263020
ZIMMERMANN - 430263052
ZIMMERMANN - 430263053
febi bilstein - 44047

item specifications

Component: Braking System
Width [mm]: 116,7
Fitting Position: Rear Axle
Packaging length [cm]: 12,5
Observe assembly information:
Number of wear indicators [per axle]: 2
WVA Number: 25096
Quantity Unit: Set
Packaging height [cm]: 8
Supplementary Article/Supplementary Info: with accessories
Packaging width [cm]: 8,1
Thickness [mm]: 16,2
Weight [kg]: 1,1
Height [mm]: 42,6
Brake System: TRW
Wear Warning Contact: with acoustic wear warning

reference numbers - for comparison

ATE - 13046073092
ATE - 13047073092
ATE - 607309
ATE - LD7309
BLUE PRINT - ADG042123
BOSCH - 0986494666
BREMBO - P59087
BREMBO - P59087
BREMBO - P59087N
BREMBO - P59087N
CHAMPION - 573335CH
FERODO - FDB4265
FERODO - FDB4265D
HELLA - 355024861
HELLA - 8DB355024861
HELLA PAGID - 355024861
HELLA PAGID - 8DB355024861
JURID - 573335J
MAGNETI MARELLI - 363700459087
MEYLE - 0252509616W
MEYLE - MBP0691
OPEL - 13417473
OPEL - 13473429
OPEL - 1605170
OPEL - 1605266
OPEL - 1605295
OPEL - 95516196
OPTIMAL - BP12935
PAGID - T2298
PAGID - T2298
PAGID - T2298N
PAGID - T2298N
TEXTAR - 25096
TEXTAR - 25096 162 2 5 / 2509616225
TEXTAR - 2509606
TEXTAR - 25097
TEXTAR - 25098
TEXTAR - 4019722482106
TEXTAR - 8668D1468
TRW - GDB1844
TRW - GDB95024
VALEO - 301055
ZIMMERMANN - 250961651
ZIMMERMANN - 250961653
febi bilstein - 16894
