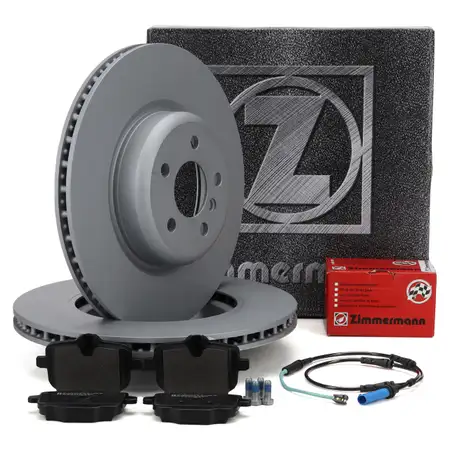

ZIMMERMANN Brake Discs + Brake Pads + Sensor for BMW 5 Series G30, 7 Series G11, G12 (Rear)

ZIMMERMANN Brake Discs + Brake Pads + Sensor for BMW 5 Series G30, 7 Series G11, G12 (Rear)

ZIMMERMANN CARIPAR

Item No.: A08652W306
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2946.20, 24703.175.1, GBK 476

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Rear Axle
  • Outer Diameter [mm]: 345
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 64
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 22,4
  • Machining: High-carbon
  • Weight [kg]: 9,1
  • Centering Diameter [mm]: 67
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
  • Shape: Form differs from original
  • Multi-piece: one-piece
reference numbers - for comparison
  • ATE - 24.0124-0262.2 / 24012402622
  • BMW - 34 20 8 853 554 / 34208853554
  • BMW - 3420 6 880 079 / 34206880079
  • BMW - 3420 7 915 314 / 34207915314
  • BMW - 3420 8 831 484 / 34208831484
  • BMW - 3421 6 860 925 / 34216860925
  • BOSCH - 0 986 479 F61 / 0986479F61
  • BREMBO - 09.D096.13 / 09D09613
  • ECORA - 4250238768579
  • FERODO - DDF2627VC-1 / DDF2627VC1
  • HERTH+BUSS JAKOPARTS - J3312088
  • HERTH+BUSS JAKOPARTS - J3312088
  • JURID - 563212JVC-1 / 563212JVC1
  • TEXTAR - 92288625
  • TOYOTA - 42431-WAA01 / 42431WAA01
  • TRW - DF6892S
  • ZIMMERMANN - 150.2946.20 / 150294620
  • ZIMMERMANN - 150.2946.32 / 150294632
  • ZIMMERMANN - 150.2946.52 / 150294652
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24703
  • Fitting Position: Rear Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with bolts/screws
  • Thickness [mm]: 18
  • Width 1 [mm]: 116
  • Width 2 [mm]: 116
  • Height 1 [mm]: 72
  • Height 2 [mm]: 66
  • Brake System: GIRLING
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-2716.2 / 13046027162
  • ATE - 13.0470-2716.2 / 13047027162
  • BMW - 3421 2 449 304 / 34212449304
  • BMW - 3421 2 449 305 / 34212449305
  • BMW - 3421 6 775 346 / 34216775346
  • BMW - 3421 6 798 196 / 34216798196
  • BMW - 3421 6 857 805 / 34216857805
  • BMW - 3421 6 867 175 / 34216867175
  • BMW - 3421 8 847 061 / 34218847061
  • BOSCH - 0 986 494 759 / 0986494759
  • BREMBO - P 06 061 / P06061
  • BREMBO - P 06 061 / P06061
  • DELPHI - LP2246
  • ECORA - 4250238753896
  • FERODO - FDB5056
  • HELLA PAGID - 8DB 355 024-921 / 8DB355024921
  • JURID - 573353J
  • JURID - 573353JC
  • RAICAM - RA.1045.0 / RA10450
  • TEXTAR - 2470401
  • TRW - GDB1869
  • VALEO - 601145
  • ZIMMERMANN - 24703
  • ZIMMERMANN - 24703.175.1 / 247031751
  • ZIMMERMANN - 24704
  • ZIMMERMANN - D1469-8669 / D14698669
  • ZIMMERMANN - D1469-8669 / D14698669
  • ZIMMERMANN - D1850-9077 / D18509077
  • ZIMMERMANN - D1850-9077 / D18509077
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Rear Axle
reference numbers - for comparison
  • ATE - 24819009882
  • ATE - 620988
  • BMW - 34 35 6 861 808 / 34356861808
  • BMW - 34 35 6 890 791 / 34356890791
  • BMW - 6861808
  • BMW - 6890791
  • BOSCH - 1987473611
  • BREMBO - A00522
  • BREMBO - A00522
  • CHAMPION - FWI448
  • Caripar - GBK 476 / GBK476
  • DELPHI - LZ0309
  • FERODO - FWI448
  • HELLA - 355252811
  • HELLA - 8DK355252811
  • HELLA PAGID - 355252811
  • HELLA PAGID - 8DK355252811
  • JURID - FWI448
  • METZGER - 1190310
  • MEYLE - 3145270044
  • MEYLE - MWS0157
  • PAGID - P8725
  • PAGID - P8725
  • PAGID - P8725N
  • PAGID - P8725N
  • QUICK BRAKE - WS0417A
  • TEXTAR - 98058600
  • TRW - GIC521CN
  • febi bilstein - 104576
