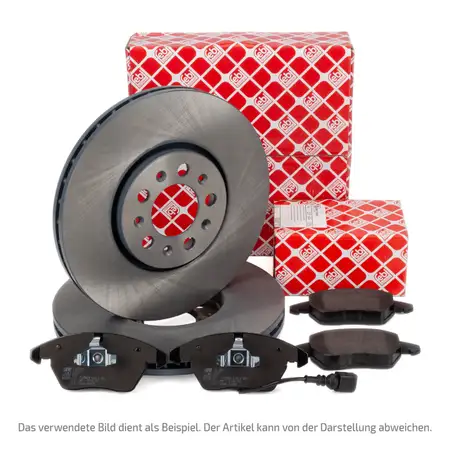

febi Brake Discs + Pads + Sensor for VW Transporter T4 PR-1LU (model year 7D-Y-000 and later) – front

febi Brake Discs + Pads + Sensor for VW Transporter T4 PR-1LU (model year 7D-Y-000 and later) – front

Item No.: A08652W564
Manufacturer: febi bilstein
part number: 14040, 16464

item specifications

Bolt Hole Circle Ø [mm]: 112
Surface: Coated
Outer Diameter [mm]: 280
Component: Braking System
Brake Disc Type: internally vented
Number of mounting bores: 1
Fitting Position: Front Axle
Centering Diameter [mm]: 68,2
Quantity Unit: Piece
Rim Hole Number: 5
Minimum thickness [mm]: 20
Thickness [mm]: 55,1
Brake Disc Thickness [mm]: 24
Observe service information:

reference numbers - for comparison

AIC - 53662
ATE - 24.0124-0128.1 / 24012401281
BLUE PRINT - ADV184361
BOSCH - 0 986 478 846 / 0986478846
BOSCH - 0 986 479 B50 / 0986479B50
BOSCH - F 026 A00 911 / F026A00911
BOSCH - F 026 A00 911 / F026A00911
BREMBO - 09.7131.11 / 09713111
BREMBO - 09.7131.14 / 09713114
CHAMPION - 562080CH
DELPHI - BG3417
DELPHI - BG3417C
EUROREPAR - 1618874080
EUROREPAR - 1667858680
EUROREPAR - 1686341480
EUROREPAR - 1690935380
FERODO - DDF1010
FERODO - DDF1010-1 / DDF10101
FERODO - DDF1010C
FERODO - DDF1010C-1 / DDF1010C1
FTE - 9072097
FTE - 9082137
FTE - BS4732
FTE - BS4732B
HELLA - 8DD 355 105-581 / 8DD355105581
HELLA - 8DD 355 105-591 / 8DD355105591
HELLA - 8DD 355 105-592 / 8DD355105592
HELLA - 8DD 355 124-771 / 8DD355124771
HELLA - 8DD 355 127-331 / 8DD355127331
HELLA PAGID - 8DD 355 105-591 / 8DD355105591
HELLA PAGID - 8DD 355 105-592 / 8DD355105592
HELLA PAGID - 8DD 355 124-771 / 8DD355124771
HELLA PAGID - 8DD 355 127-331 / 8DD355127331
JP Group - 1163111500
JURID - 562080J
JURID - 562080JC
JURID - 562080JC-1 / 562080JC1
LEMFÖRDER - 22217 01 / 2221701
LEMFÖRDER - 22217 02 / 2221702
MAGNETI MARELLI - 360406050200
MAGNETI MARELLI - 360704021900
MAGNETI MARELLI - 361302040324
METZGER - 6110093
MEYLE - 115 521 0035 / 1155210035
MEYLE - 115 521 0035/PD / 1155210035PD
OPTIMAL - BS-5510 / BS5510
OPTIMAL - BS-5510C / BS5510C
OPTIMAL - BS-5510HC / BS5510HC
PAGID - 53958
PAGID - 53958NHC
RAICAM - RD00895
SKF - VKBD 80358 V2 / VKBD80358V2
TEXTAR - 92083800
TEXTAR - 92083803
TEXTAR - 92083805
TOPRAN - 107 691 / 107691
TRUCKTEC AUTOMOTIVE - 07.35.052 / 0735052
TRW - DF2809
TRW - DF2809S
VAICO - V10-80041 / V1080041
VAICO - V10-80041 / V1080041
VALEO - 186682
VALEO - 496125
VALEO - 672612
VOLKSWAGEN - 701 615 301 F / 701615301F
VOLKSWAGEN - 7D0 615 301 A / 7D0615301A
VOLKSWAGEN - 7D0 615 301 C / 7D0615301C
ZIMMERMANN - 600.3212.20 / 600321220
ZIMMERMANN - 600.3212.52 / 600321252
febi bilstein - 14040
febi bilstein - 4027816140405

item specifications

Component: Braking System
Width [mm]: 68
Length [mm]: 156,4
Fitting Position: Front Axle
Test Mark: ECE R90 Approved
WVA Number: 21885
Quantity Unit: Set
Supplementary Article/Supplementary Info 2: with piston clip
Observe service information:
Thickness 1 [mm]: 19,8
Thickness 1 [mm]: 19,3
Wear Warning Contact: incl. wear warning contact

reference numbers - for comparison

ATE - 13.0460-7124.2 / 13046071242
BLUE PRINT - ADV184258
BOSCH - 0 986 424 537 / 0986424537
BOSCH - 0 986 TB2 304 / 0986TB2304
BREMBO - P 85 049 / P85049
BREMBO - P 85 049 / P85049
BREMBO - P85049N
BREMBO - P85049N
CHAMPION - 573106CH
DELPHI - LP1707
EUROREPAR - 1617265980
FERODO - FSL1518
FERODO - FVR1518
FTE - 9001097
FTE - 9010206
FTE - BL1476A2
HELLA - 8DB 355 008-931 / 8DB355008931
HELLA - 8DB 355 015-371 / 8DB355015371
HELLA - 8DB 355 030-791 / 8DB355030791
HELLA PAGID - 8DB 355 008-931 / 8DB355008931
JP Group - 1163603910
JURID - 573106J
LEMFÖRDER - 2625101
MAGNETI MARELLI - 323700025500
MAGNETI MARELLI - 363700485049
MAGNETI MARELLI - 363916060419
MAGNETI MARELLI - 363916061155
METZGER - 1170196
MEYLE - 025 218 8519/PD / 0252188519PD
MEYLE - 025 218 8519/W / 0252188519W
OPTIMAL - 12015
OPTIMAL - BP-12015 / BP12015
PAGID - T1196
PAGID - T1196
PAGID - T1196N
PAGID - T1196N
RAICAM - RA.0669.1 / RA06691
SKF - VKBP 80573 E / VKBP80573E
TEXTAR - 2188501
TOPRAN - 109 466 / 109466
TRW - GDB1391
VAICO - V10-6750 / V106750
VAICO - V10-6750 / V106750
VAICO - V10-8141 / V108141
VAICO - V10-8141 / V108141
VAICO - V10-8141-1 / V1081411
VAICO - V10-8141-1 / V1081411
VALEO - 302047
VALEO - 598676
VALEO - 670676
VOLKSWAGEN - 7D0 698 151 D / 7D0698151D
VOLKSWAGEN - 7D0 698 151 F / 7D0698151F
ZIMMERMANN - 21885.195.1 / 218851951
febi bilstein - 16464
febi bilstein - 21885
febi bilstein - 4027816164647
febi bilstein - D705-7728 / D7057728
febi bilstein - D705-7728 / D7057728
