  5. SHW Brake Discs + ATE Brake Pads + Sensor for BMW 5 Series E60, E61, M5; 6 Series E63, E64, M6 (Front)
SHW Brake Discs + ATE Brake Pads + Sensor for BMW 5 Series E60, E61, M5; 6 Series E63, E64, M6 (Front)

SHW Brake Discs + ATE Brake Pads + Sensor for BMW 5 Series E60, E61, M5; 6 Series E63, E64, M6 (Front)

SHW Performance ATE CARIPAR

Item No.: A08652W947
Manufacturer: SHW Performance, ATE, CARIPAR
part number: BFL48051, BFR48061, 13.0460-7210.2, GBK 400

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Surface: Coated
  • Outer Diameter [mm]: 374
  • Component: Braking System
  • Brake Disc Type: Perforated
  • Brake Disc Type: internally vented
  • Brake Disc Type: two-piece brake disc
  • Fitting Position: Front Axle Left
  • Test Mark: ECE R90 APPROVED
  • Quantity Unit: Piece
  • Minimum thickness [mm]: 34,4
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 36
  • Weight [kg]: 13,5
reference numbers - for comparison
  • BMW - 2 282 805 / 2282805
  • BMW - 2 282 805 / 2282805
  • BMW - 34 11 2 282 805 / 34112282805
  • BMW - 34112282805
  • SHW Performance - 0048544884472
  • SHW Performance - BFL48051
item specifications
  • Surface: Coated
  • Outer Diameter [mm]: 374
  • Component: Braking System
  • Brake Disc Type: Perforated
  • Brake Disc Type: internally vented
  • Brake Disc Type: two-piece brake disc
  • Fitting Position: Front Axle Right
  • Test Mark: ECE R90 APPROVED
  • Quantity Unit: Piece
  • Minimum thickness [mm]: 34,4
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 36
  • Weight [kg]: 13,5
reference numbers - for comparison
  • BMW - 2 282 806 / 2282806
  • BMW - 2 282 806 / 2282806
  • BMW - 34 11 2 282 806 / 34112282806
  • BMW - 34112282806
  • SHW Performance - 0048544884229
  • SHW Performance - BFR48061
item specifications
  • Component: Braking System
  • Width [mm]: 193,0
  • Fitting Position: Front Axle
  • Test Mark: E1 90R-02A0612/0537
  • WVA Number: 23791
  • Quantity Unit: Set
  • Observe dimensions:
  • Article Number of recommended accessories: 24.8190-0230.2
  • Article Number of recommended accessories: 24.8190-0273.2
  • Article Number of recommended accessories: 24.8190-0276.2
  • MAPP code available:
  • Thickness [mm]: 20,8
  • Height [mm]: 79,0
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
  • Wear Warning Contact: excl. wear warning contact
reference numbers - for comparison
  • ATE - 13.0460-7210.2 / 13046072102
  • ATE - 13.0470-7210.2 / 13047072102
  • ATE - 23791
  • ATE - 23792
  • ATE - 4006633219266
  • ATE - 607210
  • BMW - 2 339 272 / 2339272
  • BMW - 34 11 2 339 272 / 34112339272
  • BMW - 34 11 6 763 652 / 34116763652
  • BMW - 34 11 6 764 312 / 34116764312
  • BMW - 34 11 6 768 287 / 34116768287
  • BMW - 34 11 6 770 575 / 34116770575
  • BMW - 34 11 6 774 258 / 34116774258
  • BMW - 6 763 652 / 6763652
  • BMW - 6 764 312 / 6764312
  • BMW - 6 768 287 / 6768287
  • BMW - 6 770 575 / 6770575
  • BMW - 6 774 258 / 6774258
  • BOSCH - 0 986 494 349 / 0986494349
  • BREMBO - P 06 047 / P06047
  • BREMBO - P 06 047 / P06047
  • BREMBO - P 06 066 / P06066
  • BREMBO - P 06 066 / P06066
  • BREMBO - P06066N
  • BREMBO - P06066N
  • DELPHI - LP1798
  • FERODO - FDB1883
  • FTE - BL2041A2
  • HELLA - 8DB 355 006-551 / 8DB355006551
  • HELLA PAGID - 8DB 355 006-551 / 8DB355006551
  • JURID - 573150J-AS / 573150JAS
  • PAGID - T1550
  • PAGID - T1550
  • TEXTAR - 23791 208 0 5 / 2379120805
  • TEXTAR - 2379101
  • TRW - GDB1558
  • VALEO - 601565
  • febi bilstein - 16519
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle Left
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24.8190-0273.2 / 24819002732
  • ATE - 24819002372
  • ATE - 24819002732
  • ATE - 620237
  • ATE - 620273
  • BMW - 34 35 6 789 492 / 34356789492
  • BMW - 34356759917
  • BMW - 34356764298
  • BMW - 34356768595
  • BMW - 34356776421
  • BMW - 34356789492
  • BMW - 6759917
  • BMW - 6764298
  • BMW - 6768595
  • BMW - 6776421
  • BMW - 6789492
  • BOSCH - 0986T10014
  • BOSCH - 1987473002
  • BREMBO - A00228
  • BREMBO - A00228
  • Caripar - GBK 400 / GBK400
  • FERODO - FWI263
  • FERODO - FWI263
  • FTE - BZ1091WSET
  • HELLA - 355250641
  • HELLA - 8DK355250641
  • HELLA PAGID - 355250641
  • HELLA PAGID - 8DK 355 250-641 / 8DK355250641
  • HELLA PAGID - 8DK355250641
  • HERTH+BUSS JAKOPARTS - 70608133
  • JURID - 581394
  • JURID - 581394
  • JURID - FWI263
  • MAGNETI MARELLI - 363700168062
  • MAGNETI MARELLI - 363700400228
  • MAGNETI MARELLI - P8062MM
  • MAGNETI MARELLI - P8062MM
  • METZGER - 1190060
  • MEYLE - 3003430000
  • MEYLE - MWS0034
  • OPTIMAL - WKT50529K
  • PAGID - P8062
  • PAGID - P8062
  • PAGID - P8062N
  • PAGID - P8062N
  • QUICK BRAKE - WS0218
  • QUICK BRAKE - WS0218A
  • TEXTAR - 98030400
  • TEXTAR - 98030410
  • TRW - GIC187
  • TRW - GIC187CN
  • febi bilstein - 223264
  • febi bilstein - 23021
Name:
SHW Brake Systems GmbH
E-Mail:
info@shw.de
Phone:
+49 7461 17900
Street, House no:
Ludwigstal 25
ZIP / City:
78532 Tuttlingen
Country:
Germany
manufacturer model type power capacity constr. date kba limitations
Customers also bought
3-in-1 First Aid Kit (RED) (Best Before 04/2029) + High-Visibility Vest (YELLOW) + Warning Triangle
3-in-1 First Aid Kit (RED) (Best Before 04/2029) + High-Visibility Vest (YELLOW) + Warn...

11.00 EUR



incl. VAT, excl. shipping costs

add to cart
20L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04
20L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

189.00 EUR

9.45 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart
10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04
10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

99.00 EUR

9.90 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart

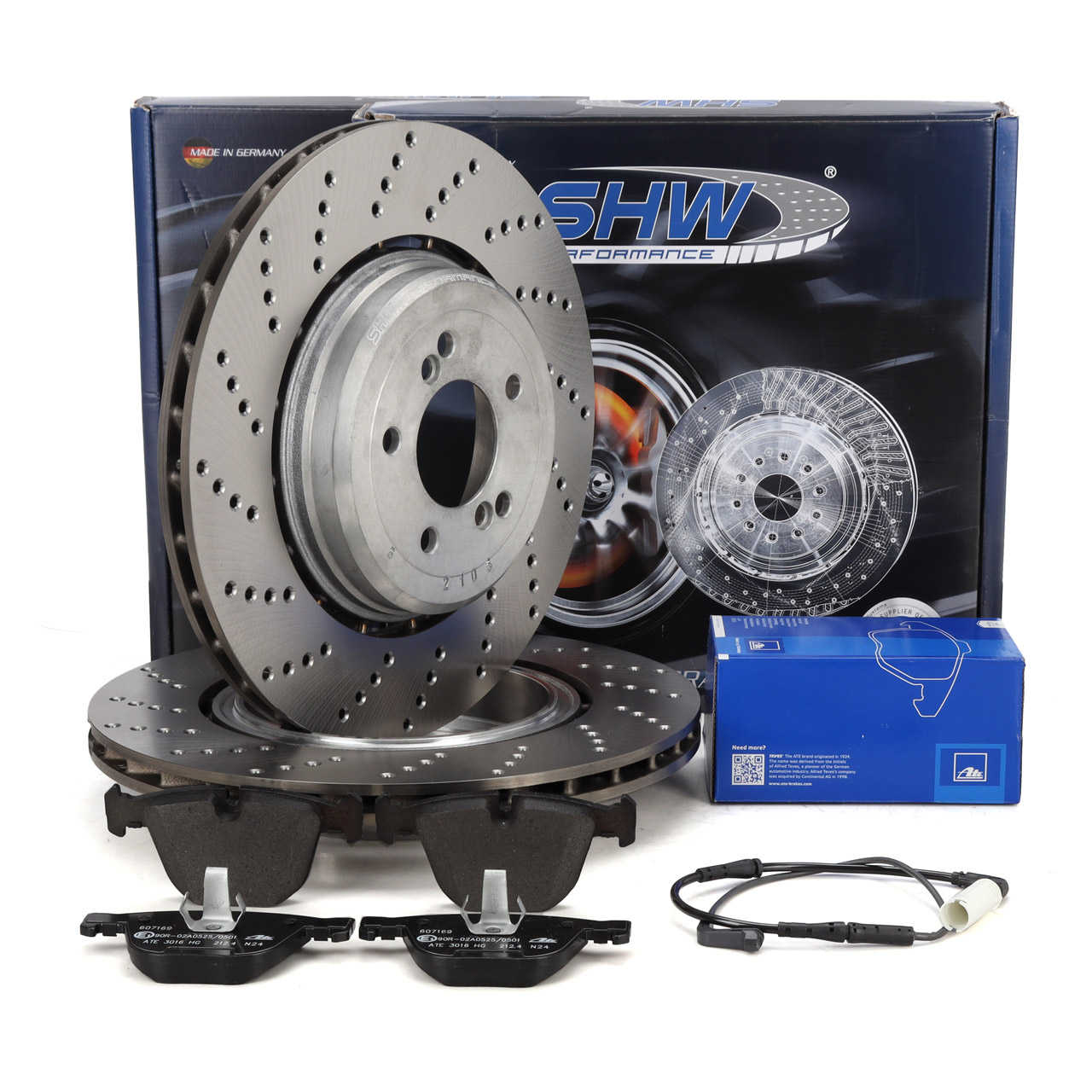

SHW Brake Discs + ATE Original Brake Pads + Sensor for BMW 5 Series E60 M5, 6 Series E63 E64 M6 (Rear)
