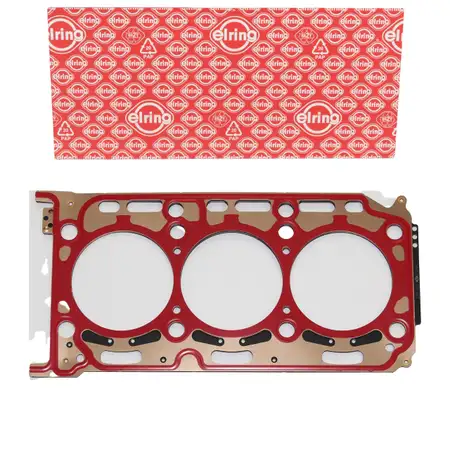

ELRING 228.001 Cylinder head gasket for AUDI A4 B9, A5 F5, A6 C7, C8, and VW Touareg 3.0 TDI (left-hand side)

ELRING

Item No.: UNI123W902
Manufacturer: ELRING
part number: 228.001
EAN-Code: 4041248668030

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Email-Icon
E-Mail
Trusted Badge Rating
Item properties
  • Quantity Unit: Piece
  • Baugruppe: Cylinder Head
  • Number of layers: 5
  • Gasket Design: Multilayer Steel (MLS)
  • Thickness [mm]: 1,7
  • Diameter [mm]: 84,3
  • Installed thickness [mm]: 1,7
  • Fitting Position: Left
  • Notches/Holes Number: 3
  • Piston Protrusion from [mm]: 0,96
  • Piston Protrusion to [mm]: 1,07
  • Verwendung: Engine Block
  • AJUSA - 10219220
  • AUDI - 059 103 149 AL / 059103149AL
  • CORTECO - 83403316
  • CUPRA - 059 103 149 AL / 059103149AL
  • ECORA - 4041248668030
  • ELRING - 228.001 / 228001
  • SEAT - 059 103 149 AL / 059103149AL
  • SKODA - 059 103 149 AL / 059103149AL
  • VICTOR REINZ - 61-10095-20 / 611009520
  • VOLKSWAGEN - 059 103 149 AL / 059103149AL
Name:
ElringKlinger AG
Website:
Street, House no:
Max-Eyth-Straße 2
ZIP / City:
72581 Dettingen/Erms
Country:
Germany
