Is this part compatible with my vehicle?

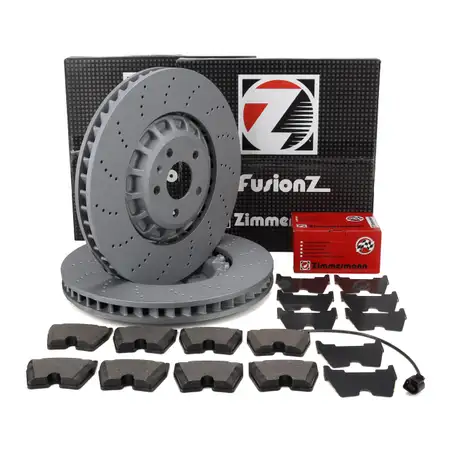

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for AUDI RS3 8Y PR-1LH/1LF (Front)

Item No.: A16652W382

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for AUDI RS3 8Y PR-1LH/1LF (Front)

Item No.: A16652W382
ZIMMERMANN
Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 375
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: Perforated
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 65
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 34
  • Processing: Alloyed/High-carbon
  • Brake Disc Thickness [mm]: 36
  • Weight [kg]: 13
  • Height [mm]: 50
reference numbers - for comparison
  • CUPRA - 4M0 615 301 BJ / 4M0615301BJ
  • ECORA - 4250238789215
  • SHW Performance - AFX44325
  • VAG - 4M0 615 301 BJ / 4M0615301BJ
  • ZIMMERMANN - 4250238789215
  • ZIMMERMANN - 600.3272.70 / 600327270
Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width [mm]: 96
  • Fitting Position: Front Axle
  • Number of wear indicators [per axle]: 1
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 22491
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 16
  • Height [mm]: 74
  • Brake System: BREMBO
  • Wear Warning Contact: incl. wear warning contact
reference numbers - for comparison
  • ATE - 13.0460-4720.2 / 13046047202
  • AUDI - 8U0 698 151 F / 8U0698151F
  • AUDI - 8U0 698 151 G / 8U0698151G
  • AUDI - 8U0 698 151 H / 8U0698151H
  • AUDI - 8U0 698 151 J / 8U0698151J
  • AUDI - 8V0 698 151 E / 8V0698151E
  • AUDI - 8V0 698 151 F / 8V0698151F
  • AUDI - 8V0 698 151 H / 8V0698151H
  • AUDI - 8V0 698 151 K / 8V0698151K
  • AUDI - 8V0 698 151 L / 8V0698151L
  • AUDI - 8V0 698 151 M / 8V0698151M
  • AUDI - 8V0 698 151 M / 8V0698151M
  • AUDI - 8V0 698 151 N / 8V0698151N
  • AUDI - 8V0 698 151 P / 8V0698151P
  • BOSCH - 0 986 424 373 / 0986424373
  • BOSCH - 0 986 424 613 / 0986424613
  • BREMBO - P 85 152 / P85152
  • BREMBO - P 85 152 / P85152
  • BREMBO - P 85 152X / P85152X
  • BREMBO - P 85 152X / P85152X
  • ECORA - 4250238779735
  • FERODO - FDB5023
  • HELLA - 8DB 355 025-171 / 8DB355025171
  • JURID - 573809J
  • TEXTAR - 2249101
  • VAG - 8V0 698 151 M / 8V0698151M
  • ZIMMERMANN - 22491
  • ZIMMERMANN - 22491.165.2 / 224911652
  • ZIMMERMANN - 23751
  • ZIMMERMANN - 4250238779735
