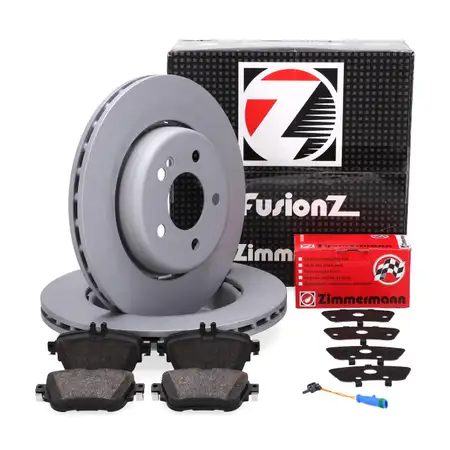

Zimmermann FORMULA S Brake Discs + Pads + Sensor for MERCEDES W213 S2132 C257 (Rear)

Item No.: A11652W705

Zimmermann FORMULA S Brake Discs + Pads + Sensor for MERCEDES W213 S2132 C257 (Rear)

Item No.: A11652W705
ZIMMERMANN CARIPAR
Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 300
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: Steel Brake Disc Hub
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 69
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 19,4
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 5,8
  • Height [mm]: 49
reference numbers - for comparison
  • ATE - 24.0122-0302.1 / 24012203021
  • BOSCH - 0 986 479 H50 / 0986479H50
  • BREMBO - 09.D533.13 / 09D53313
  • ECORA - 4250238786979
  • FERODO - DDF2832VC-1 / DDF2832VC1
  • JURID - 563458JVC-1 / 563458JVC1
  • MERCEDES-BENZ - 000 423 18 12 / 0004231812
  • MERCEDES-BENZ - 000 423 1812 / 0004231812
  • MERCEDES-BENZ - A 000 423 18 12 / A0004231812
  • MERCEDES-BENZ - A 000 423 18 12 / A0004231812
  • MERCEDES-BENZ - A 000 423 1812 / A0004231812
  • MERCEDES-BENZ - A 000 423 1812 / A0004231812
  • TEXTAR - 92358025
  • TRW - DF6824
  • ZIMMERMANN - 400.5523.30 / 400552330
  • ZIMMERMANN - 400.5523.35 / 400552335
  • ZIMMERMANN - 4250238786979
Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width [mm]: 114
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 22437
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with retaining spring
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 16
  • Height 2 [mm]: 64
  • Brake System: TRW
  • Wear Warning Contact: prepared for wear warning indicator
  • Height 1 [mm]: 55
reference numbers - for comparison
  • ATE - 13.0460-2616.2 / 13046026162
  • ATE - 13.0470-2616.2 / 13047026162
  • ATE - 13.0470-9004.2 / 13047090042
  • BOSCH - 0 986 424 845 / 0986424845
  • BREMBO - P 50 136 / P50136
  • BREMBO - P 50 136 / P50136
  • BREMBO - P50136NX
  • BREMBO - P50136NX
  • ECORA - 4250238779995
  • FERODO - FDB5032
  • HELLA - 8DB 355 025-781 / 8DB355025781
  • HERTH+BUSS JAKOPARTS - J3610847
  • HERTH+BUSS JAKOPARTS - J3610847
  • JURID - 573843J
  • MERCEDES-BENZ - 000 420 6000 / 0004206000
  • MERCEDES-BENZ - 000 420 6100 / 0004206100
  • MERCEDES-BENZ - 000 420 92 03 / 0004209203
  • MERCEDES-BENZ - 000 420 92 03 64 / 000420920364
  • MERCEDES-BENZ - 000 420 9203 / 0004209203
  • MERCEDES-BENZ - 000 420 9303 / 0004209303
  • MERCEDES-BENZ - 000 420 97 00 / 0004209700
  • MERCEDES-BENZ - 000 420 9700 / 0004209700
  • MERCEDES-BENZ - 000 420 9800 / 0004209800
  • MERCEDES-BENZ - A 000 420 6000 / A0004206000
  • MERCEDES-BENZ - A 000 420 6000 / A0004206000
  • MERCEDES-BENZ - A 000 420 6100 / A0004206100
  • MERCEDES-BENZ - A 000 420 6100 / A0004206100
  • MERCEDES-BENZ - A 000 420 92 03 / A0004209203
  • MERCEDES-BENZ - A 000 420 92 03 / A0004209203
  • MERCEDES-BENZ - A 000 420 92 03 64 / A000420920364
  • MERCEDES-BENZ - A 000 420 92 03 64 / A000420920364
  • MERCEDES-BENZ - A 000 420 9203 / A0004209203
  • MERCEDES-BENZ - A 000 420 9203 / A0004209203
  • MERCEDES-BENZ - A 000 420 9303 / A0004209303
  • MERCEDES-BENZ - A 000 420 9303 / A0004209303
  • MERCEDES-BENZ - A 000 420 97 00 / A0004209700
  • MERCEDES-BENZ - A 000 420 97 00 / A0004209700
  • MERCEDES-BENZ - A 000 420 9700 / A0004209700
  • MERCEDES-BENZ - A 000 420 9700 / A0004209700
  • MERCEDES-BENZ - A 000 420 9800 / A0004209800
  • MERCEDES-BENZ - A 000 420 9800 / A0004209800
  • RAICAM - RA.1203.0 / RA12030
  • TEXTAR - 2243701
  • TRW - GDB2155
  • ZIMMERMANN - 22437
  • ZIMMERMANN - 22437.165.1 / 224371651
  • ZIMMERMANN - 22437.965.1 / 224379651
  • ZIMMERMANN - 22438
  • ZIMMERMANN - 4250238779995
Warning Contact, brake pad wear
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle
  • Fitting Position: Rear Axle
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Manufacturers Warranty: 3
reference numbers - for comparison
  • ATE - 24.8190-0067.2 / 24819000672
  • ATE - 24819000672
  • ATE - 620067
  • BOSCH - 0986T10000
  • BOSCH - 1987474553
  • BREMBO - A00353
  • BREMBO - A00353
  • CHAMPION - FWI475
  • Caripar - GBK 625 / GBK625
  • DELPHI - LZ0363
  • FERODO - FWI261
  • FERODO - FWI475
  • FTE - BZ1192W
  • HELLA - 355252141
  • HELLA - 8DK355252141
  • HELLA PAGID - 355252141
  • HELLA PAGID - 8DK 355 252-141 / 8DK355252141
  • HELLA PAGID - 8DK355252141
  • JURID - 581379
  • JURID - 581511
  • MERCEDES-BENZ - 169 540 16 17 / 1695401617
  • MERCEDES-BENZ - 1695401617
  • MERCEDES-BENZ - A 169 540 16 17 / A1695401617
  • MERCEDES-BENZ - A 169 540 16 17 / A1695401617
  • MERCEDES-BENZ - A1695401617
  • MERCEDES-BENZ - A1695401617
  • METZGER - 1190294
  • OPTIMAL - WKT60093K
  • PAGID - P8641
  • PAGID - P8641
  • PAGID - P8641N
  • PAGID - P8641N
  • TEXTAR - 98048700
  • TEXTAR - 98048710
  • TEXTAR - 98048780
  • TRW - GIC242
  • TRW - GIC242CN
  • febi bilstein - 39246
