  5. ZIMMERMANN Brake Discs + Pads + Sensor for MERCEDES W123 S123 C123 (front), starting October 1979

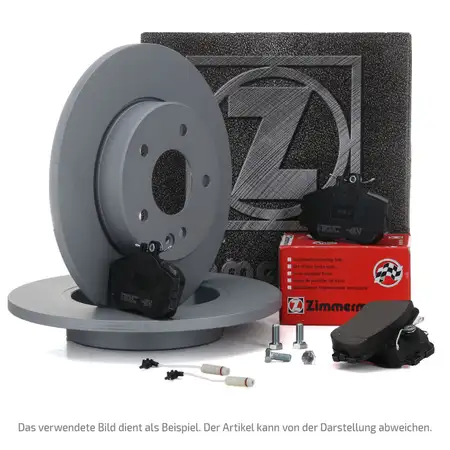

ZIMMERMANN Brake Discs + Pads + Sensor for MERCEDES W123 S123 C123 (front), starting October 1979

ZIMMERMANN Brake Discs + Pads + Sensor for MERCEDES W123 S123 C123 (front), starting October 1979

ZIMMERMANN CARIPAR

Item No.: A16652W326
Manufacturer: ZIMMERMANN, CARIPAR
part number: 400.1053.20, 20341.175.1, GBK 847

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 278
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: solid
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 80
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 11
  • Brake Disc Thickness [mm]: 13
  • Weight [kg]: 5,1
  • Height [mm]: 64
reference numbers - for comparison
  • ATE - 24.0113-0137.1 / 24011301371
  • BOSCH - 0 986 478 058 / 0986478058
  • BREMBO - 08.3189.20 / 08318920
  • DELPHI - BG2259
  • FERODO - DDF071
  • HELLA - 8DD 355 100-071 / 8DD355100071
  • JURID - 561102J
  • MERCEDES-BENZ - 114 421 0012 / 1144210012
  • MERCEDES-BENZ - 115 421 1412 / 1154211412
  • MERCEDES-BENZ - 123 420 0072 / 1234200072
  • MERCEDES-BENZ - 123 421 00 12 / 1234210012
  • MERCEDES-BENZ - 123 421 0012 / 1234210012
  • MERCEDES-BENZ - 123 421 0012 64 / 123421001264
  • MERCEDES-BENZ - A 114 421 0012 / A1144210012
  • MERCEDES-BENZ - A 114 421 0012 / A1144210012
  • MERCEDES-BENZ - A 115 421 1412 / A1154211412
  • MERCEDES-BENZ - A 115 421 1412 / A1154211412
  • MERCEDES-BENZ - A 123 420 0072 / A1234200072
  • MERCEDES-BENZ - A 123 420 0072 / A1234200072
  • MERCEDES-BENZ - A 123 421 0012 / A1234210012
  • MERCEDES-BENZ - A 123 421 0012 / A1234210012
  • MERCEDES-BENZ - A 123 421 0012 64 / A123421001264
  • MERCEDES-BENZ - A 123 421 0012 64 / A123421001264
  • TEXTAR - 92009500
  • TRW - DF1573
  • ZIMMERMANN - 400.1053.00 / 400105300
  • ZIMMERMANN - 400.1053.20 / 400105320
  • ZIMMERMANN - 400.1053.50 / 400105350
  • ZIMMERMANN - 400.1053.52 / 400105352
  • ZIMMERMANN - 4250238761914
  • febi bilstein - 08505
item specifications
  • Component: Braking System
  • Width [mm]: 90
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 20341
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 18
  • Height [mm]: 74
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-9029.2 / 13046090292
  • ATE - 609029
  • BOSCH - 0 986 463 412 / 0986463412
  • BREMBO - P 50 004 / P50004
  • BREMBO - P 50 004 / P50004
  • FERODO - FDB243
  • FERODO - FSL243
  • HELLA PAGID - 8DB 355 017-431 / 8DB355017431
  • MERCEDES-BENZ - 000 420 5920 / 0004205920
  • MERCEDES-BENZ - 000 420 6020 / 0004206020
  • MERCEDES-BENZ - 000 420 9420 / 0004209420
  • MERCEDES-BENZ - 000 420 9520 / 0004209520
  • MERCEDES-BENZ - 001 420 0520 / 0014200520
  • MERCEDES-BENZ - 001 420 7520 / 0014207520
  • MERCEDES-BENZ - 001 420 9920 / 0014209920
  • MERCEDES-BENZ - 002 420 43 20 / 0024204320
  • MERCEDES-BENZ - 002 420 4320 / 0024204320
  • MERCEDES-BENZ - 002 586 4542 / 0025864542
  • MERCEDES-BENZ - 002 586 4642 / 0025864642
  • MERCEDES-BENZ - 005 420 45 20 / 0054204520
  • MERCEDES-BENZ - A 000 420 5920 / A0004205920
  • MERCEDES-BENZ - A 000 420 5920 / A0004205920
  • MERCEDES-BENZ - A 000 420 6020 / A0004206020
  • MERCEDES-BENZ - A 000 420 6020 / A0004206020
  • MERCEDES-BENZ - A 000 420 9420 / A0004209420
  • MERCEDES-BENZ - A 000 420 9420 / A0004209420
  • MERCEDES-BENZ - A 000 420 9520 / A0004209520
  • MERCEDES-BENZ - A 000 420 9520 / A0004209520
  • MERCEDES-BENZ - A 001 420 0520 / A0014200520
  • MERCEDES-BENZ - A 001 420 0520 / A0014200520
  • MERCEDES-BENZ - A 001 420 7520 / A0014207520
  • MERCEDES-BENZ - A 001 420 7520 / A0014207520
  • MERCEDES-BENZ - A 001 420 9920 / A0014209920
  • MERCEDES-BENZ - A 001 420 9920 / A0014209920
  • MERCEDES-BENZ - A 002 420 4320 / A0024204320
  • MERCEDES-BENZ - A 002 420 4320 / A0024204320
  • MERCEDES-BENZ - A 002 586 4542 / A0025864542
  • MERCEDES-BENZ - A 002 586 4542 / A0025864542
  • MERCEDES-BENZ - A 002 586 4642 / A0025864642
  • MERCEDES-BENZ - A 002 586 4642 / A0025864642
  • MERCEDES-BENZ - A005 420 45 20 / A0054204520
  • MERCEDES-BENZ - A005 420 45 20 / A0054204520
  • TEXTAR - 2034110
  • TRW - GDB264
  • ZIMMERMANN - 20341
  • ZIMMERMANN - 20341.175.1 / 203411751
  • ZIMMERMANN - 4250238729037
item specifications
  • Component: Braking System
  • Fitting Position: Rear Axle
  • Fitting Position: Front Axle
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • BOSCH - 1 987 474 901 / 1987474901
  • BOSCH - 1 987 474 911 / 1987474911
  • BOSCH - 1 987 474 927 / 1987474927
  • BREMBO - A 00 256 / A00256
  • BREMBO - A 00 256 / A00256
  • BREMBO - A 00 276 / A00276
  • BREMBO - A 00 276 / A00276
  • BREMBO - A 00 349 / A00349
  • BREMBO - A 00 349 / A00349
  • BREMBO - A 00 350 / A00350
  • BREMBO - A 00 350 / A00350
  • Caripar - 620401
  • Caripar - GBK 847 / GBK847
  • DELPHI - LZ0002
  • DELPHI - LZ0120
  • FERODO - FWI206
  • FERODO - FWI226
  • FERODO - FWI226/1 / FWI2261
  • FERODO - FWI226/4 / FWI2264
  • FERODO - FWI227
  • FTE - BZ1001W
  • FTE - BZ1034W
  • FTE - BZ1034W-SET / BZ1034WSET
  • FTE - BZ1035W
  • HELLA - 8DK 355 250-141 / 8DK355250141
  • HELLA - 8DK 355 250-151 / 8DK355250151
  • HELLA - 8DK 355 251-981 / 8DK355251981
  • HELLA - 8DK 355 251-991 / 8DK355251991
  • HELLA PAGID - 8DK 355 250-141 / 8DK355250141
  • HELLA PAGID - 8DK 355 250-151 / 8DK355250151
  • HELLA PAGID - 8DK 355 251-981 / 8DK355251981
  • HELLA PAGID - 8DK 355 251-991 / 8DK355251991
  • JURID - 581304
  • JURID - 581304J
  • JURID - 581306
  • JURID - 581332
  • JURID - 581332J
  • JURID - 581333
  • JURID - 581333J
  • JURID - 581383
  • MERCEDES-BENZ - 000 540 02 17 / 0005400217
  • MERCEDES-BENZ - 123 540 00 17 / 1235400017
  • MERCEDES-BENZ - 126 540 20 17 / 1265402017
  • MERCEDES-BENZ - 126 540 20 17 / 1265402017
  • MERCEDES-BENZ - 140 540 12 17 / 1405401217
  • MERCEDES-BENZ - 140 540 12 17 / 1405401217
  • MERCEDES-BENZ - A 000 540 02 17 / A0005400217
  • MERCEDES-BENZ - A 000 540 02 17 / A0005400217
  • MERCEDES-BENZ - A 123 540 00 17 / A1235400017
  • MERCEDES-BENZ - A 123 540 00 17 / A1235400017
  • MERCEDES-BENZ - A 126 540 20 17 / A1265402017
  • MERCEDES-BENZ - A 126 540 20 17 / A1265402017
  • MERCEDES-BENZ - A 140 540 12 17 / A1405401217
  • MERCEDES-BENZ - A 140 540 12 17 / A1405401217
  • PAGID - P8011
  • PAGID - P8011
  • PAGID - P8012
  • PAGID - P8012
  • PAGID - P8610
  • PAGID - P8610
  • PAGID - P8611
  • PAGID - P8611
  • TEXTAR - 96990 0135 0 1 / 96990013501
  • TEXTAR - 96990 0213 0 1 / 96990021301
  • TEXTAR - 98013500
  • TEXTAR - 98021300
  • TEXTAR - 98021301
  • TEXTAR - 98021302
  • TRW - GIC105
  • TRW - GIC120
  • TRW - GIC122
  • TRW - GIC165
  • febi bilstein - 01498
  • febi bilstein - 03902
  • febi bilstein - 07616
