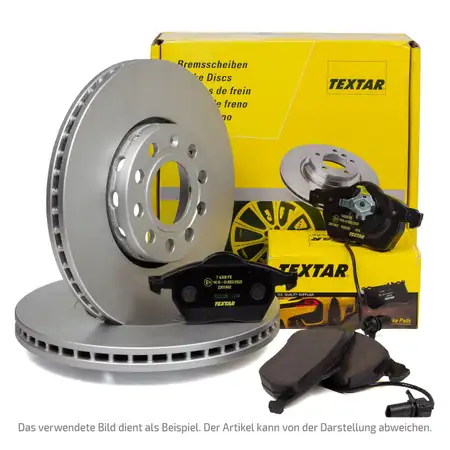

TEXTAR Brake Discs + Brake Pads + Sensor for FIAT Ducato (250_) 40Q (2014 and later) – Front

TEXTAR Brake Discs + Brake Pads + Sensor for FIAT Ducato (250_) 40Q (2014 and later) – Front

Item No.: A14652W662
Manufacturer: TEXTAR
part number: 92157303, 2446705

item specifications

Bolt Hole Circle Ø [mm]: 130
Surface: Coated
Outer Diameter [mm]: 300
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Packaging length [cm]: 31,3
Centering Diameter [mm]: 80
Quantity Unit: Piece
Packaging height [cm]: 10
Hole Arrangement/Number: 05/10
Minimum thickness [mm]: 29,9
Packaging width [cm]: 31,3
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Brake Disc Thickness [mm]: 32
Weight [kg]: 10,5
Height [mm]: 73,5
Inner Diameter [mm]: 161
Wheel Bolt Bore Diameter [mm]: 17,8

reference numbers - for comparison

ATE - 24013201311
ATE - 24013201881
ATE - 432131
ATE - 432188
BLUE PRINT - ADP154328
BOSCH - 0986479315
BOSCH - 0986AB5681
BOSCH - F026A06815
BOSCH - F026A06815
BREMBO - 09A45810
BREMBO - 09A45811
BREMBO - 09A45814
BREMBO - 09A4581G
BREMBO - 09D01811
BREMBO - 09D0181G
CHAMPION - 562630CH1
CITROEN - 1607872380
CITROEN - 1611841280
CITROEN - 1612435380
CITROEN - 1612435480
CITROEN - 1618864580
CITROEN - 424937
CITROEN - 424938
CITROEN - 4249A6
CITROEN / PEUGEOT - 16 124 354 80 / 1612435480
DELPHI - BG4060
DELPHI - BG4060T
DELPHI - BG9180C
EUROREPAR - 1618864580
EUROREPAR - 1686330680
EUROREPAR - 1687773080
EUROREPAR - 1697713080
FERODO - DDF1718
FERODO - DDF17181
FERODO - DDF27951
FIAT - 51705758
FIAT - 51740249
FIAT - 51957509
FIAT - 51957510
FIAT - 6001073176
FIAT - 71773409
FTE - 9071249
FTE - 9081005
FTE - BS7170
FTE - BS7170B
HELLA - 355113701
HELLA - 355123901
HELLA - 355125261
HELLA - 8DD355113701
HELLA - 8DD355123901
HELLA - 8DD355125261
HELLA PAGID - 355113701
HELLA PAGID - 355123901
HELLA PAGID - 355125261
HELLA PAGID - 8DD355113701
HELLA PAGID - 8DD355123901
HELLA PAGID - 8DD355125261
HERTH+BUSS JAKOPARTS - J3302239
HERTH+BUSS JAKOPARTS - J3302239
JURID - 562630JC
JURID - 562630JC1
JURID - 563305J1
JURID - 563305JC1
MAGNETI MARELLI - 360406180301
METZGER - 6110497
MEYLE - 2155210021
MEYLE - 2835210021PD
MEYLE - MBD0385
MEYLE - MBD2165PD
OPTIMAL - BS8378
OPTIMAL - BS8378HC
OPTIMAL - BS9766HC
PAGID - 54573
PAGID - 54573NC
PEUGEOT - 1612435380
PEUGEOT - 1612435480
PEUGEOT - 1618864580
PEUGEOT - 424937
PEUGEOT - 424938
PEUGEOT - 4249A6
RAM - 68195026AA
TEXTAR - 4019722480997
TEXTAR - 92157300
TEXTAR - 92157303
TEXTAR - 92157305
TEXTAR - 98200157301
TRW - DF4751S
VAICO - V2440031
VAICO - V2440031
VAICO - V4280006
VAICO - V4280006
VALEO - 197565
VALEO - 672934
ZIMMERMANN - 180303020
ZIMMERMANN - 230237400
ZIMMERMANN - 230237420
ZIMMERMANN - 230237470
ZIMMERMANN - 230237472
ZIMMERMANN - 230237475
febi bilstein - 44037

item specifications

Component: Braking System
Width [mm]: 169,1
Fitting Position: Front Axle
Packaging length [cm]: 17
Number of wear indicators [per axle]: 2
WVA Number: 24467
Quantity Unit: Set
Packaging height [cm]: 8,3
Article Number of recommended accessories: 82075900
Supplementary Article/Supplementary Info: with accessories
Packaging width [cm]: 12
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 20,8
Weight [kg]: 2,4
Height [mm]: 69,1
Brake System: Brembo
Wear Warning Contact: with integrated wear warning contact

reference numbers - for comparison

BLUE PRINT - ADP154221
BOSCH - 0986460239
BOSCH - 0986494799
BREMBO - P23161
BREMBO - P23161
BREMBO - P23161N
BREMBO - P23161N
DELPHI - LP2492
DELPHI - LP3623
EUROREPAR - 1675990080
EUROREPAR - 1682314080
FIAT - 77367093
FTE - 9001985
HELLA - 355023011
HELLA - 8DB355023011
HELLA PAGID - 355023011
HELLA PAGID - 8DB355023011
MAGNETI MARELLI - 363700423161
OPTIMAL - BP12959
PAGID - T2472
PAGID - T2472
PAGID - T2472N
PAGID - T2472N
RAICAM - 8864
RAICAM - RA08864
RAM - 1BP00285AB
RAM - 68230105AA
TEXTAR - 24466
TEXTAR - 24467
TEXTAR - 24467 208 1 5 / 2446720815
TEXTAR - 2446705
TEXTAR - 4019722476556
TRW - GDB2069
VALEO - 302264
VALEO - 302662
VALEO - 302662A
VALEO - 671874
VALEO - 872011
ZIMMERMANN - 244661901
febi bilstein - 16840

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
