  5. TEXTAR Brake Discs + Brake Pads + Sensor for FIAT 500 / C (312_) 0.9 1.2 Front
Search by keynumber

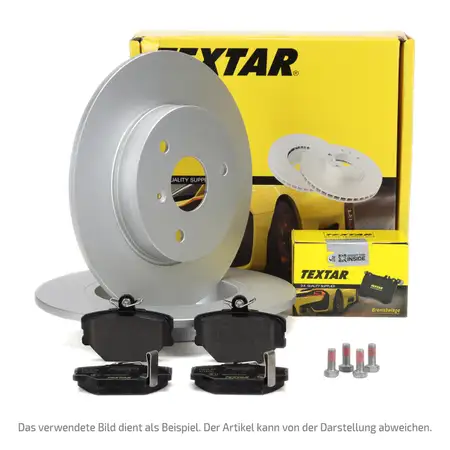

TEXTAR Brake Discs + Brake Pads + Sensor for FIAT 500 / C (312_) 0.9 1.2 Front

TEXTAR Brake Discs + Brake Pads + Sensor for FIAT 500 / C (312_) 0.9 1.2 Front

TEXTAR

Item No.: A14652W626
Manufacturer: TEXTAR
part number: 92236703, 2542901

Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: solid
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 257
  • Hole Arrangement/Number: 04/06
  • Surface: Coated
  • Supplementary Article/Supplementary Info 2: without wheel hub
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Supplementary Article/Supplementary Info 2: without wheel studs
  • Bolt Hole Circle Ø [mm]: 98
  • Height [mm]: 40,5
  • Brake Disc Thickness [mm]: 12
  • Minimum thickness [mm]: 10,2
  • Inner Diameter [mm]: 123
  • Weight [kg]: 4,4
  • Centering Diameter [mm]: 59
  • Wheel Bolt Bore Diameter [mm]: 13,2
  • Packaging length [cm]: 27,8
  • Packaging width [cm]: 27,8
  • Packaging height [cm]: 10,5
reference numbers - for comparison
  • ALFA ROMEO - 60802029
  • ALFA ROMEO - 60808872
  • ALFA ROMEO - 7663466
  • ATE - 24011201271
  • ATE - 24031101191
  • ATE - 24031201271
  • ATE - 412127
  • BLUE PRINT - ADL144318
  • BLUE PRINT - ADL144330
  • BOSCH - 0986478343
  • BOSCH - 0986479858
  • BOSCH - 0986479E65
  • BOSCH - BD283
  • BREMBO - 08508610
  • BREMBO - 08508611
  • BREMBO - 08508614
  • BREMBO - 08508675
  • BREMBO - 08962114
  • BREMBO - 8508675
  • CHAMPION - 561469CH
  • DELPHI - BG2411
  • DELPHI - BG411
  • ECORA - 4019722437014
  • EUROREPAR - 1618867380
  • EUROREPAR - 1687778280
  • EUROREPAR - 1690935180
  • FERODO - DDF141
  • FERODO - DDF1411
  • FERODO - DDF141C
  • FERODO - DDF141C1
  • FIAT - 46820655
  • FIAT - 51859075
  • FIAT - 51866265
  • FIAT - 60802029
  • FIAT - 71770935
  • FIAT - 71772241
  • FIAT - 7545556
  • FIAT - 7645055
  • FIAT - 7645556
  • FIAT - 92498609
  • FTE - 9072601
  • FTE - 9072847
  • FTE - 9082430
  • FTE - 9082613
  • FTE - BS3511
  • FTE - BS3511B
  • FTE - BS7393
  • FTE - BS7393B
  • HELLA - 355101611
  • HELLA - 355101621
  • HELLA - 355117931
  • HELLA - 530032919
  • HELLA - 8DD355117931
  • HELLA PAGID - 355101611
  • HELLA PAGID - 355101621
  • HELLA PAGID - 355117931
  • HELLA PAGID - 8DD355101611
  • HELLA PAGID - 8DD355101621
  • HELLA PAGID - 8DD355117931
  • HERTH+BUSS JAKOPARTS - J3300802
  • HERTH+BUSS JAKOPARTS - J3300802
  • JP Group - 3363100300
  • JURID - 561469J
  • JURID - 561469JC
  • JURID - 561469JC1
  • JURID - 562006J
  • JURID - 8290523
  • LANCIA - 46554302
  • LANCIA - 60802029
  • LANCIA - 71738373
  • MAGNETI MARELLI - 360406221700
  • MAGNETI MARELLI - 360406222101
  • METZGER - 6110124
  • MEYLE - 2155212002
  • MEYLE - 2155212002PD
  • MEYLE - MBD0399
  • MEYLE - MBD0399PD
  • OPTIMAL - BS1910
  • OPTIMAL - BS1910C
  • PAGID - 50910
  • PAGID - 50910PRO
  • PAGID - 55367
  • PAGID - 55367NC
  • PAGID - 55367PRO
  • RAICAM - RD01056
  • SEBRO - 3207
  • TEXTAR - 92041500
  • TEXTAR - 92041503
  • TEXTAR - 92236703
  • TEXTAR - 98200041501
  • TEXTAR - 98200236701
  • TOPRAN - 601689
  • TRW - DF1747
  • TRW - DF1747S
  • TRW - DF6231
  • VALEO - 186038
  • VALEO - 186154
  • VALEO - 186155
  • VALEO - 496076
  • VALEO - 672963
  • ZIMMERMANN - 230235700
  • ZIMMERMANN - 230235720
  • ZIMMERMANN - 230235752
  • ZIMMERMANN - 230235770
  • ZIMMERMANN - 230235772
  • ZIMMERMANN - 230235775
  • febi bilstein - 10618
  • febi bilstein - 43818
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 25429
  • Fitting Position: Front Axle
  • Wear Warning Contact: with integrated wear warning contact
  • Thickness [mm]: 16,7
  • Width [mm]: 149,5
  • Height [mm]: 52,5
  • Brake System: Teves
  • Weight [kg]: 1,4
  • Number of wear indicators [per axle]: 2
  • Packaging length [cm]: 17
  • Packaging width [cm]: 12
  • Packaging height [cm]: 8,3
reference numbers - for comparison
  • ATE - 13046072882
  • ATE - 13047072882
  • ATE - 607288
  • ATE - LD7288
  • BLUE PRINT - ADL144218
  • BOSCH - 0986494463
  • BOSCH - 0986TB3143
  • BREMBO - 07D43572
  • BREMBO - P23138
  • BREMBO - P23138
  • BREMBO - P23138N
  • BREMBO - P23138N
  • CHAMPION - 573367CH
  • DELPHI - LP2288
  • ECORA - 4019722439650
  • EUROREPAR - 1681161780
  • EUROREPAR - 1681273180
  • FERODO - FDB4353
  • FERODO - FSL4353
  • FIAT - 77365729
  • FIAT - 77365811
  • FIAT - 77366270
  • FIAT - 77366537
  • FIAT - 77366538
  • FTE - 9002045
  • FTE - 9010915
  • HELLA - 355019651
  • HELLA - 355039351
  • HELLA - 8DB355019651
  • HELLA - 8DB355039351
  • HELLA PAGID - 355019651
  • HELLA PAGID - 355039351
  • HELLA PAGID - 8DB355019651
  • HELLA PAGID - 8DB355039351
  • HERTH+BUSS JAKOPARTS - J3600869
  • HERTH+BUSS JAKOPARTS - J3600869
  • JP Group - 3363602500
  • JURID - 573367J
  • MAGNETI MARELLI - 363700202112
  • MAGNETI MARELLI - T2112MM
  • MAGNETI MARELLI - T2112MM
  • METZGER - 017252
  • METZGER - 1170202
  • OPTIMAL - 12556
  • OPTIMAL - 12705
  • OPTIMAL - BP12705
  • PAGID - T2112
  • PAGID - T2112
  • PAGID - T2112N
  • PAGID - T2112N
  • PAGID - T2112N54457N00
  • PAGID - T2112N54457N00
  • PAGID - T2112N54458N00
  • PAGID - T2112N54458N00
  • PAGID - T2112N55367N00
  • PAGID - T2112N55367N00
  • RAICAM - RA03188
  • RAICAM - RA03189
  • TEXTAR - 2542901
  • TEXTAR - 2542901145700
  • TEXTAR - 2542901145800
  • TEXTAR - 2542901236700
  • TEXTAR - 4019722439650
  • TEXTAR - 9215D1987
  • TEXTAR - 9218D2088
  • TOPRAN - 601690
  • TRW - GDB1899
  • TRW - GDB1900
  • TRW - GDB1900DTE
  • TRW - TXH1568
  • VAICO - V240375
  • VAICO - V240375
  • VALEO - 301298
  • VALEO - 601298
  • VALEO - 670298
  • ZIMMERMANN - 254291802
Name:
TMD Friction Services GmbH
Website:
www.textar.com
E-Mail:
serviceline@textar.com
Phone:
+49 2171 703 0
Street, House no:
Schlebuscher Strasse 99
ZIP / City:
51381 Leverkusen
Country:
Germany
