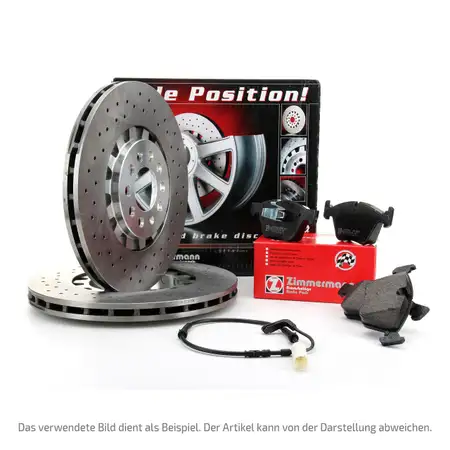

  5. Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW X5M F85 and X6M F86 (Front)
Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW X5M F85 and X6M F86 (Front)

Zimmermann FORMULA Z Brake Discs + Brake Pads + Sensor for BMW X5M F85 and X6M F86 (Front)

ZIMMERMANN CARIPAR

Item No.: A17652W365
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.2967.70, 150.2968.70, 25300.190.1, GBK 466

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Surface: Coated
  • Outer Diameter [mm]: 395
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: Perforated
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Front Axle Left
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 75
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 34,4
  • Machining: Alloyed/High-carbon
  • Brake Disc Thickness [mm]: 36
  • Weight [kg]: 17,2
  • directional:
  • Height [mm]: 62
reference numbers - for comparison
  • BMW - 2 284 901 / 2284901
  • BMW - 3411 2 284 901 / 34112284901
  • SHW Performance - BFL48501
  • ZIMMERMANN - 150.2967.70 / 150296770
  • ZIMMERMANN - 4250238782827
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Surface: Coated
  • Outer Diameter [mm]: 395
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: Perforated
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Front Axle Right
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 75
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 34,4
  • Machining: Alloyed/High-carbon
  • Brake Disc Thickness [mm]: 36
  • Weight [kg]: 17,2
  • directional:
  • Height [mm]: 62
reference numbers - for comparison
  • BMW - 2 284 902 / 2284902
  • BMW - 3411 2 284 902 / 34112284902
  • SHW Performance - BFR48502
  • ZIMMERMANN - 150.2968.70 / 150296870
  • ZIMMERMANN - 4250238782834
item specifications
  • Component: Braking System
  • Width [mm]: 210
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 25300
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with counterweights
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 19
  • Height [mm]: 101
  • Brake System: BREMBO
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • BMW - 3411 7 852 969 / 34117852969
  • BMW - 7 852 969 / 7852969
  • BOSCH - 0 986 424 387 / 0986424387
  • BREMBO - P 06 112 / P06112
  • BREMBO - P 06 112 / P06112
  • DELPHI - LP3868
  • FERODO - FDB5172
  • JURID - 573879J
  • TEXTAR - 2219401
  • TRW - GDB2211
  • ZIMMERMANN - 25300
  • ZIMMERMANN - 25300.190.1 / 253001901
  • ZIMMERMANN - 4250238784678
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle Left
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24819002912
  • ATE - 620291
  • BMW - 34 35 6 792 568 / 34356792568
  • BMW - 34356792568
  • BMW - 6792568
  • BOSCH - 1987473510
  • BOSCH - 1987473541
  • BOSCH - 1987473567
  • BREMBO - A00432
  • BREMBO - A00432
  • Caripar - GBK 466 / GBK466
  • DELPHI - LZ0219
  • DELPHI - LZ0342
  • FERODO - FWI354
  • FTE - BZ1167WSET
  • HELLA - 355251731
  • HELLA - 8DK355251731
  • HELLA PAGID - 355251731
  • HELLA PAGID - 8DK355251731
  • HERTH+BUSS JAKOPARTS - 70608148
  • JURID - 581452
  • JURID - FWI354
  • METZGER - 1190306
  • MEYLE - 3145270013
  • MEYLE - MWS0076
  • OPTIMAL - WKT60027K
  • OPTIMAL - WKT60089K
  • PAGID - P8584
  • PAGID - P8584
  • PAGID - P8584N
  • PAGID - P8584N
  • QUICK BRAKE - WS0283A
  • TEXTAR - 98043400
  • TRW - GIC265
  • febi bilstein - 104599
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
