  5. TEXTAR Brake Discs + Pads for FIAT 500 Panda 312, 319, 1.0 Mild Hybrid, 500e, 332 (Front)

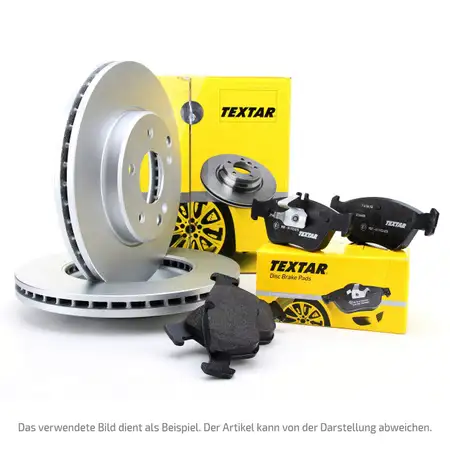

TEXTAR Brake Discs + Pads for FIAT 500 Panda 312, 319, 1.0 Mild Hybrid, 500e, 332 (Front)

TEXTAR Brake Discs + Pads for FIAT 500 Panda 312, 319, 1.0 Mild Hybrid, 500e, 332 (Front)

TEXTAR

Item No.: A17652W487
Manufacturer: TEXTAR
part number: 92069603, 2678601

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 98
  • Surface: Coated
  • Outer Diameter [mm]: 257
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Packaging length [cm]: 27,8
  • Centering Diameter [mm]: 59
  • Quantity Unit: Piece
  • Packaging height [cm]: 10,5
  • Hole Arrangement/Number: 04/06
  • Minimum thickness [mm]: 20,2
  • Packaging width [cm]: 27,8
  • Supplementary Article/Supplementary Info 2: without wheel hub
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Supplementary Article/Supplementary Info 2: without wheel studs
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 5
  • Height [mm]: 40,3
  • Inner Diameter [mm]: 127,1
  • Wheel Bolt Bore Diameter [mm]: 13
reference numbers - for comparison
  • ALFA ROMEO - 60812137
  • ATE - 24012201901
  • ATE - 24012201971
  • ATE - 24032201971
  • ATE - 422190
  • ATE - 422197
  • ATE - 522197
  • BLUE PRINT - ADA104369
  • BLUE PRINT - ADL144306
  • BLUE PRINT - ADP154303
  • BOSCH - 0986478639
  • BOSCH - 0986479B43
  • BREMBO - 09584310
  • BREMBO - 09584311
  • BREMBO - 09584314
  • BREMBO - 0958431S
  • BREMBO - 09963010
  • BREMBO - 59E11528
  • BREMBO - FD054000
  • BREMBO - FS054000
  • CHAMPION - 562178CH
  • CITROEN - 1606321980
  • CITROEN - 1617328980
  • CITROEN - 1618879780
  • CITROEN - 424973
  • CITROEN - 424974
  • CITROEN - 4249E5
  • CITROEN - 4249L2
  • DELPHI - BG3574
  • EUROREPAR - 1618879780
  • EUROREPAR - 1686332680
  • FERODO - DDF762
  • FERODO - DDF7621
  • FERODO - DDF762C
  • FERODO - DDF762C1
  • FERODO - DDF762X
  • FIAT - 46401356
  • FIAT - 46542383
  • FIAT - 46831041
  • FIAT - 51896287
  • FIAT - 51896288
  • FIAT - 52015293
  • FIAT - 52063172
  • FIAT - 59064264
  • FIAT - 60812137
  • FIAT - 71739640
  • FTE - 9072020
  • FTE - 9082007
  • FTE - BS4674
  • FTE - BS4674B
  • HELLA - 355103961
  • HELLA - 355103971
  • HELLA - 355124921
  • HELLA - 530033034
  • HELLA - 8DD355103961
  • HELLA - 8DD355103971
  • HELLA - 8DD355124921
  • HELLA PAGID - 355103961
  • HELLA PAGID - 355103971
  • HELLA PAGID - 355124921
  • HELLA PAGID - 8DD355103961
  • HELLA PAGID - 8DD355103971
  • HELLA PAGID - 8DD355124921
  • HERTH+BUSS JAKOPARTS - J3300801
  • HERTH+BUSS JAKOPARTS - J3300801
  • JURID - 562178J
  • JURID - 562178JC
  • JURID - 562178JC1
  • LANCIA - 51896287
  • LANCIA - 51896288
  • MAGNETI MARELLI - 360406213500
  • METZGER - 6110216
  • MEYLE - 2155210002
  • MEYLE - 2155210002PD
  • MEYLE - 2155210022PD
  • MEYLE - MBD1841
  • MEYLE - MBD1841PD
  • OPTIMAL - BS4430
  • OPTIMAL - BS4430C
  • PAGID - 51811
  • PAGID - 51811NC
  • PAGID - 51811PRO
  • PEUGEOT - 1618879780
  • PEUGEOT - 424973
  • PEUGEOT - 4249E5
  • PEUGEOT - 4249L2
  • TEXTAR - 4019722308789
  • TEXTAR - 92069600
  • TEXTAR - 92069603
  • TEXTAR - 92069605
  • TEXTAR - 98200069601
  • TRW - DF2734
  • TRW - DF2734S
  • TRW - RCDI00800
  • VAICO - V2480006
  • VAICO - V2480006
  • VALEO - 186590
  • VALEO - 496033
  • VALEO - 672805
  • ZIMMERMANN - 230236500
  • ZIMMERMANN - 230236520
  • ZIMMERMANN - 230236552
  • ZIMMERMANN - 230236570
  • ZIMMERMANN - 230236572
  • ZIMMERMANN - 230236575
  • febi bilstein - 108640
  • febi bilstein - 22927
item specifications
  • Component: Braking System
  • Width [mm]: 149,6
  • Fitting Position: Front Axle
  • Packaging length [cm]: 17
  • WVA Number: 26786
  • Quantity Unit: Set
  • Packaging height [cm]: 8,3
  • Supplementary Article/Supplementary Info: with accessories
  • Packaging width [cm]: 12
  • Thickness [mm]: 17,3
  • Weight [kg]: 1
  • Height [mm]: 52,5
  • Brake System: ATE
  • Wear Warning Contact: with acoustic wear warning
reference numbers - for comparison
  • ATE - 13047073602
  • ATE - LD7360
  • DELPHI - LP3668
  • DELPHI - LP5079EV
  • FIAT - 77368668
  • FIAT - 77368831
  • HELLA - 355046041
  • HELLA - 8DB355046041
  • HELLA PAGID - 355046041
  • HELLA PAGID - 8DB355046041
  • JURID - 573366J
  • LANCIA - 77368668
  • LANCIA - 77368831
  • PAGID - T4254
  • PAGID - T4254
  • PAGID - T4254N
  • PAGID - T4254N
  • SKF - VKBP81433A
  • TEXTAR - 26786
  • TEXTAR - 26786 173 1 5 / 2678617315
  • TEXTAR - 2678601
  • TEXTAR - 26787
  • TEXTAR - 4019722589539
  • TRW - GDB2350
  • VAICO - V241484
  • VAICO - V241484
  • VALEO - 302942
  • VALEO - 610499
  • ZIMMERMANN - 267861702
