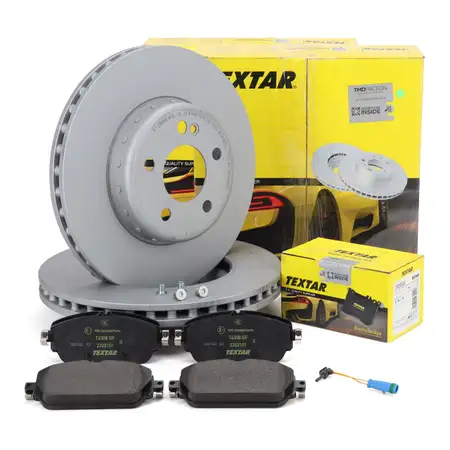

TEXTAR Bremsscheiben + Bremsbeläge + Sensor für MERCEDES W205 W213 ohne Sportpaket vorne

TEXTAR Bremsscheiben + Bremsbeläge + Sensor für MERCEDES W205 W213 ohne Sportpaket vorne

Item No.: A18652W232
Manufacturer: TEXTAR, CARIPAR
part number: 92343625, 2203101, GBK 625

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: two-piece brake disc
Fitting Position: Front Axle
Outer Diameter [mm]: 305
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Supplementary Article/Supplementary Info 2: with bolts/screws
Bolt Hole Circle Ø [mm]: 110
Height [mm]: 62,6
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 25,4
Inner Diameter [mm]: 153,4
Machining: High-carbon
Weight [kg]: 8,8
Centering Diameter [mm]: 69
Wheel Bolt Bore Diameter [mm]: 15,4
Number of bolts/screws: 1
Packaging length [cm]: 31,3
Packaging width [cm]: 31,3
Packaging height [cm]: 10

reference numbers - for comparison

ATE - 24.0128-0330.1 / 24012803301
BOSCH - 0 986 479 H46 / 0986479H46
BREMBO - 09.D526.13 / 09D52613
ECORA - 4019722586040
FERODO - DDF2629VC-1 / DDF2629VC1
JURID - 563251JVC-1 / 563251JVC1
MERCEDES-BENZ - 000 421 25 12 / 0004212512
MERCEDES-BENZ - A 000 421 2512 / A0004212512
MERCEDES-BENZ - A 000 421 2512 / A0004212512
TEXTAR - 92343625
TRW - DF6641S
ZIMMERMANN - 400.5515.35 / 400551535
ZIMMERMANN - 400551530

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 22031
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info 2: without bolts/screws
Thickness [mm]: 19,3
Width [mm]: 144
Height 1 [mm]: 69,8
Height 2 [mm]: 59,8
Brake System: TRW
Weight [kg]: 1,88
Observe assembly information:
directional:
Packaging length [cm]: 15,2
Packaging width [cm]: 8,8
Packaging height [cm]: 8,4

reference numbers - for comparison

ATE - 13046027922
ATE - 602792
ATE - LD2792
ATE - LD9003
BLUE PRINT - ADU174230
BOSCH - 0986460128
BOSCH - 0986494782
BOSCH - 0986T11246
BOSCH - 0986T14836
BREMBO - 07D43524
BREMBO - P50118NX
BREMBO - P50118NX
BREMBO - P50119
BREMBO - P50119
BREMBO - P50119N
BREMBO - P50119N
CHAMPION - 573671CH
DELPHI - LP2764
DELPHI - LP276414B1
DELPHI - LP276417B1
DELPHI - LP2764N18B1
DELPHI - LP2764ND19B1
ECORA - 4019722465451
EUROREPAR - 1639381880
EUROREPAR - 1681226780
FERODO - FDB4870
FERODO - FDB4870D
FERODO - HQF4125AC
HELLA - 355021541
HELLA - 355021551
HELLA - 355029931
HELLA - 8DB355021541
HELLA PAGID - 355021541
HELLA PAGID - 355021551
HELLA PAGID - 355029931
HELLA PAGID - 8DB355021541
HERTH+BUSS JAKOPARTS - J3600877
HERTH+BUSS JAKOPARTS - J3600877
JP Group - 1363607210
JURID - 573671J
MAGNETI MARELLI - 363700450118
MAGNETI MARELLI - 363700450119
MERCEDES-BENZ - 000 420 89 03 / 0004208903
MERCEDES-BENZ - 000 420 97 03 / 0004209703
MERCEDES-BENZ - 0004204500
MERCEDES-BENZ - 0004208700
MERCEDES-BENZ - 0074204620
MERCEDES-BENZ - 008 420 37 20 / 0084203720
MERCEDES-BENZ - 0084203120
MERCEDES-BENZ - A0004204500
MERCEDES-BENZ - A0004204500
MERCEDES-BENZ - A0004208700
MERCEDES-BENZ - A0004208700
MERCEDES-BENZ - A0004208903
MERCEDES-BENZ - A0004208903
MERCEDES-BENZ - A0004209703
MERCEDES-BENZ - A0004209703
MERCEDES-BENZ - A0074204620
MERCEDES-BENZ - A0074204620
MERCEDES-BENZ - A0084203120
MERCEDES-BENZ - A0084203120
MERCEDES-BENZ - A0084203720
MERCEDES-BENZ - A0084203720
MEYLE - 0252203119
MEYLE - 0252203119PD
MEYLE - MBP1687
MEYLE - MBP1687PD
MEYLE - MBP1688
MEYLE - MBP1688PD
PAGID - T2372
PAGID - T2372
PAGID - T2372N
PAGID - T2372N
RAICAM - 10840
RAICAM - 10841
RAICAM - RA10841
TEXTAR - 22031 193 0 5 / 2203119305
TEXTAR - 2203101
TEXTAR - 2203106
TEXTAR - 22032
TEXTAR - 9066D1837
TEXTAR - D1837-9066 / D18379066
TEXTAR - D1837-9066 / D18379066
TRW - GDB2070
TRW - GDB2070DTE
VALEO - 207609
VALEO - 208076
VALEO - 302211
VALEO - 302211A
VALEO - 606534
VALEO - 671774
ZIMMERMANN - 220311951
ZIMMERMANN - 220319951
febi bilstein - 16988

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24.8190-0067.2 / 24819000672
ATE - 620067
BOSCH - 0986T10000
BOSCH - 1987474553
BREMBO - A00353
BREMBO - A00353
Caripar - GBK 625 / GBK625
DELPHI - LZ0363
FERODO - FWI261
FERODO - FWI475
FTE - BZ1192W
HELLA - 355252141
HELLA - 8DK355252141
HELLA PAGID - 355252141
HELLA PAGID - 8DK 355 252-141 / 8DK355252141
JURID - 581379
JURID - 581511
MERCEDES-BENZ - 169 540 16 17 / 1695401617
MERCEDES-BENZ - A1695401617
MERCEDES-BENZ - A1695401617
METZGER - 1190294
OPTIMAL - WKT60093K
PAGID - P8641
PAGID - P8641
PAGID - P8641N
PAGID - P8641N
TEXTAR - 98048700
TEXTAR - 98048710
TRW - GIC242
TRW - GIC242CN
febi bilstein - 39246
