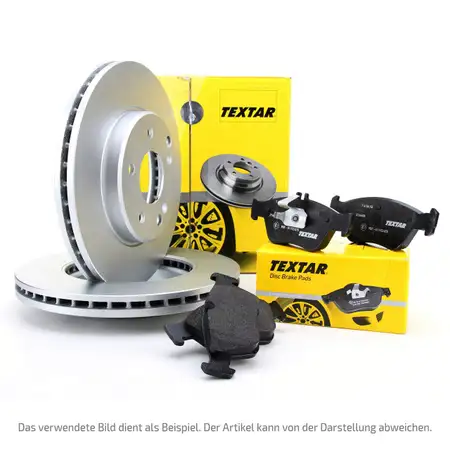

TEXTAR Brake Discs + Pads for DACIA Dokker, Lodgy, and RENAULT Captur 1 (Front)

TEXTAR Brake Discs + Pads for DACIA Dokker, Lodgy, and RENAULT Captur 1 (Front)

Item No.: PKT772W079
Manufacturer: TEXTAR
part number: 92254603, 2491401

Items included:

2x Brake Disc Piece - TEXTAR 92254603
1x Brake Pad Set, disc brake Set - TEXTAR 2491401

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Outer Diameter [mm]: 280
Hole Arrangement/Number: 04/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 44
Brake Disc Thickness [mm]: 24
Minimum thickness [mm]: 21,8
Inner Diameter [mm]: 140
Weight [kg]: 6,6
Centering Diameter [mm]: 61
Wheel Bolt Bore Diameter [mm]: 13,8
Packaging length [cm]: 29,3
Packaging width [cm]: 29,3
Packaging height [cm]: 10,5

reference numbers - for comparison

DACIA - 4020 605 40R / 402060540R
DACIA - 402068053R
DACIA - 402069518R
DELPHI - BG4536
ECORA - 4019722456084
PAGID - 55546
PAGID - 55546NC
RENAULT - 402060540R
RENAULT - 402065719R
RENAULT - 402068053R
RENAULT - 402069518R
TEXTAR - 92254603

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24914
Fitting Position: Front Axle
Wear Warning Contact: not prepared for wear warning indicator
Thickness [mm]: 18
Width 1 [mm]: 155,2
Width 2 [mm]: 155,3
Height 1 [mm]: 59,4
Height 2 [mm]: 64,7
Brake System: Teves
Weight [kg]: 1,7
Observe assembly information:
directional:
Packaging length [cm]: 17
Packaging width [cm]: 12
Packaging height [cm]: 8,3

reference numbers - for comparison

ATE - 13046072662
ATE - 13046073802
ATE - 13047072662
ATE - 13047073802
ATE - 607266
ATE - 607380
ATE - LD7266
ATE - LD7380
BLUE PRINT - ADR164206
BOSCH - 0986494441
BOSCH - 0986495416
BOSCH - 098650A534
BOSCH - 0986BB0981
BOSCH - 0986TB3116
BOSCH - F03B050408
BOSCH - F03B050408
BREMBO - P68050
BREMBO - P68050
BREMBO - P68050E
BREMBO - P68050E
BREMBO - P68050N
BREMBO - P68050N
BREMBO - P68050X
BREMBO - P68050X
CHAMPION - 573268CH
DELPHI - LP2152
DELPHI - LP2152N18B1
DELPHI - LP5086EV
ECORA - 4019722313608
EUROREPAR - 1617274080
EUROREPAR - 1643071780
EUROREPAR - 1681261680
EUROREPAR - 1682311980
FERODO - FDB4180
FERODO - FDB4180W
FERODO - FDB5192
FERODO - FSL4180
FTE - 9001009
FTE - 9010844
FTE - BL2593A1
HELLA - 355014791
HELLA - 355045491
HELLA - 530032816
HELLA - 8DB355014791
HELLA - 8DB355045491
HELLA PAGID - 355014791
HELLA PAGID - 355045491
HELLA PAGID - 8DB355014791
HELLA PAGID - 8DB355045491
HERTH+BUSS JAKOPARTS - J3601076
HERTH+BUSS JAKOPARTS - J3601076
JP Group - 4363601210
JURID - 573268J
JURID - 573268JC
JURID - HQJ2302
MAGNETI MARELLI - 323700019600
MAGNETI MARELLI - 363700201894
MAGNETI MARELLI - 363700468050
MAGNETI MARELLI - T1894MM
MAGNETI MARELLI - T1894MM
METZGER - 1170265
METZGER - 124810
MEYLE - 0252491418
MEYLE - 0252491418PD
MEYLE - MBP0677
MEYLE - MBP0677PD
MITSUBISHI - MQ005240
MITSUBISHI - MQ005243
NISSAN - 4106000Q1B
NISSAN - 4106000Q1C
NISSAN - 4106000Q1L
NISSAN - 410A100QAA
OPTIMAL - 12392
OPTIMAL - BP12392
PAGID - T1894
PAGID - T1894
PAGID - T1894N
PAGID - T1894N
RAICAM - 9420
RAICAM - RA09420
RENAULT - 410300379R
RENAULT - 410600379R
RENAULT - 410601306R
RENAULT - 410603172R
RENAULT - 410605961R
RENAULT - 410607115R
RENAULT - 410608364R
RENAULT - 410609896R
RENAULT - 410A12582R
RENAULT - 440603905R
RENAULT - 8660000781
RENAULT - 8660004545
TEXTAR - 24538
TEXTAR - 24914
TEXTAR - 24914 180 0 5 / 2491418005
TEXTAR - 2491401
TEXTAR - 8844D1627
TRW - GDB1789
TRW - GDB1789BTE
TRW - GDB1789DTE
TRW - RCPT13890
VALEO - 301059
VALEO - 601045
VALEO - 670045
ZIMMERMANN - 249141801
ZIMMERMANN - 249149801
febi bilstein - 16783
