  5. Zimmermann FORMULA Z Brake Discs + Pads + Wako for AUDI RS5 8T3 8F7 450 hp (rear)

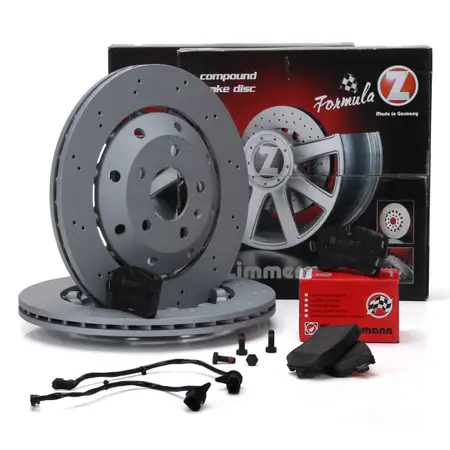

Zimmermann FORMULA Z Brake Discs + Pads + Wako for AUDI RS5 8T3 8F7 450 hp (rear)

Zimmermann FORMULA Z Brake Discs + Pads + Wako for AUDI RS5 8T3 8F7 450 hp (rear)

ZIMMERMANN

Item No.: PKT772W876
Manufacturer: ZIMMERMANN
part number: 100.3366.70, 25214.175.2

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: Perforated
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 68
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 20
  • Processing: Alloyed/High-carbon
  • Version: Formula Z
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 6,40
  • Height [mm]: 41
reference numbers - for comparison
  • AUDI - 8T0 615 601 A / 8T0615601A
  • SHW Performance - ARX48221
  • VAG - 8T0 615 601 / 8T0615601
  • VAG - 8T0 615 601 A / 8T0615601A
  • VAG - 8T0 615 601 A / 8T0615601A
  • ZIMMERMANN - 100.3366.70 / 100336670
  • ZIMMERMANN - 4250238763529
item specifications
  • Component: Braking System
  • Width [mm]: 116
  • Fitting Position: Rear Axle
  • Number of wear indicators [per axle]: 2
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 25214
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with brake caliper screws
  • Thickness [mm]: 18
  • Height 2 [mm]: 59
  • Brake System: LUCAS
  • Wear Warning Contact: incl. wear warning contact
  • Height 1 [mm]: 60
reference numbers - for comparison
  • ATE - 13.0460-2770.2 / 13046027702
  • ATE - 13.0470-2770.2 / 13047027702
  • BOSCH - 0 986 494 488 / 0986494488
  • BREMBO - 07.B315.57 / 07B31557
  • BREMBO - P 85 119 / P85119
  • BREMBO - P 85 119 / P85119
  • BREMBO - P 85 150 / P85150
  • BREMBO - P 85 150 / P85150
  • BREMBO - P 85 150X / P85150X
  • BREMBO - P 85 150X / P85150X
  • FERODO - FDB4410
  • HELLA PAGID - 8DB 355 016-061 / 8DB355016061
  • HELLA PAGID - 8DB 355 025-311 / 8DB355025311
  • JURID - 573428J
  • PORSCHE - 95B 698 451 E / 95B698451E
  • PORSCHE - 95B 698 451 H / 95B698451H
  • PORSCHE - 9A7 698 451 00 / 9A769845100
  • PORSCHE - PAB 698 451 / PAB698451
  • RAICAM - 931.3 / 9313
  • RAICAM - RA.0931.3 / RA09313
  • TEXTAR - 2521413
  • TRW - GDB1902
  • TRW - GDB2464
  • VAG - 4G0 698 451 / 4G0698451
  • VAG - 4G0 698 451 A / 4G0698451A
  • VAG - 4G0 698 451 B / 4G0698451B
  • VAG - 4G0 698 451 C / 4G0698451C
  • VAG - 4G0 698 451 H / 4G0698451H
  • VAG - 4G0 698 451 J / 4G0698451J
  • VAG - 4G0 698 451 K / 4G0698451K
  • VAG - 4G0 698 451 L / 4G0698451L
  • VAG - 4H0 698 451 L / 4H0698451L
  • VAG - 4H0 698 451 S / 4H0698451S
  • VAG - PAB 698 451 / PAB698451
  • VOLKSWAGEN - 4H0 698 451 S / 4H0698451S
  • ZIMMERMANN - 24606
  • ZIMMERMANN - 25214
  • ZIMMERMANN - 25214.175.2 / 252141752
  • ZIMMERMANN - 4250238759690
  • ZIMMERMANN - D1547-8755 / D15478755
  • ZIMMERMANN - D1547-8755 / D15478755
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
