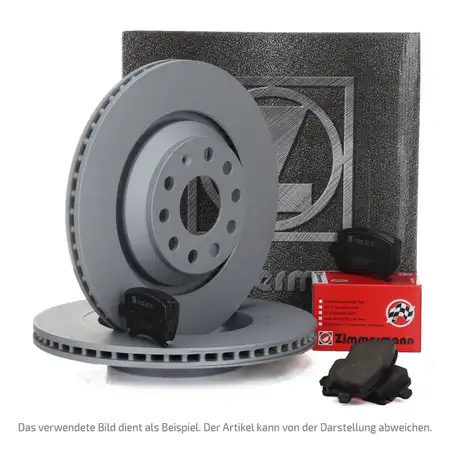

ZIMMERMANN Brake Discs + Brake Pads for HYUNDAI i20 GB IB Stonic YB 14-inch front

ZIMMERMANN Brake Discs + Brake Pads for HYUNDAI i20 GB IB Stonic YB 14-inch front

ZIMMERMANN

Item No.: PKT772W981
Manufacturer: ZIMMERMANN
part number: 320.3803.20, 25348.180.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 100
  • Outer Diameter [mm]: 256
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 62
  • Quantity Unit: Piece
  • Rim Hole Number: 4
  • Hole Arrangement/Number: 6/4
  • Minimum thickness [mm]: 20
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 5,3
  • Height [mm]: 46
reference numbers - for comparison
  • ATE - 24.0122-0260.1 / 24012202601
  • BOSCH - 0 986 479 367 / 0986479367
  • BREMBO - 09.A445.10 / 09A44510
  • BREMBO - 09.A445.11 / 09A44511
  • DELPHI - BG4096
  • DELPHI - BG4096C
  • FERODO - DDF1603C
  • HELLA PAGID - 8DD 355 119-011 / 8DD355119011
  • HERTH+BUSS JAKOPARTS - J3300325
  • HERTH+BUSS JAKOPARTS - J3300325
  • HYUNDAI - 51712-1G000 / 517121G000
  • KIA - 51712-1G000 / 517121G000
  • TEXTAR - 92164703
  • TRW - DF4839
  • VALEO - 197291
  • ZIMMERMANN - 320.3803.20 / 320380320
  • ZIMMERMANN - 320.3803.52 / 320380352
  • ZIMMERMANN - 320.3803.53 / 320380353
  • ZIMMERMANN - 4250238757160
item specifications
  • Component: Braking System
  • Width 1 [mm]: 133
  • Fitting Position: Front Axle
  • Number of wear indicators [per axle]: 2
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 25348
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 18
  • Brake System: MANDO
  • Wear Warning Contact: with acoustic wear warning
  • Height 1 [mm]: 60
reference numbers - for comparison
  • ATE - 13.0460-5506.2 / 13046055062
  • BOSCH - 0 986 494 563 / 0986494563
  • BREMBO - P 30 098 / P30098
  • BREMBO - P 30 098 / P30098
  • FERODO - FDB5040
  • HELLA PAGID - 8DB 355 036-501 / 8DB355036501
  • HERTH+BUSS JAKOPARTS - J3600352
  • HERTH+BUSS JAKOPARTS - J3600352
  • HYUNDAI - 58101-1RA00 / 581011RA00
  • HYUNDAI - 58101-1RA05 / 581011RA05
  • HYUNDAI - 58101-1RA10 / 581011RA10
  • HYUNDAI - 58101-1VA00 / 581011VA00
  • HYUNDAI - 58101-4LA00 / 581014LA00
  • HYUNDAI - 58101-C7A00 / 58101C7A00
  • HYUNDAI - 58101-C8A00 / 58101C8A00
  • HYUNDAI - 58101-C8A10 / 58101C8A10
  • HYUNDAI - 58101-C8A50 / 58101C8A50
  • HYUNDAI - 58101-C8A60 / 58101C8A60
  • HYUNDAI - 58101-H5A25 / 58101H5A25
  • HYUNDAI - 58101-H9A10 / 58101H9A10
  • HYUNDAI - 58101-Q0A00 / 58101Q0A00
  • JURID - 573815J
  • KIA - 13602-12006K / 1360212006K
  • KIA - 58101-1RA01 / 581011RA01
  • KIA - 58101-1WA00 / 581011WA00
  • KIA - 58101-1WA05 / 581011WA05
  • KIA - 58101-1WA35 / 581011WA35
  • KIA - 58101-4LA00 / 581014LA00
  • KIA - 58101-H8A00 / 58101H8A00
  • KIA - 58101-H8A05 / 58101H8A05
  • KIA - 58101-H8A50 / 58101H8A50
  • KIA - 58101-H8A53 / 58101H8A53
  • KIA - 58101-H8A55 / 58101H8A55
  • KIA - 58101-H8A58 / 58101H8A58
  • KIA - 58101-H9A10 / 58101H9A10
  • KIA - S58101-1WA05 / S581011WA05
  • KIA - S58101-1WA05 / S581011WA05
  • KIA - S58101-1WA35 / S581011WA35
  • KIA - S58101-1WA35 / S581011WA35
  • RAICAM - RA.1052.0 / RA10520
  • TEXTAR - 2222701
  • TEXTAR - 2534801
  • TRW - GDB3548
  • ZIMMERMANN - 22227
  • ZIMMERMANN - 22228
  • ZIMMERMANN - 22229
  • ZIMMERMANN - 25348
  • ZIMMERMANN - 25348.180.1 / 253481801
  • ZIMMERMANN - 25349
  • ZIMMERMANN - 25350
  • ZIMMERMANN - 4250238760191
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
