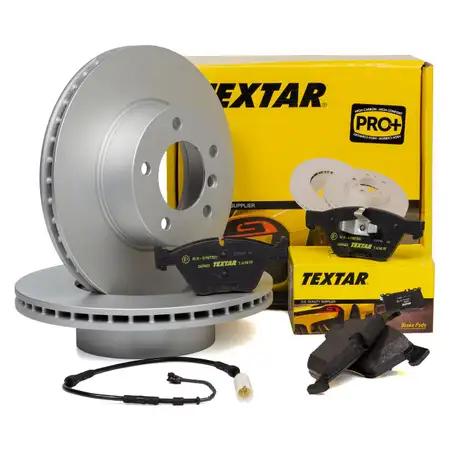

TEXTAR Brake Discs + Pads + Warning Sensor for BMW 1 Series E81-88 and 3 Series E90-93 (from March 2010) – Front

TEXTAR Brake Discs + Pads + Warning Sensor for BMW 1 Series E81-88 and 3 Series E90-93 (from March 2010) – Front

Item No.: PKT772W916
Manufacturer: TEXTAR, CARIPAR
part number: 92137705, 2409601, A059093

Items included:

2x Brake Disc Piece - TEXTAR 92137705
1x Brake Pad Set, disc brake Set - TEXTAR 2409601
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 420

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 300
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 73,5
Brake Disc Thickness [mm]: 23,8
Minimum thickness [mm]: 22,4
Inner Diameter [mm]: 151,8
Machining: High-carbon
Weight [kg]: 8,3
Centering Diameter [mm]: 79
Wheel Bolt Bore Diameter [mm]: 14,7
Packaging length [cm]: 30,8
Packaging width [cm]: 30,8
Packaging height [cm]: 18,5

reference numbers - for comparison

ATE - 24012401971
ATE - 24032401971
ATE - 424197
ATE - 524197
BLUE PRINT - ADB114305
BMW - 34 11 6 772 669 / 34116772669
BMW - 34 11 6 854 998 / 34116854998
BMW - 34116764643
BMW - 6764643
BMW - 6772669
BMW - 6854998
BOSCH - 0986479216
BOSCH - 0986AB5949
BOSCH - 0986AB6411
BREMBO - 09A29510
BREMBO - 09A29511
BREMBO - 09A29514
BREMBO - 09C64911
BREMBO - 59E11551
CHAMPION - 562342CH
DELPHI - BG3998
DELPHI - BG3998C
DELPHI - BG3998C18B1
DELPHI - BG3998C19B1
ECORA - 4019722287442
EUROREPAR - 1618888580
EUROREPAR - 1636911580
EUROREPAR - 1684247780
EUROREPAR - 1686341180
EUROREPAR - 1687782280
FERODO - DDF1536
FERODO - DDF15361
FERODO - DDF1536C
FERODO - DDF1536C1
FERODO - DDF1536CD
FERODO - DDF1536DLC1D
FERODO - DDF1536DRC1D
FERODO - DDF1536X
FTE - 9071028
FTE - 9081007
FTE - 9082591
FTE - BS7178
FTE - BS7178B
FTE - BS7178HB
HELLA - 355111911
HELLA - 355111921
HELLA - 355111922
HELLA - 355123581
HELLA - 355128421
HELLA - 530032960
HELLA - 8DD355111911
HELLA - 8DD355111921
HELLA - 8DD355111922
HELLA - 8DD355123581
HELLA - 8DD355128421
HELLA PAGID - 355111911
HELLA PAGID - 355111921
HELLA PAGID - 355111922
HELLA PAGID - 355123581
HELLA PAGID - 355128421
HELLA PAGID - 8DD355111911
HELLA PAGID - 8DD355111921
HELLA PAGID - 8DD355111922
HELLA PAGID - 8DD355123581
HELLA PAGID - 8DD355128421
JP Group - 1463104800
JURID - 562342JC
JURID - 562342JC1
METZGER - 6110166
MEYLE - 3155233059
MEYLE - 3155233059PD
MEYLE - 3835233059PD
MEYLE - MBD0800
MEYLE - MBD1594PD
OPTIMAL - BS7580
OPTIMAL - BS7580C
OPTIMAL - BS7580HC
PAGID - 54377
PAGID - 54377HC
PAGID - 54377NHC
PAGID - 54377PRO
TEXTAR - 92137700
TEXTAR - 92137703
TEXTAR - 92137705
TEXTAR - 98200137701
TOPRAN - 500947
TRUCKTEC AUTOMOTIVE - 0834074
TRW - DF4459
TRW - DF4459S
TRW - DF4459XSS
TRW - RCDI10160
VAICO - V2080055
VAICO - V2080055
VALEO - 197048
VALEO - 197234
ZIMMERMANN - 150342700
ZIMMERMANN - 150342720
ZIMMERMANN - 150342752
ZIMMERMANN - 150342753
ZIMMERMANN - 150342770
ZIMMERMANN - 150342772
ZIMMERMANN - 150342775
febi bilstein - 24468

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24096
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Article Number of recommended accessories: 82074500
Thickness [mm]: 20,3
Width 1 [mm]: 155,1
Width 2 [mm]: 154,6
Height [mm]: 63,9
Brake System: Teves
Weight [kg]: 2
Packaging length [cm]: 17
Packaging width [cm]: 12
Packaging height [cm]: 8,3

reference numbers - for comparison

ATE - 13046072232
ATE - 13047072232
ATE - 607223
ATE - LD7223
BLUE PRINT - ADBP420025
BMW - 2288856
BMW - 2288857
BMW - 34 11 6 777 772 / 34116777772
BMW - 34112288856
BMW - 34112288857
BMW - 34116771972
BMW - 34116797859
BMW - 6771972
BMW - 6777772
BMW - 6797859
BOSCH - 0986424621
BOSCH - 0986494117
BOSCH - 0986494118
BOSCH - 0986T14838
BREMBO - 07B31482
BREMBO - P06040
BREMBO - P06040
BREMBO - P06040N
BREMBO - P06040N
BREMBO - P06040X
BREMBO - P06040X
CHAMPION - 573187CH
DELPHI - LP1960
ECORA - 4019722276194
EUROREPAR - 1623061280
EUROREPAR - 1635140480
FERODO - FDB1773S
FERODO - FDB5178
FERODO - FDS1773
FERODO - FSL1773
FTE - 9001314
FTE - 9010625
FTE - BL2039A2
HELLA - 355011941
HELLA - 355031111
HELLA - 355032241
HELLA - 8DB355011941
HELLA - 8DB355031111
HELLA - 8DB355032241
HELLA PAGID - 355011941
HELLA PAGID - 355031111
HELLA PAGID - 355032241
HELLA PAGID - 8DB355011941
HELLA PAGID - 8DB355031111
HELLA PAGID - 8DB355032241
JURID - 573187J
JURID - 573187JAS
JURID - 573187JC
JURID - 57318JAS
MAGNETI MARELLI - 363700201509
MAGNETI MARELLI - 363700406040
MAGNETI MARELLI - 363702161369
MAGNETI MARELLI - T1509MM
MAGNETI MARELLI - T1509MM
METZGER - 1170203
OPTIMAL - 12538
OPTIMAL - BP12538
PAGID - T1509
PAGID - T1509
PAGID - T1509N
PAGID - T1509N
RAICAM - 6323
RAICAM - RA06323
TEXTAR - 24096 203 0 5 / 2409620305
TEXTAR - 2409601
TEXTAR - 2409604
TEXTAR - 2409681
TEXTAR - 7967D1061
TRW - GDB1662
TRW - GDB1810
TRW - TRH0918
TRW - TXH1061
VAICO - V208155
VAICO - V208155
VALEO - 302132
VALEO - 598640
VALEO - 601126
VALEO - 604096
VALEO - 670132
ZIMMERMANN - 240962001
febi bilstein - 16670

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24.8190-0284.2 / 24819002842
ATE - 620284
BMW - 34 35 6 792 559 / 34356792559
BMW - 6792559
BOSCH - 1987473513
BREMBO - A00435
BREMBO - A00435
Caripar - GBK 420 / GBK420
DELPHI - LZ0259
EUROREPAR - 1682478980
FERODO - FWI358
FTE - BZ1160WSET
HELLA - 355251761
HELLA - 8DK355251761
HELLA PAGID - 355251761
HELLA PAGID - 8DK 355 251-761 / 8DK355251761
HERTH+BUSS JAKOPARTS - 70608132
JURID - 581392
JURID - 581521
JURID - FWI358
METZGER - 1190243
MEYLE - 3145270011
MEYLE - MWS0074
OPTIMAL - WKT60022K
PAGID - P8587
PAGID - P8587
PAGID - P8587N
PAGID - P8587N
QUICK BRAKE - WS0324A
TEXTAR - 98043700
TEXTAR - 98043710
TRW - GIC268
TRW - GIC268CN
febi bilstein - 223305
febi bilstein - 37662
