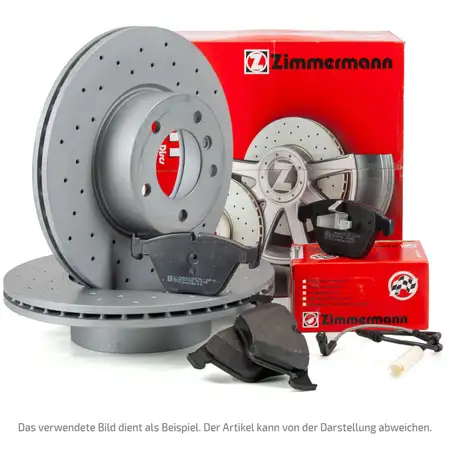

Zimmermann SPORT Brake Discs + Pads + Sensor for AUDI A4 B9, A5 F5, A6 C8, A7 4K, Q5 (Front)

Zimmermann SPORT Brake Discs + Pads + Sensor for AUDI A4 B9, A5 F5, A6 C8, A7 4K, Q5 (Front)

ZIMMERMANN CARIPAR

Item No.: PKT772W854
Manufacturer: ZIMMERMANN, CARIPAR
part number: 100.3378.52, 22402.160.1, GBK 807

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 1x Warning Contact, brake pad wear Piece - CARIPAR

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 338
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 68
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 28
  • Processing: High-carbon
  • Version: Sport
  • Brake Disc Thickness [mm]: 30
  • Weight [kg]: 11,3
  • Height [mm]: 57
reference numbers - for comparison
  • ATE - 24013002451
  • ATE - 430245
  • AUDI - 80A615301A
  • AUDI - 80A615301F
  • AUDI - 8W0615301AB
  • AUDI - 8W0615301P
  • AUDI - L80D615301
  • AUDI - L80D615301
  • AUDI - L8W0615301AB
  • AUDI - L8W0615301AB
  • BLUE PRINT - ADV1843107
  • BOSCH - 0986479F25
  • BOSCH - 0986479K03
  • BREMBO - 09D05911
  • BREMBO - 09D0591X
  • DELPHI - BG9181C
  • DELPHI - BG9338C
  • DELPHI - BG9338C18B1
  • DELPHI - BG9338C19B1
  • EUROREPAR - 1671240480
  • EUROREPAR - 1684263380
  • FERODO - DDF2597C1
  • FERODO - DDF2869C1D
  • HELLA - 355125171
  • HELLA - 8DD355125171
  • HELLA PAGID - 355125171
  • HELLA PAGID - 8DD355125171
  • HERTH+BUSS JAKOPARTS - J3300853
  • HERTH+BUSS JAKOPARTS - J3300853
  • JP Group - 1163119700
  • JURID - 563175JC1
  • MAGNETI MARELLI - 360406183601
  • METZGER - 6110950
  • METZGER - 6110951
  • MEYLE - 1835211131PD
  • MEYLE - MBD2323PD
  • OPTIMAL - BS0232HC
  • PAGID - 55826HC
  • PAGID - 55826NHC
  • SEAT - 80A615301F
  • SEAT - 8W0615301P
  • SKODA - 80A615301F
  • SKODA - 8W0615301P
  • TEXTAR - 98200282601
  • TOPRAN - 631153
  • TRUCKTEC AUTOMOTIVE - 0735324
  • TRW - DF8332S
  • TRW - DF8332SL
  • TRW - DF8332SR
  • VAICO - V1040094
  • VAICO - V1040094
  • VALEO - 672796
  • VOLKSWAGEN - 80A615301F
  • VOLKSWAGEN - 8W0615301P
  • ZIMMERMANN - 100.3378.52 / 100337852
  • ZIMMERMANN - 100337820
  • ZIMMERMANN - 100337852
  • ZIMMERMANN - 4250238767190
  • febi bilstein - 107506
item specifications
  • Component: Braking System
  • Width 1 [mm]: 252
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 22402
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with counterweights
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 16
  • Height 2 [mm]: 99
  • directional:
  • Width 2 [mm]: 210
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
  • Height 1 [mm]: 99
reference numbers - for comparison
  • ATE - 13.0460-7329.2 / 13046073292
  • AUDI - 4K0 698 151 AB / 4K0698151AB
  • AUDI - 4K0 698 151 E / 4K0698151E
  • AUDI - 4K1 698 151 AB / 4K1698151AB
  • AUDI - 8W0 698 151 AC / 8W0698151AC
  • AUDI - 8W0 698 151 AC / 8W0698151AC
  • AUDI - 8W0 698 151 AD / 8W0698151AD
  • AUDI - 8W0 698 151 AQ / 8W0698151AQ
  • AUDI - 8W0 698 151 BB / 8W0698151BB
  • AUDI - 8W0 698 151 BC / 8W0698151BC
  • AUDI - 8W0 698 151 L / 8W0698151L
  • AUDI - 8W0 698 151 M / 8W0698151M
  • BOSCH - 0 986 424 432 / 0986424432
  • BREMBO - P 85 164 / P85164
  • BREMBO - P 85 164 / P85164
  • BREMBO - P 85 164X / P85164X
  • BREMBO - P 85 164X / P85164X
  • FERODO - FDB4616
  • FERODO - FDB5101
  • FERODO - FDB5291
  • HELLA PAGID - 8DB 355 025-811 / 8DB355025811
  • JURID - 573627J
  • RAICAM - RA.1336.0 / RA13360
  • TEXTAR - 2240201
  • TRW - GDB2126
  • VAG - 8W0 698 151 AC / 8W0698151AC
  • ZIMMERMANN - 22402
  • ZIMMERMANN - 22402.160.1 / 224021601
  • ZIMMERMANN - 22402.960.1 / 224029601
  • ZIMMERMANN - 22403
  • ZIMMERMANN - 22404
  • ZIMMERMANN - 22405
  • ZIMMERMANN - 4250238779834
  • ZIMMERMANN - D1897-9125 / D18979125
  • ZIMMERMANN - D1897-9125 / D18979125
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle Left
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24819009752
  • ATE - 620975
  • AUDI - 8W0 615 121 H / 8W0615121H
  • AUDI - 8W0615121H
  • BOSCH - 1987473604
  • BREMBO - A00639
  • BREMBO - A00639
  • CHAMPION - FWI453
  • Caripar - GBK 807 / GBK807
  • DELPHI - LZ0327
  • FERODO - FWI453
  • HELLA - 355252911
  • HELLA - 8DK355252911
  • HELLA PAGID - 355252911
  • HELLA PAGID - 8DK355252911
  • JURID - FWI453
  • METZGER - 1190295
  • MEYLE - 1145270012
  • MEYLE - MWS0164
  • PAGID - P8712
  • PAGID - P8712
  • PAGID - P8712N
  • PAGID - P8712N
  • QUICK BRAKE - WS0403A
  • SEAT - 8W0615121H
  • SKODA - 8W0615121H
  • TEXTAR - 98057310
  • TRW - GIC631
  • TRW - GIC631CN
  • VAG - 8W0 615 121 H / 8W0615121H
  • VOLKSWAGEN - 8W0615121H
  • febi bilstein - 172598
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
