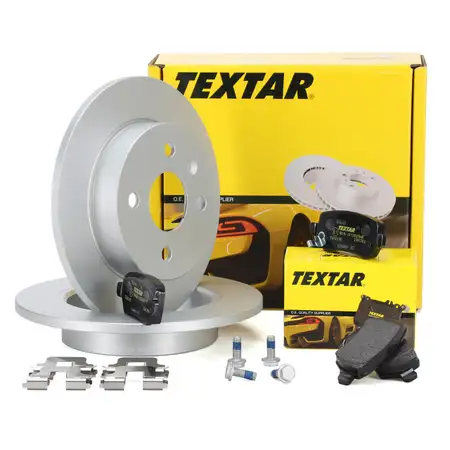

TEXTAR Brake Discs + Pads for OPEL Astra G Combo Meriva A (5-hole rear)

TEXTAR Brake Discs + Pads for OPEL Astra G Combo Meriva A (5-hole rear)

Item No.: PKT562W157
Manufacturer: TEXTAR
part number: 92092003, 2341703

Items included:

2x Brake Disc Piece - TEXTAR 92092003
1x Brake Pad Set, disc brake Set - TEXTAR 2341703

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: solid
Fitting Position: Rear Axle
Outer Diameter [mm]: 240
Hole Arrangement/Number: 04/05
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 42
Brake Disc Thickness [mm]: 10
Minimum thickness [mm]: 8
Inner Diameter [mm]: 141
Weight [kg]: 3,1
Centering Diameter [mm]: 57
Wheel Bolt Bore Diameter [mm]: 14,2
Packaging length [cm]: 24,8
Packaging width [cm]: 24,8
Packaging height [cm]: 10,5

reference numbers - for comparison

ATE - 24011002511
ATE - 24031002511
ATE - 410251
ATE - 510251
BLUE PRINT - ADW194315
BOSCH - 0986478882
BOSCH - 0986479918
BOSCH - 0986479S52
BOSCH - 0986T15246
BOSCH - BD781
BOSCH - F026A00986
BOSCH - F026A00986
BREMBO - 08762610
BREMBO - 08762611
BREMBO - 08762614
BREMBO - 0876261X
BREMBO - 08762675
CHAMPION - 562071CH
CHEVROLET - 9117771
DELPHI - BG3403
ECORA - 4019722301124
EUROREPAR - 1618874780
EUROREPAR - 1686320680
FERODO - DDF1043
FERODO - DDF10431
FERODO - DDF1043C
FERODO - DDF1043C1
FERODO - DDF1043X
FTE - 9072181
FTE - 9082094
FTE - 9082548
FTE - BS4815
FTE - BS4815B
FTE - BS4815HB
HELLA - 355106081
HELLA - 355106091
HELLA - 8DD355106081
HELLA - 8DD355106091
HELLA PAGID - 355106081
HELLA PAGID - 355106091
HELLA PAGID - 8DD355106081
HELLA PAGID - 8DD355106091
HERTH+BUSS JAKOPARTS - J3310912
HERTH+BUSS JAKOPARTS - J3310912
JP Group - 1263202600
JURID - 562071J
JURID - 562071JC
JURID - 562071JC1
METZGER - 6110022
MEYLE - 6155230023
MEYLE - 6155230023PD
MEYLE - MBD2055
MEYLE - MBD2055PD
OPEL - 569108
OPEL - 569111
OPEL - 90498304
OPEL - 9117771
OPEL - 9196587
OPTIMAL - BS5700
OPTIMAL - BS5700C
PAGID - 52432
PAGID - 52432NC
PAGID - 52432PRO
TEXTAR - 92092000
TEXTAR - 92092003
TEXTAR - 98200092001
TOPRAN - 205525
TRW - DF4050
TRW - DF4050S
TRW - RPDI02010
VAICO - V4040027
VAICO - V4040027
VAICO - V4040031
VAICO - V4040031
VALEO - 186594
VALEO - 297594
VALEO - 672617
ZIMMERMANN - 430148400
ZIMMERMANN - 430148420
ZIMMERMANN - 430148452
ZIMMERMANN - 430148470
ZIMMERMANN - 430148472
ZIMMERMANN - 430148475
febi bilstein - 17212

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23417
Fitting Position: Rear Axle
Wear Warning Contact: with acoustic wear warning
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 15,2
Width [mm]: 95,5
Height [mm]: 42,8
Brake System: Lucas
Weight [kg]: 0,831
Observe assembly information:
Packaging length [cm]: 12,5
Packaging width [cm]: 8,1
Packaging height [cm]: 8

reference numbers - for comparison

ATE - 13046028682
ATE - 13047028682
ATE - 602868
ATE - LD2868
BLUE PRINT - ADG042116
BOSCH - 0986424646
BOSCH - 0986494654
BOSCH - 0986495218
BOSCH - 0986AB9284
BOSCH - 0986BB0848
BOSCH - 0986T10227
BOSCH - 0986TB2845
BOSCH - BC1362
BOSCH - BE1362
BOSCH - BE1362H
BOSCH - BP363
BOSCH - DB2034UL
BREMBO - 07B31521
BREMBO - P10013
BREMBO - P10013
BREMBO - P10013N
BREMBO - P10013N
BREMBO - P59038
BREMBO - P59038
BREMBO - P59038N
BREMBO - P59038N
BREMBO - P59038X
BREMBO - P59038X
CHAMPION - 573122CH
DELPHI - LP1681
DELPHI - LP1717
DELPHI - LP2188
DELPHI - LP2209
DELPHI - LP2853C
ECORA - 4019722267758
EUROREPAR - 1617258680
EUROREPAR - 1623063680
EUROREPAR - 1682305380
FERODO - FDB1521
FERODO - FDB1521W
FERODO - FQT1521
FTE - 9005434
FTE - 9010405
FTE - 9010406
FTE - BL1828A3
FTE - BL1828A4
FTE - BL1828B3
GENERAL MOTORS - 93169143
GENERAL MOTORS - 93170602
GENERAL MOTORS - 93176118
GENERAL MOTORS - 93179164
HELLA - 355011361
HELLA - 355018781
HELLA - 355030121
HELLA - 355032511
HELLA - 530032773
HELLA - 8DB355018781
HELLA - 8DB355030121
HELLA PAGID - 355011361
HELLA PAGID - 355018781
HELLA PAGID - 355030121
HELLA PAGID - 355032511
HELLA PAGID - 8DB355011361
HELLA PAGID - 8DB355018781
HELLA PAGID - 8DB355030121
HELLA PAGID - 8DB355032511
HERTH+BUSS JAKOPARTS - J3610525
HERTH+BUSS JAKOPARTS - J3610525
JP Group - 1263700110
JURID - 573122D
JURID - 573122J
KIA - 583021PA30
KIA - 58302A2A20
MAGNETI MARELLI - 323700002200
MAGNETI MARELLI - 323700004000
MAGNETI MARELLI - 363700201451
MAGNETI MARELLI - 363700205158
MAGNETI MARELLI - 363700410013
MAGNETI MARELLI - 363700459038
MAGNETI MARELLI - 363702161279
MAGNETI MARELLI - T1451MM
MAGNETI MARELLI - T1451MM
MAGNETI MARELLI - T5158MM
MAGNETI MARELLI - T5158MM
METZGER - 095702
METZGER - 1170004
MEYLE - 0252341715PD
MEYLE - 0252341715W
MEYLE - MBP0341
MEYLE - MBP0791PD
OPEL - 1605086
OPEL - 1605122
OPEL - 1605128
OPEL - 1605233
OPEL - 1605625
OPEL - 1605967
OPEL - 1605995
OPEL - 1688145180
OPEL - 93169164
OPEL - 93188727
OPEL - 93190577
OPEL - 95507655
OPTIMAL - 12264
OPTIMAL - 95702
OPTIMAL - BP12264
PAGID - T1451
PAGID - T1451
PAGID - T5158
PAGID - T5158
PAGID - T5158N
PAGID - T5158N
RAICAM - 8150
RAICAM - 8151
RAICAM - RA08150
RAICAM - RA08151
TEXTAR - 2341703
TEXTAR - 2341781
TEXTAR - 2341782
TEXTAR - 23654
TEXTAR - 23655
TEXTAR - 8471D1362
TEXTAR - 8471D1932
TEXTAR - 9287D2054
TRW - GDB1515
TRW - GDB1515DT
TRW - GDB1515DTE
TRW - GDB1831
TRW - TRH1362
VAICO - V408011
VAICO - V408011
VALEO - 301584
VALEO - 301584A
VALEO - 302410
VALEO - 302410A
VALEO - 598584
VALEO - 601701
VALEO - 670584
VALEO - 671851
VALEO - 872417
ZIMMERMANN - 234171501
ZIMMERMANN - 234171502
febi bilstein - 116153
febi bilstein - 16511
febi bilstein - 16512

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
