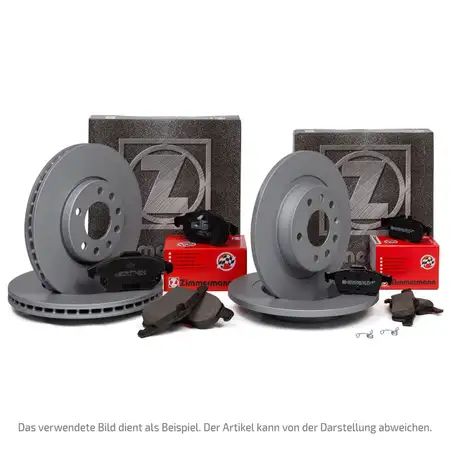

ZIMMERMANN Brake Discs + Pads for VW Polo 9N, SEAT Ibiza 3 & 4, SKODA 2 (front + rear)

ZIMMERMANN Brake Discs + Pads for VW Polo 9N, SEAT Ibiza 3 & 4, SKODA 2 (front + rear)

Item No.: PKT162W462
Manufacturer: ZIMMERMANN
part number: 100.1235.20, 23581.190.1, 100.1236.20, 20961.172.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 100.1235.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23581.190.1
2x Brake Disc Piece - ZIMMERMANN 100.1236.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 20961.172.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Outer Diameter [mm]: 288
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 34
Brake Disc Thickness [mm]: 25
Minimum thickness [mm]: 22
Machining: High-carbon
Weight [kg]: 7,16
Centering Diameter [mm]: 65
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0125-0113.1 / 24012501131
ATE - 24.0325-0113.1 / 24032501131
BOSCH - 0 986 478 867 / 0986478867
BOSCH - 0 986 479 914 / 0986479914
BREMBO - 09.7010.21 / 09701021
BREMBO - 09.7010.2X / 0970102X
BREMBO - 09.7010.76 / 09701076
ECORA - 4250238718116
FERODO - DDF1221C
HELLA - 8DD 355 107-611 / 8DD355107611
HELLA - 8DD 355 127-581 / 8DD355127581
JURID - 562041JC
RAICAM - RD00887
TEXTAR - 92106605
TRW - DF4027
VAG - 1J0 615 301 / 1J0615301
VAG - 1J0 615 301 C / 1J0615301C
VAG - 1J0 615 301 K / 1J0615301K
VAG - 1J0 615 301 R / 1J0615301R
VAG - 1J0 615 301 S / 1J0615301S
VAG - 6R0 615 301 A / 6R0615301A
VAG - JZW 615 301 D / JZW615301D
ZIMMERMANN - 100.1235.20 / 100123520
ZIMMERMANN - 100.1235.52 / 100123552

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23581
Fitting Position: Front Axle
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Width [mm]: 131
Height [mm]: 63
Brake System: LUCAS-GIRLING
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-2883.2 / 13046028832
BOSCH - 0 986 424 829 / 0986424829
BREMBO - P 85 057 / P85057
BREMBO - P 85 057 / P85057
ECORA - 4250238738817
FERODO - FDB1419
JURID - 573101J
TEXTAR - 2358101
TRW - GDB1414
VAG - 6Q0 698 151 A / 6Q0698151A
ZIMMERMANN - 23581
ZIMMERMANN - 23581.190.1 / 235811901

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: solid
Fitting Position: Rear Axle
Outer Diameter [mm]: 230
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 41
Brake Disc Thickness [mm]: 9
Minimum thickness [mm]: 7
Centering Diameter [mm]: 65
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0109-0123.1 / 24010901231
ATE - 24.0309-0123.1 / 24030901231
BOSCH - 0 986 478 868 / 0986478868
BOSCH - 0 986 479 K55 / 0986479K55
BREMBO - 08.7165.11 / 08716511
BREMBO - 08.7165.1X / 0871651X
BREMBO - 08.7165.75 / 08716575
BREMBO - 59.E114.02 / 59E11402
ECORA - 4250238718123
FERODO - DDF929C
HELLA PAGID - 8DD 355 105-411 / 8DD355105411
HERTH+BUSS JAKOPARTS - J3310800
HERTH+BUSS JAKOPARTS - J3310800
JURID - 562053JC
RAICAM - RD00888
TEXTAR - 92082503
TRW - DF2805
VAG - 1J0 615 601 / 1J0615601
VAG - 1J0 615 601 C / 1J0615601C
VAG - 1J0 615 601 N / 1J0615601N
VAG - 1J0 615 601 P / 1J0615601P
VAG - 2Q0 615 601 H / 2Q0615601H
VAG - 2Q0 615 601 K / 2Q0615601K
VAG - 5QD 615 601 A / 5QD615601A
VAG - 6QD 615 601 / 6QD615601
VAG - 6QD 615 601 A / 6QD615601A
VAG - L6QD 615 601 / L6QD615601
VAG - L6QD 615 601 / L6QD615601
VAG - L6QD 615 601 A / L6QD615601A
VAG - L6QD 615 601 A / L6QD615601A
VOLKSWAGEN - 2Q0 615 601 H / 2Q0615601H
ZIMMERMANN - 100.1236.20 / 100123620
ZIMMERMANN - 100.1236.52 / 100123652
ZIMMERMANN - 100.1236.53 / 100123653

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 20961
Fitting Position: Rear Axle
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 17
Width [mm]: 87
Height [mm]: 53
Brake System: LUCAS-GIRLING
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-2820.2 / 13046028202
ATE - 13.0470-2820.2 / 13047028202
BOSCH - 0 986 494 596 / 0986494596
BREMBO - P 85 020 / P85020
BREMBO - P 85 020 / P85020
BREMBO - P 85 020X / P85020X
BREMBO - P 85 020X / P85020X
CHERY - B11-BJ3502080 / B11BJ3502080
CHERY - B11-BJ3502080 / B11BJ3502080
CHERY - B116BH3502080
CHERY - B116BH3502080
CHRYSLER - B116BH3502080
CHRYSLER - B116BH3502080
CITROEN - 4254 67 / 425467
CITROEN / PEUGEOT - 16 070 832 80 / 1607083280
CITROEN / PEUGEOT - 16 114 563 80 / 1611456380
CITROEN / PEUGEOT - 16 168 726 80 / 1616872680
CITROEN / PEUGEOT - 16 231 805 80 / 1623180580
CITROEN / PEUGEOT - 4252.23 / 425223
CITROEN / PEUGEOT - 4252.32 / 425232
CITROEN / PEUGEOT - 4252.33 / 425233
CITROEN / PEUGEOT - 4252.41 / 425241
CITROEN / PEUGEOT - 4254.20 / 425420
CITROEN / PEUGEOT - 4254.67 / 425467
CITROEN / PEUGEOT - 4264.67 / 426467
CITROEN / PEUGEOT - E172204
CITROEN / PEUGEOT - E172204
ECORA - 4250238730507
FERODO - FDB1083
FERODO - FDB1788
FIAT - 9404252328
FIAT - 9467648988
FORD - 1 001 096 / 1001096
FORD - 1 027 640 / 1027640
HELLA PAGID - 8DB 355 018-111 / 8DB355018111
HERTH+BUSS JAKOPARTS - J3610807
HERTH+BUSS JAKOPARTS - J3610807
JURID - 571906J
JURID - 571906JC
JURID - 573032J
JURID - 573032JC
RAICAM - RA.0348.0 / RA03480
TEXTAR - 2355402
TRW - GDB1330
TRW - GDB1330DTE
VAG - 1E0 698 451 / 1E0698451
VAG - 1H0 698 451 / 1H0698451
VAG - 1H0 698 451 A / 1H0698451A
VAG - 1H0 698 451 D / 1H0698451D
VAG - 1H0 698 451 G / 1H0698451G
VAG - 1H0 698 451 H / 1H0698451H
VAG - 1J0 698 451 / 1J0698451
VAG - 1J0 698 451 B / 1J0698451B
VAG - 1J0 698 451 D / 1J0698451D
VAG - 1J0 698 451 E / 1J0698451E
VAG - 1J0 698 451 F / 1J0698451F
VAG - 1J0 698 451 G / 1J0698451G
VAG - 1J0 698 451 H / 1J0698451H
VAG - 1J0 698 451 J / 1J0698451J
VAG - 1J0 698 451 K / 1J0698451K
VAG - 1J0 698 451 L / 1J0698451L
VAG - 1J0 698 451 M / 1J0698451M
VAG - 1J0 698 451 N / 1J0698451N
VAG - 1J0 698 451 P / 1J0698451P
VAG - 1J0 698 451 S / 1J0698451S
VAG - 1K0 698 451 A / 1K0698451A
VAG - 1K0 698 451 C / 1K0698451C
VAG - 1K0 698 451 J / 1K0698451J
VAG - 2Q0 698 451 / 2Q0698451
VAG - 2Q0 698 451 B / 2Q0698451B
VAG - 4B0 698 451 / 4B0698451
VAG - 4B0 698 451 B / 4B0698451B
VAG - 4B0 698 451 E / 4B0698451E
VAG - 4D0 698 451 C / 4D0698451C
VAG - 4D0 698 647 / 4D0698647
VAG - 5C0 698 451 / 5C0698451
VAG - 5C0 698 451 A / 5C0698451A
VAG - 5C0 698 451 D / 5C0698451D
VAG - 5K0 698 451 B / 5K0698451B
VAG - 5K0 698 451 E / 5K0698451E
VAG - 5Q0 698 451 E / 5Q0698451E
VAG - 6C0 698 451 A / 6C0698451A
VAG - 6X0 698 451 / 6X0698451
VAG - 6X0 698 451 A / 6X0698451A
VAG - 7M0 698 451 / 7M0698451
VAG - 8E0 698 451 A / 8E0698451A
VAG - 8E0 698 451 B / 8E0698451B
VAG - 8E0 698 451 D / 8E0698451D
VAG - 8E0 698 451 K / 8E0698451K
VOLKSWAGEN - 5Q0 698 451 E / 5Q0698451E
ZIMMERMANN - 20961.172.1 / 209611721
ZIMMERMANN - 20961.972.1 / 209619721
ZIMMERMANN - 23554
ZIMMERMANN - D1017-7920 / D10177920
ZIMMERMANN - D1017-7920 / D10177920
ZIMMERMANN - D1112-7773 / D11127773
ZIMMERMANN - D1112-7773 / D11127773
ZIMMERMANN - D340-7335 / D3407335
ZIMMERMANN - D340-7335 / D3407335
