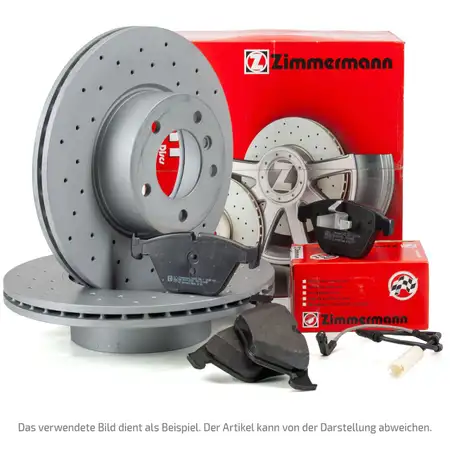

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E81, E87, 3 Series E90 (March 2010 and later) – Front

ZIMMERMANN

CARIPAR

Item No.: PKT262W174
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3424.52, 23935.175.1, GBK 420

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
1x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 120
Outer Diameter [mm]: 292
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 79
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 20,4
Processing: High-carbon
Version: Sport
Brake Disc Thickness [mm]: 22
Weight [kg]: 7
Height [mm]: 73

reference numbers - for comparison

ATE - 24.0122-0238.1 / 24012202381
ATE - 24.0322-0238.1 / 24032202381
BMW - 3411 6 764 641 / 34116764641
BMW - 3411 6 854 997 / 34116854997
BMW - 6 764 641 / 6764641
BMW - 6 854 997 / 6854997
BOSCH - 0 986 479 214 / 0986479214
BREMBO - 09.9752.11 / 09975211
BREMBO - 09.9752.14 / 09975214
BREMBO - 09.9752.1X / 0997521X
BREMBO - 09.9752.75 / 09975275
DELPHI - BG3900C
FERODO - DDF1229C
HELLA PAGID - 8DD 355 111-241 / 8DD355111241
HELLA PAGID - 8DD 355 128-341 / 8DD355128341
JURID - 562317JC
TEXTAR - 92132805
TRW - DF4449
VALEO - 186817
VALEO - 672505
ZIMMERMANN - 150.3424.20 / 150342420
ZIMMERMANN - 150.3424.32 / 150342432
ZIMMERMANN - 150.3424.52 / 150342452
ZIMMERMANN - 150.3424.53 / 150342453
ZIMMERMANN - 4250238750727

item specifications

Component: Braking System
Width 1 [mm]: 149
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 23935
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 18
Width 2 [mm]: 150
Height [mm]: 58
Brake System: ATE
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13.0460-7215.2 / 13046072152
ATE - 607215
BMW - 2 288 849 / 2288849
BMW - 2 288 851 / 2288851
BMW - 3411 2 288 849 / 34112288849
BMW - 3411 2 288 851 / 34112288851
BMW - 3411 6 767 147 / 34116767147
BMW - 3411 6 767 149 / 34116767149
BMW - 3411 6 769 763 / 34116769763
BMW - 3411 6 769 951 / 34116769951
BMW - 6 767 147 / 6767147
BMW - 6 767 149 / 6767149
BMW - 6 769 763 / 6769763
BMW - 6 769 951 / 6769951
BOSCH - 0 986 494 096 / 0986494096
BREMBO - P 06 035 / P06035
BREMBO - P 06 035 / P06035
FERODO - FDB1751
HELLA PAGID - 8DB 355 011-281 / 8DB355011281
JURID - 573138J
RAICAM - RA.0853.0 / RA08530
TEXTAR - 2393501
TRW - GDB1625
ZIMMERMANN - 23935
ZIMMERMANN - 23935.175.1 / 239351751
ZIMMERMANN - 23999
ZIMMERMANN - 4250238739982

item specifications

Component: Braking System
Fitting Position: Front Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
